Chapter 2 Hardware Installation
Chapter 2

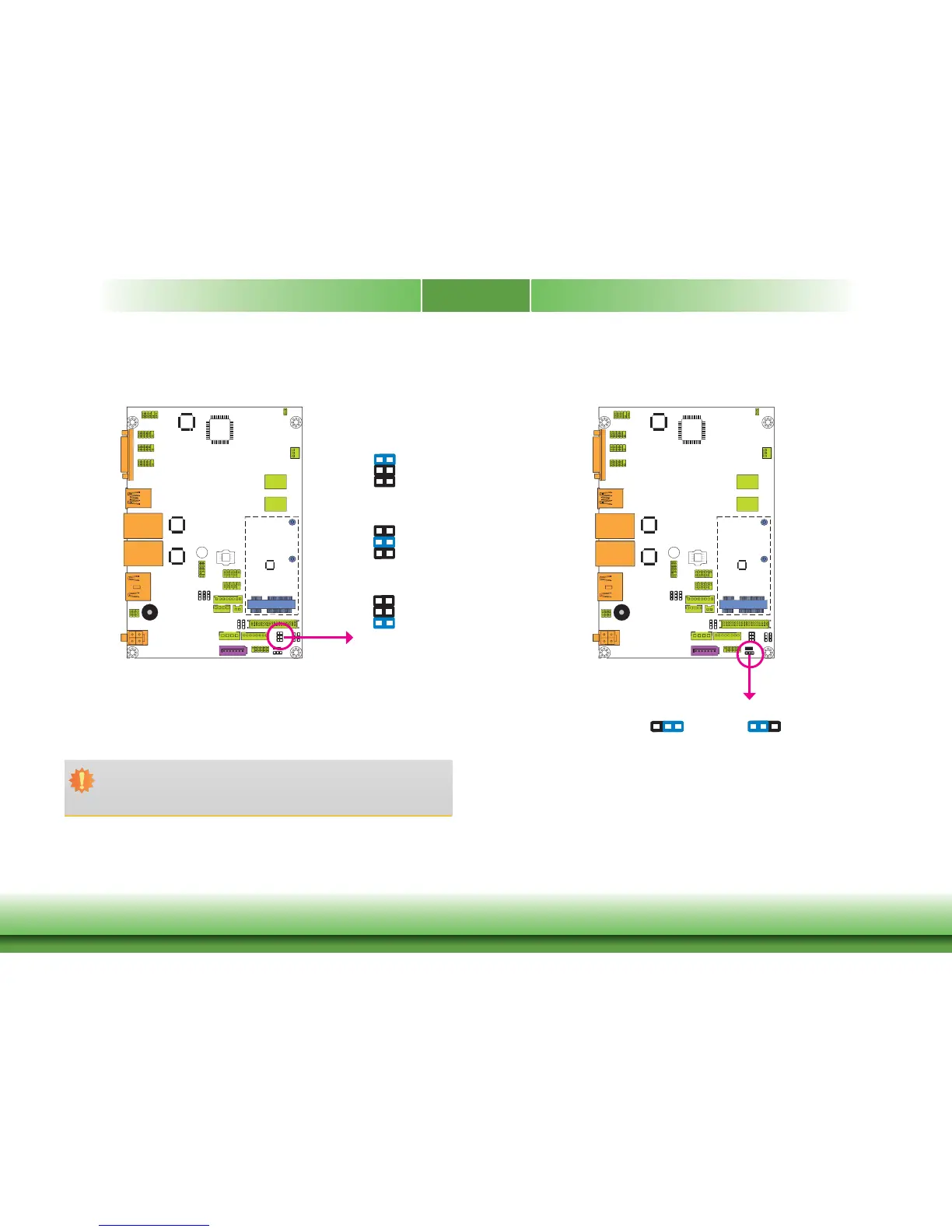

LCD/Inverter Power Select
2-3 On: +5V1-2 On: +12V
(default)
3
12
312
JP9 is used to select the power level of LVDS LCD inverter connector.
JP9
Panel Power Select
JP8 is used to select the power supplied with the LCD panel.
Important:
Before powering-on the system, make sure that the power settings of JP8 match the
LCD panel’s specification. Selecting the incorrect voltage will seriously damage the
LCD panel.
1-2 On: +12V
3-4 On:+5V
5-6 On: +3.3V
(default)
JP8
1
3
5
2
4
6
1
3
5
2
4
6
1
3
5
2
4
6
