7.2 Bluetooth
®
LE Test Setup
P0_5 can be used with 1-wire UART to test RF performance of DA14531.
Turn on Pin1 and 2 of SW3 to use UART and turn off Pin7 and 8 of SW7.

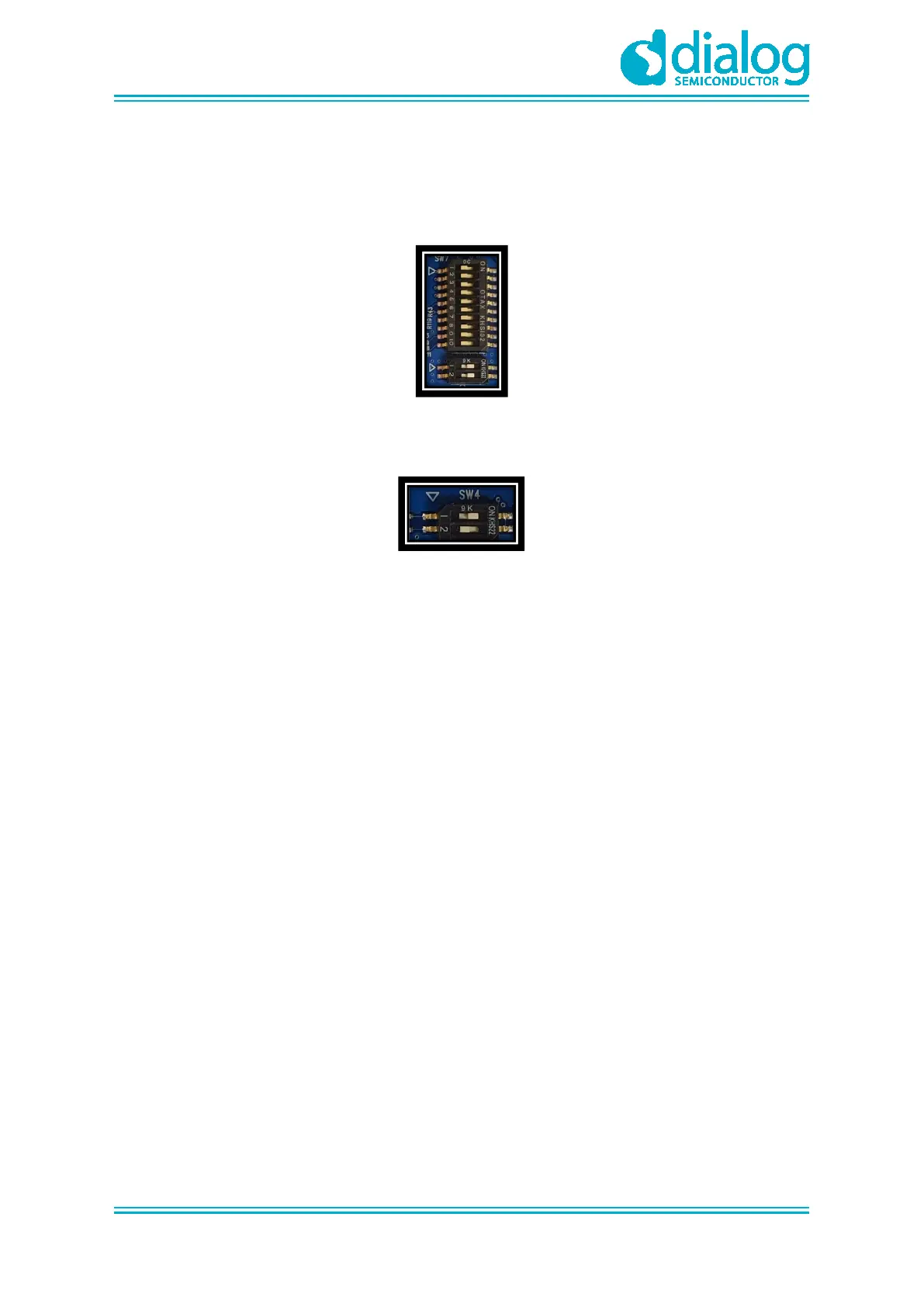

Figure 12: SW3 and SW7 Set to Use SmartSnippets
SW4 can control RF switch. Turn on Pin1 of SW4 to control RF switch to Bluetooth
®
LE RF path.
Figure 13: SW4 Set to Use Bluetooth
®
LE RF Path
