MODEL BMG-535 GRINDER
SECTION 3 GENERAL
15
OPERATING MANUAL
APRIL 2009
Grinding & Polishing

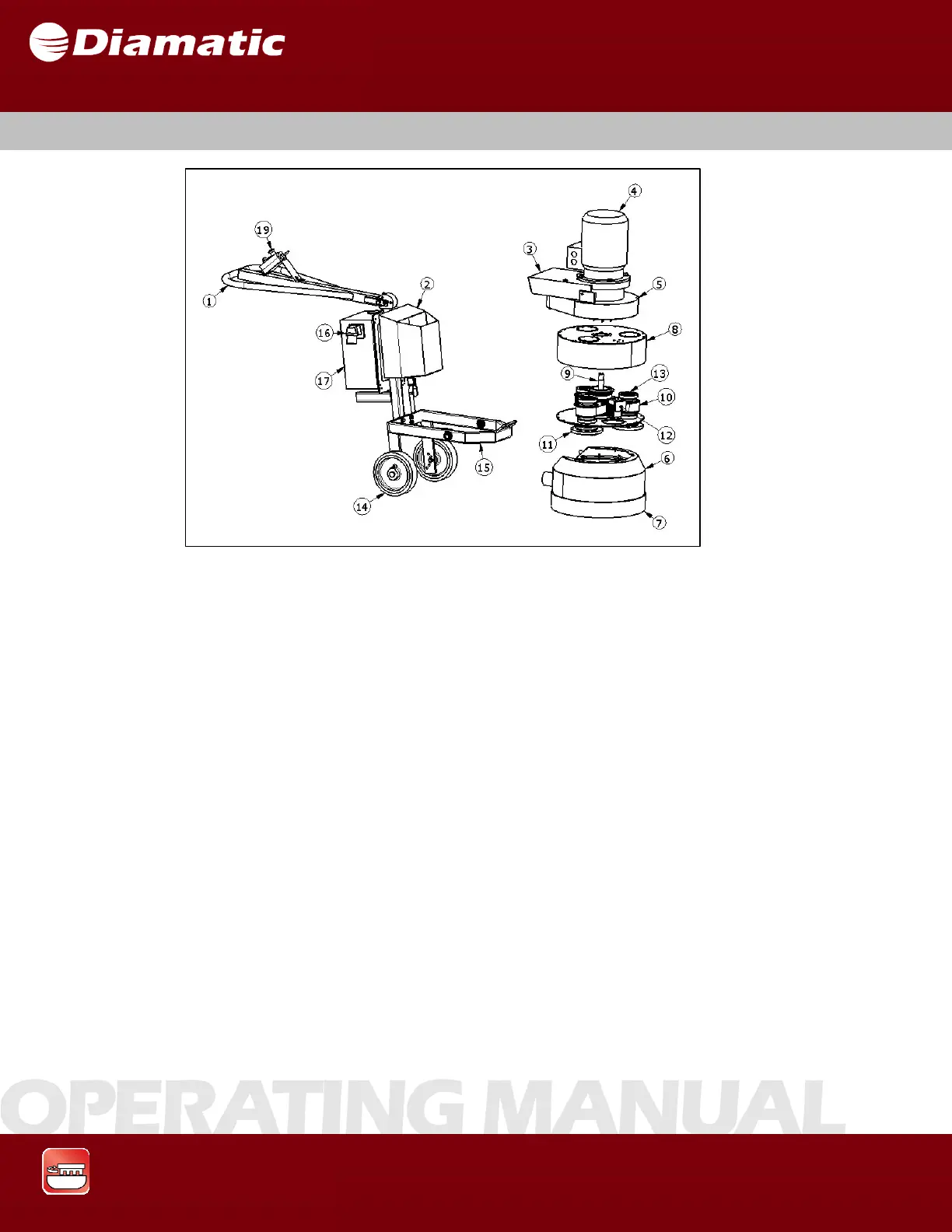

Fig. 3.1
1 Steering Handle 8 Lower Housing 15 Lower Frame
2 Water Tank 9 Center Pulley 16 Electrical Plug
3 Cover, Upper Part 10 Lower Belt 17 Control Panel
4 Motor 11 Diamond Tool Holders 18 Safety Switch
5 Motor Mount Plate 12 Lower Belt Tensioner
19
Pushbutton
6 Cover Housing 13 Pulley
7 Dust Control Seal 14 Wheel
The BMG-535 has a working width of 535 mm and gives excellent performance
due to its economic efficiency and easy handling.
The machine is capable of leveling uneven and undulating floors.
This process is suitable for an optimization of surfaces prior to blast
cleaning.
Alternately, the machine can be used to smooth floor surfaces as preparation for
coatings to be applied.
Depending on the application the diamond disc holder can be fitted with several
different types of diamond-grinding discs.
