MODEL BMG-535 GRINDER
SECTION 3 GENERAL
17
OPERATING MANUAL
APRIL 2009
Grinding & Polishing
The Pushbutton mounted on the Steering Handle is used to control all elements
of the machine. The Control Panel contains the main disconnect, safety switch,
and hour meter.

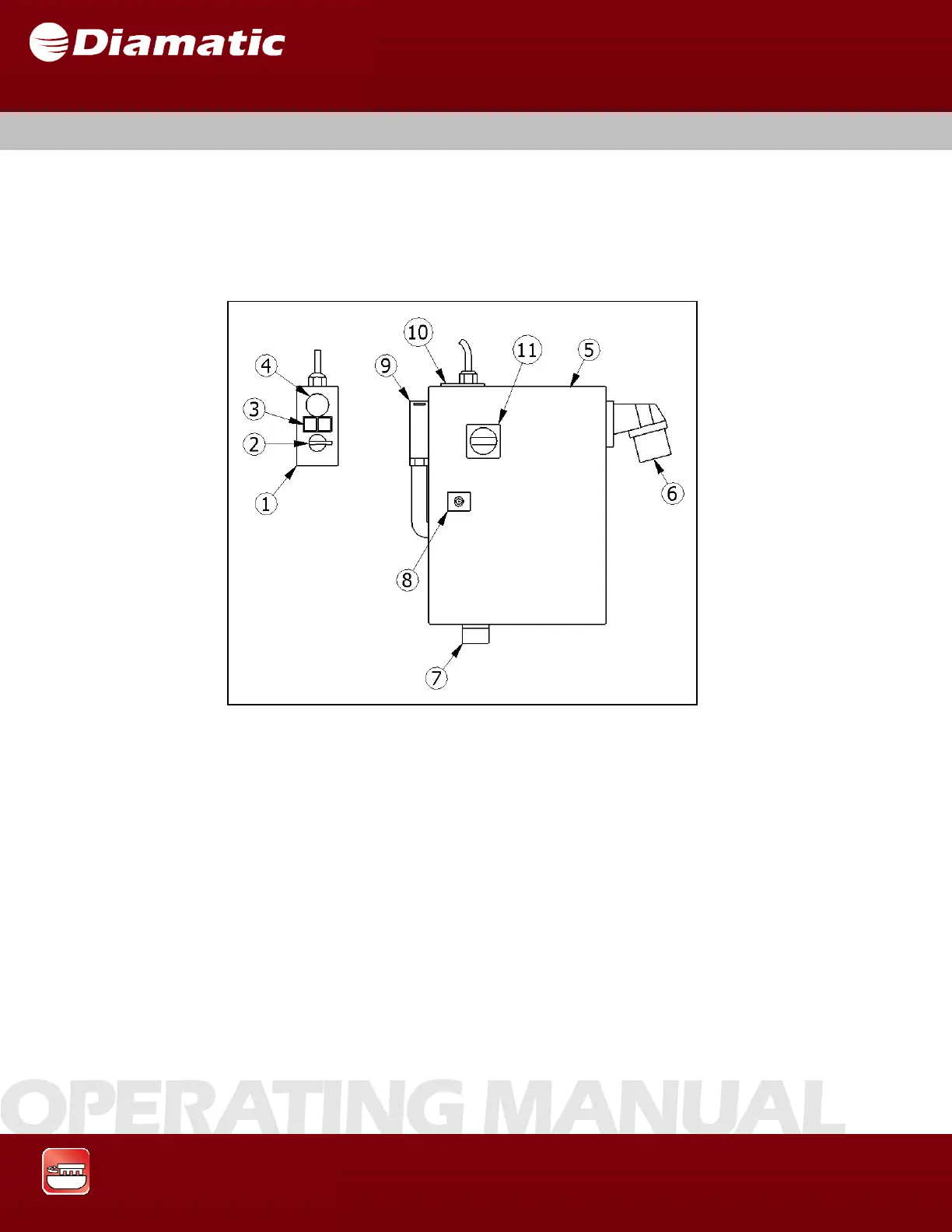

Fig. 3.3
1 Pushbutton Enclosure 5 Panel Enclosure 9 Safety Switch
2 FWD/REV Switch 6 Panel Plug 10 Hour Counter
3 Start/Stop Buttons 7 Motor Plug 11 Main Disconnect Switc
4 Emergency Stop 8 Panel Lock
Start/Stop Buttons
The green start button turns on the machine. The red stop button turns off the
machine.
3.5 ELECTRIC COMPONENTS
