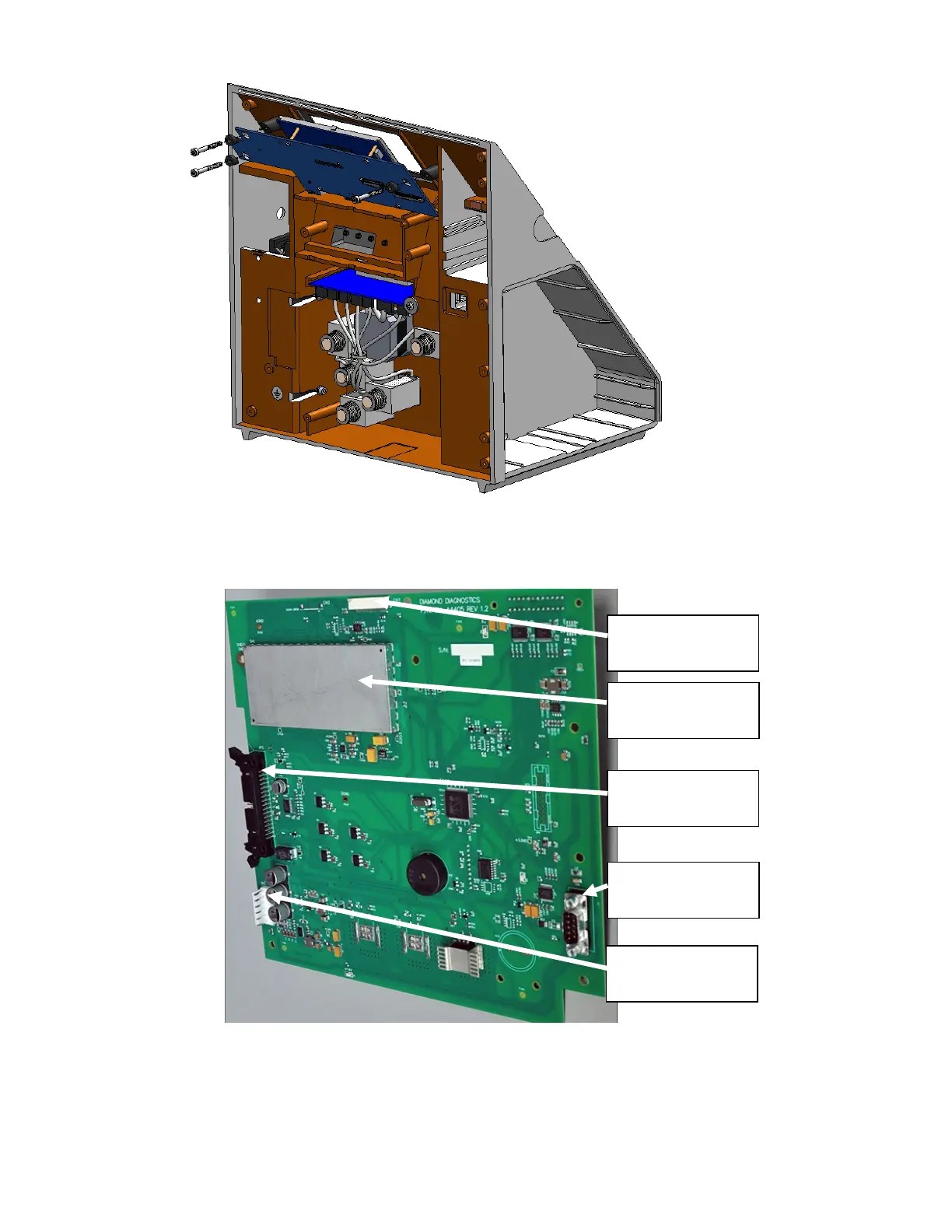

Figure 1-17 Front Case Assembly, No CPU Board
9. Lay the board on an ESD mat or packaging.
Figure 1-18 CPU Board, Back
Shield
Display Cable
Connector
Valve Board
Connector
Power Cable
Connector
RS232 Serial
Port
