ECO 9099 SOP05-5090F Rev.00 Effective Date: 12/20/18 Page 21 of 58

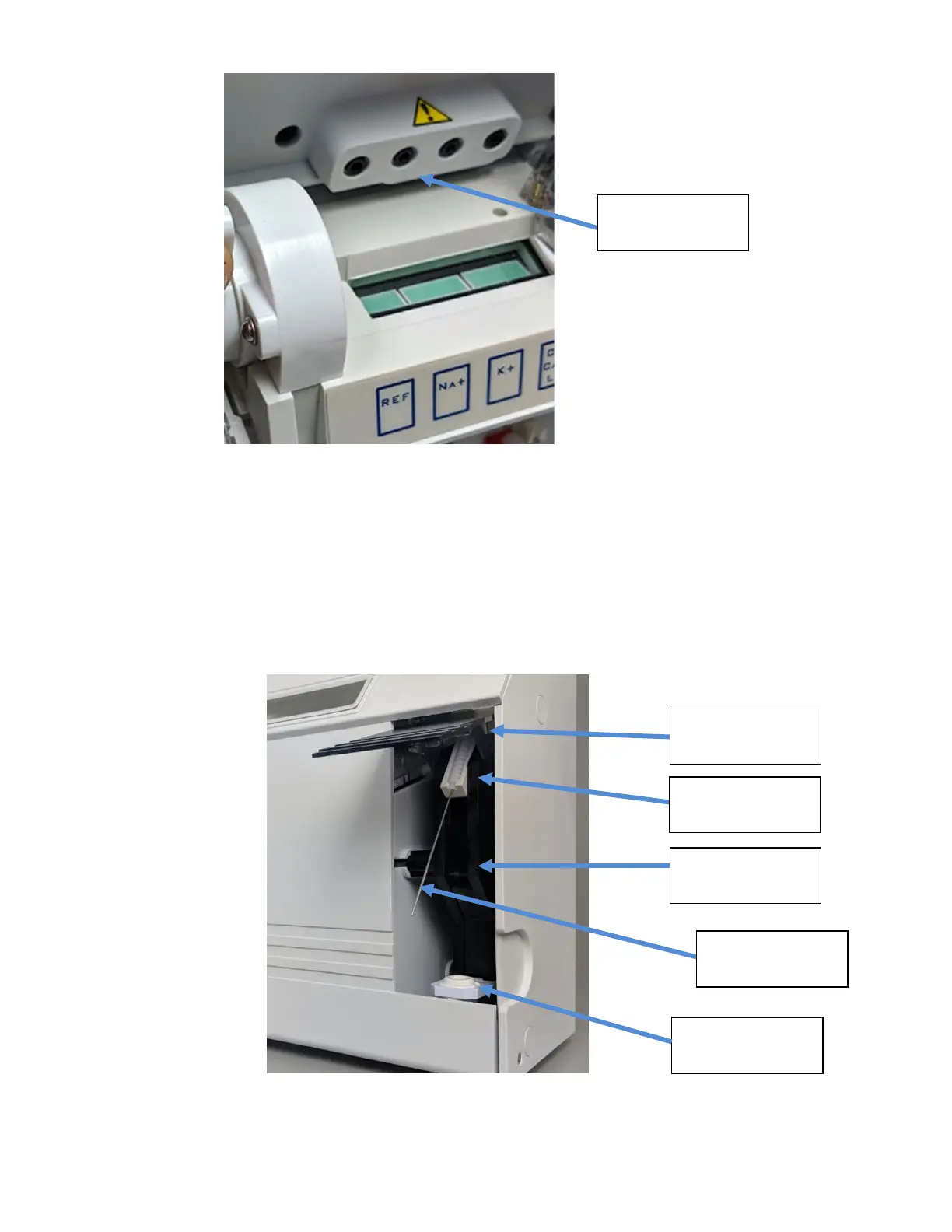

Figure 1-20 Electrode Mating Holes
8. If pins are not all visible, adjust the position of the CPU board.
9. When all pins are visible, tighten all screws without over tightening.
1.3.1.6. Aspiration Assembly
This module is comprised primarily of two subassemblies, the Aspiration Sub-Assembly and the
Sample Probe.
Figure 1-21 Aspiration Assembly
Sample Probe
Fill Port
White Sample
Probe Holder Block
Sample Door
Aspiration
Sub-assembly
5 Electrode Pin
Mating Holes
