Connecting the aria 2

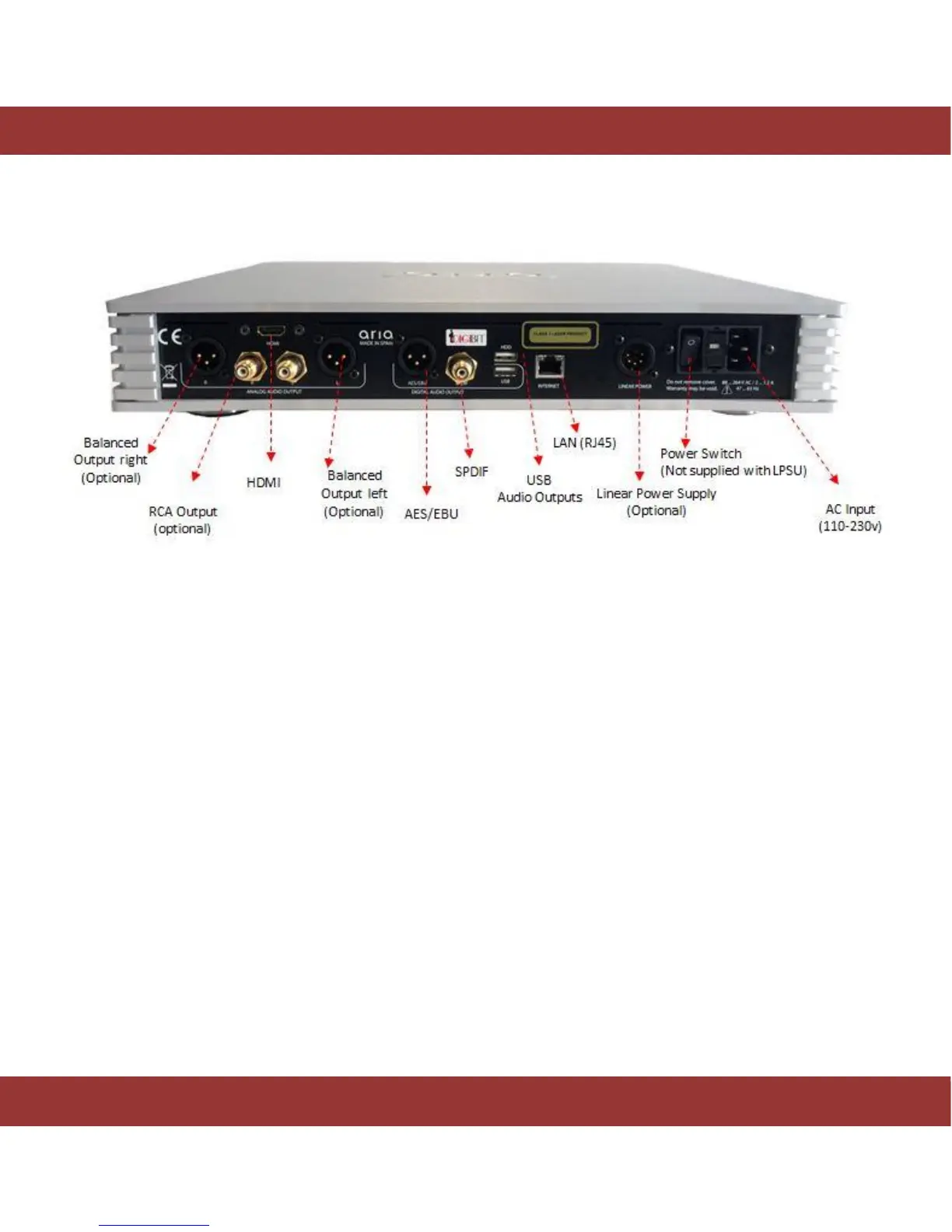

Figure 2. Rear panel
1. Connect the AC cable, (only for aria2 w/o external linear power supply)
2. Connect a LAN RJ45 cable to the LAN port. An internet connection is required for
ripping and future internet services. The aria is preconfigured for dynamic IP (the most
common). If you have a static IP address, contact your installer.
3. Connect any of the digital audio outputs to your preamplifier or DAC: These are the
available outputs:
a. SPDIF (RCA)
b. AES/EBU (XLR)
c. USB digital audio output: Connect to a DAC using a 2.0 USB cable. You may
need to install some specific drivers for Win 10 on the aria for your DAC
(your dealer can do that for you when installing the aria at home or
remotely)
