13
- Fixing points
- Optional fastening points
ATTENTION: It is very important to check, during installation, the doors'
alignment when closed. The distance must be the same, from the door's top
to its bottom.
ATTENTION: Check the dFlow model being installed and make sure the
gateway span is correct (there are two models: 500 and 900).
1600
250
250
320
320
230
230
(62.99")
(12.59")
(9.84")
(37.007"/21.259")
(9.84")(9.05")
Cable passage
280
280
220
220
220
190
190
60
90
160
(11.02")
(11.02")
(8.66") (8.66")
(8.66")
(3.54")
(6.29")
(22.36")
(7.48")
(7.48")
(9.05")
(12.59")
940/540
1010/610
1100/700
(39.763"/24.015")
(43,307"/27.559")
TIP:
To tighten the screws, use a long extensor tool.
INFORMATION: dFlow’s measures are shown in millimeters and
(inches).

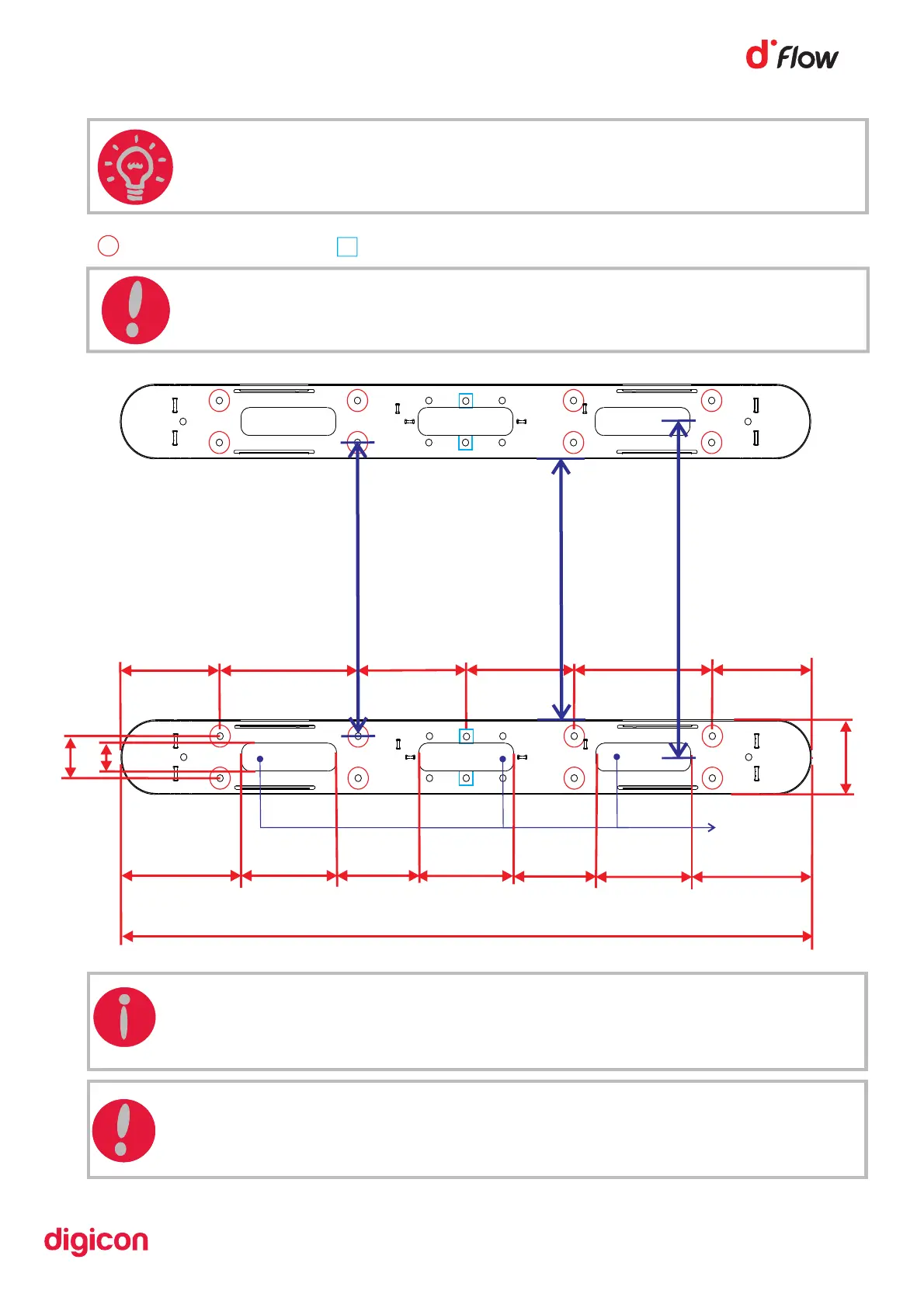

Figure 03
