14

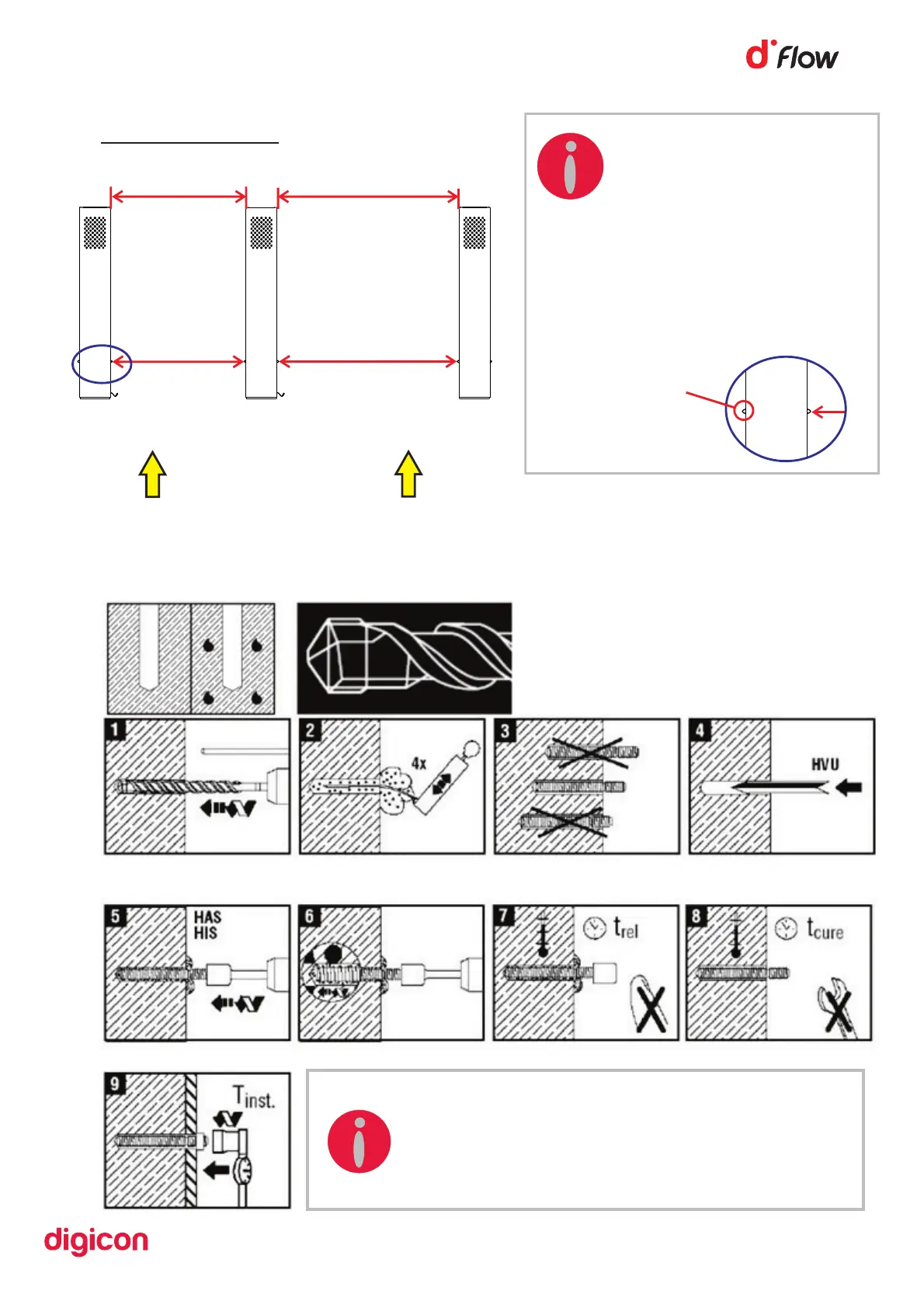

Passage free span:
Transmitter
Receiver/Transmitter
Receiver
Figure 04
With the ratchet fastening holes, install the fastening threaded bars according to
the figure below. Digicon recommends using Hilti’s capsule chemical anchoring
system (www.hilti.com).
INFORMATION: Chemical fastening is
recommended, but if preferred, use parabolt,
make sure that the floor/ground is adequate..
940mm
920mm
(37.007")
540mm
520mm
(21.259")
(20.472")
(36.220")
INFORMATION:
Ÿ D i g i c o n m e e t s t h e
regulation ABNT NBR 9050
f o r A c c e s s i b i l i t y t o
buildings, furniture, space,
and urban furniture.
Bumper
Ÿ Each dFlow gateway has 2 bumpers
(left and right) which protect the
equipment against mechanical shocks.
The bumpers, with 10mm each, reduce
the clear width of the gateway from
940/540mm to 920/520mm in the
operating area only.
