DR5013 DIGIREVERSE

P 26

www.digikeijs.com

® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz

Stand 2021-07-06

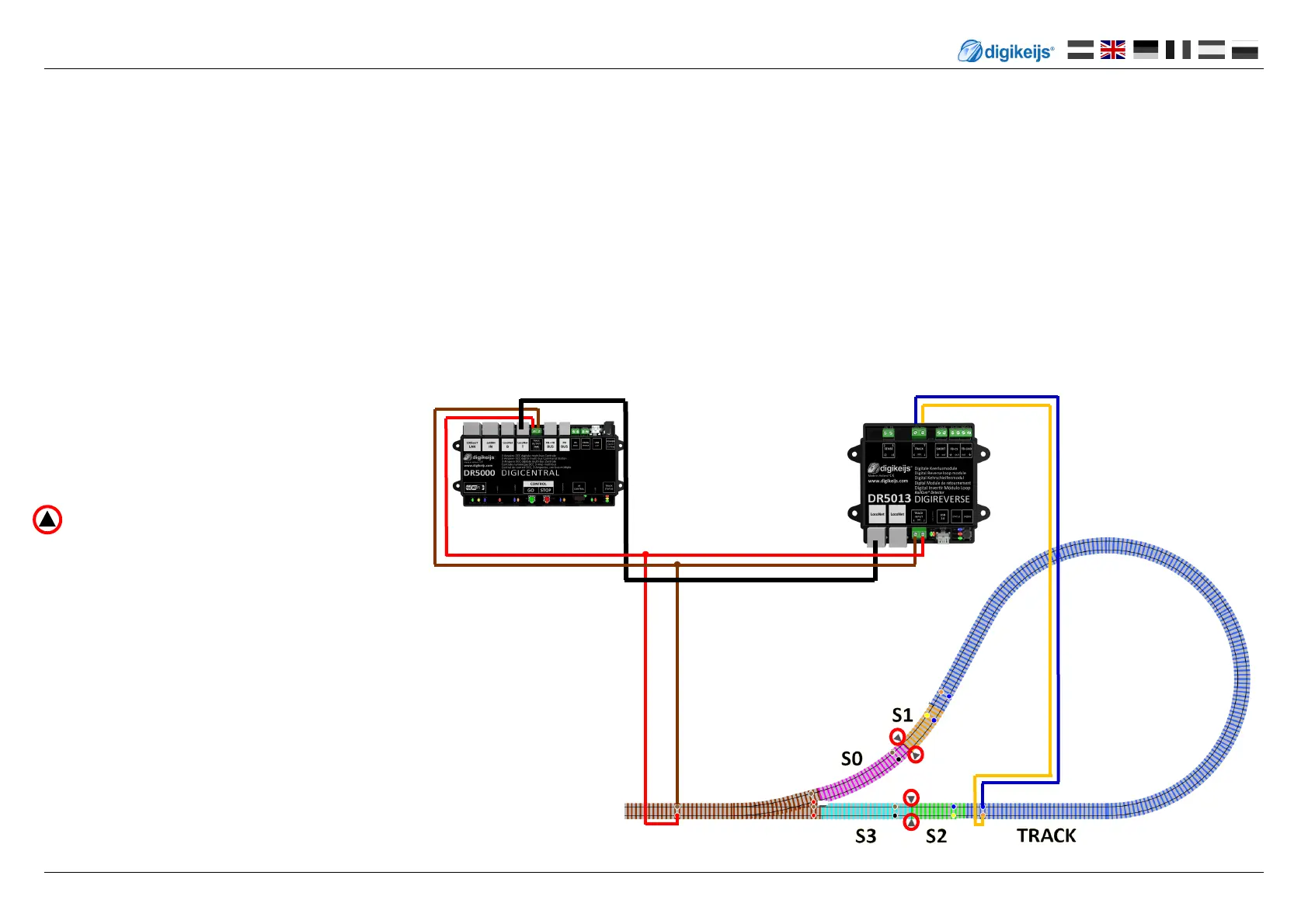

Terminal assignment:

S0 <not used>

S1 <not used>

S2 <not used>

S3 <not used>

Track reversing tracks

Necessary track separaon

5.2 DR5013 short circuit detecon and LocoNet® connecon®

This connecon example shows the use of the DR5013 with short-circuit detecon. The entry/exit turnout must be switched manually or with a control program. Via Lo-

coNet® various informaon (Railcom® informaon, short-circuit message, etc.) is transmied to the control centre and can be evaluated accordingly.

Funconality:

The turnout is e.g. bent: As soon as the locomove reaches the two-sided separaon point, the DR5013 detects this and switches the polarity of the reversing loop so that

it corresponds to the entrance. As soon as the locomove reaches the area of the reversing loop (track), it is reported as occupied to the control centre via LocoNet® with

the integrated occupancy detector and can, for example, be evaluated with a control program. At the same me, the Railcom® data of the locomove (address, QoS mes-

sages, etc.) are read out in the enre reversing loop track and also reported to the control centre. The locomove drives in the direcon of the exit. As soon as the locomo-

ve crosses the separaon point at the exit, the DR5013 detects this and switches the polarity of the reversing loop to match the polarity of the exit. The turnout must be

switched manually or via a control program. It may be necessary to add further feedback signals here. It may be necessary to add switching decoders and further feedback

modules for switch control and evaluaon of the external feedback connecons.

Here we describe which sengs are to be made in the DR5013 cong tool.

Sensor track sengs:

The feedback sensors sensor track S0 to S3 are not required for short-circuit

detecon. If short-circuit detecon is used, a "0" must be entered for the

sensor tracks (S0,S1,S2 and S3) in the sengs item 4.9.

Turnout mode:

The turnout mode must be set to O here. The turnout must be switched

externally.

Turnout status:

Both sengs are possible for the basic posion of the turnout.
