Digikeijs DR5013 DIGIREVERSE User Manual

DR5013 DIGIREVERSE
P 28
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
Stand 2021-07-06

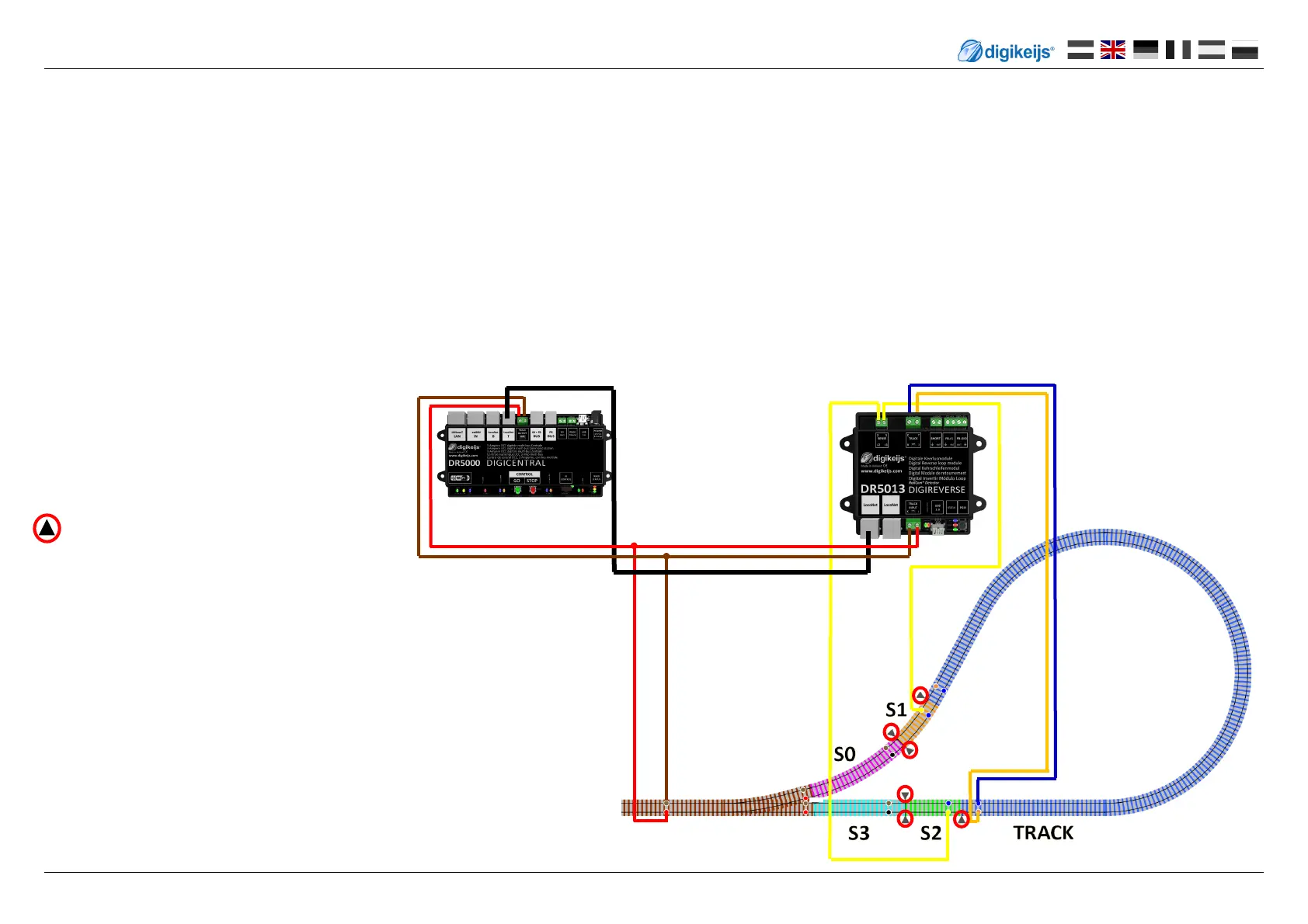

5.4 DR5013 connecon with sensor tracks (S1,S2) and LocoNet
This connecon example shows the use of the DR5013 in conjuncon with sensor tracks (S1,S2). With this connecon, the DR5013 automacally reverses the polarity (short-circuit
-free) and may be able to switch the entry/exit switch automacally on exit. Via LocoNet® various informaon (Railcom® informaon, feedback, short-circuit message, switch
seng commands, etc.) is transmied to the central unit and can be evaluated accordingly.
Funconality:
The turnout was e.g. switched to bent. The DR5013 "reads" the executed turnout circuit via the track Input/LocoNet® and thus recognizes which polarity is required in the revers-
ing loop and adjusts it if necessary. As soon as the locomove reaches the area of the reversing loop (track), it is reported as occupied to the control centre via LocoNet® with the
integrated occupancy detector and can, for example, be evaluated with a control program. At the same me, the Railcom® data of the locomove (address, QoS messages, etc.)
are read out in the enre reversing loop track (S1,S2,Track) and also reported to the control centre. The locomove reaches sensor track 2 (S2). The DR5013 now recognizes that
the locomove is on its way to the exit. The polarity of the reversing loop is switched according to the polarity of the exit. In addion, the DR5013 can "correct" the turnout at this
moment so that a smooth exit is possible. If the turnout is in a straight line, the sequence is the same except that the order of the sensor tracks is dierent (S2 -> S1).
Terminal assignment:
S0 <not used>
S1 Sensor track 1
S2 Sensor track 2
S3 <not used>
Track reversing track
Necessary track separaon
Here we describe which sengs are to be made in the DR5013 cong tool.
Sensor track sengs:
In the input elds of the sensor tracks S1, S2, Track (T) the feedback contacts
must be entered which are to be used for the respecve sensor tracks. The
feedback numbers for S1,S2 and Track (T) are assigned directly in the
DR5013. Since S0 and S3 are not used, a 0 must be entered in the input win-
dows for S0 and S3.
Turnout mode:
In this example the sengs Both should be used for the turnout mode. The
magnec arcle address of the turnout must be entered.
Turnout status:
Both sengs are possible for the basic posion of the turnout.
