5.6 DR5013 external feedback connecon

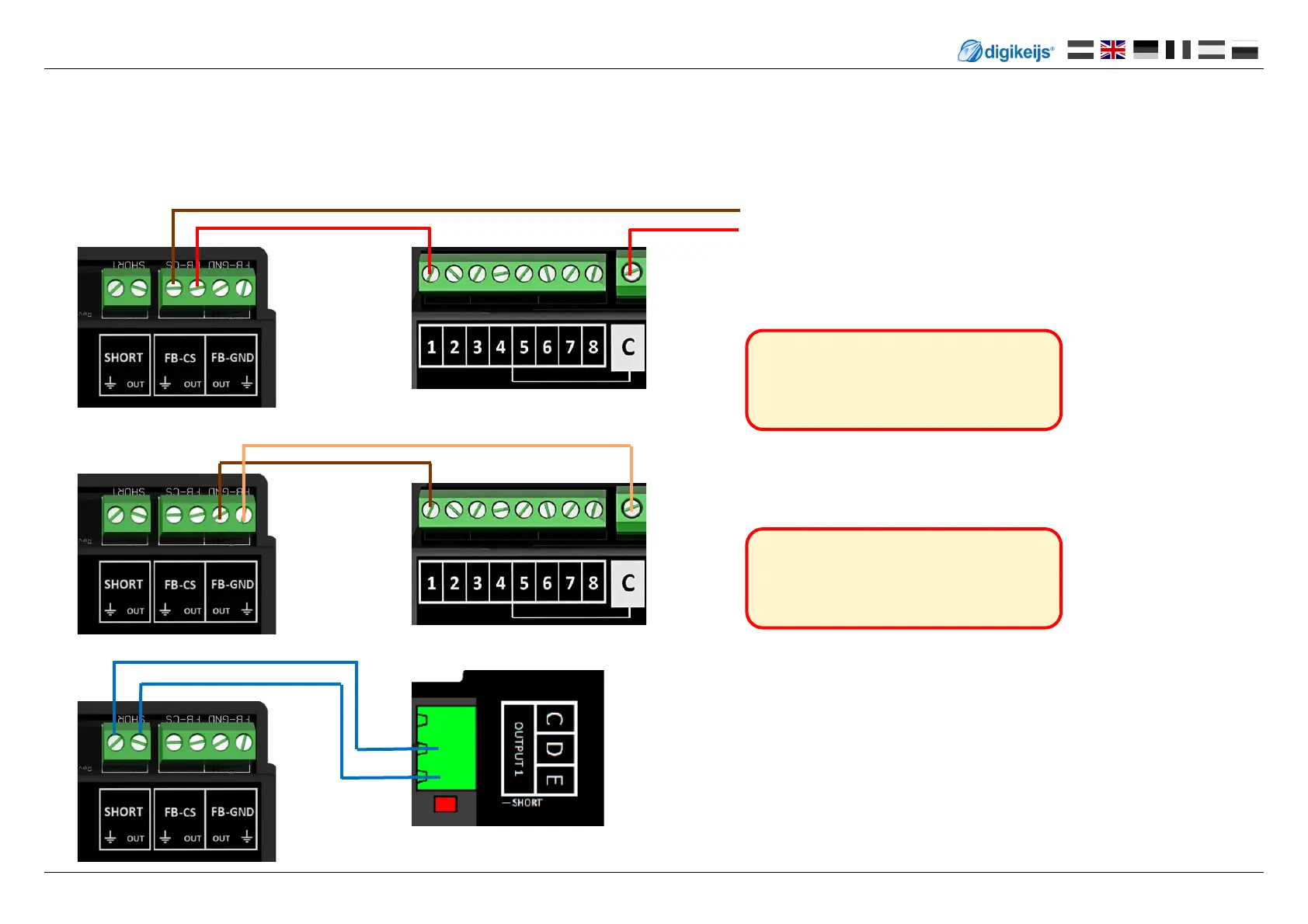

The DR5013 has three external feedback outputs. With these feedback outputs, the busy signal of the reversing loop (FB current sensor, GND signal to ground)
and a short circuit signal of the reversing loop can be reported to an external feedback.
Emergency stop (short-circuit) mes-
sage to a digital system that has a
CDE booster connecon.
Track Out digital central.
Occupancy message of the rever-
sing loop as current sensor
(DR4088xx-CS).
Occupied signal of the reversing
loop against „ground“
(DR4088xx-GND).
Aenon: Simultaneous use of the
external feedback units FB-CS and FB-
GND is not possible.
Aenon: Simultaneous use of the
external feedback units FB-CS and FB-
GND is not possible.
