Place the locomove on the sensor track
S0.
The feedback S0 in the app now shows the
assignment (yellow dot).
—> If no busy message is displayed, the
wiring or the address assignment in the
app of S0 must be checked.
Place the locomove on the sensor track
S1.
The feedback S1 in the app now shows the
assignment (yellow dot).
—> If no busy message is displayed, the
wiring or the address assignment in the
app of S1 must be checked.

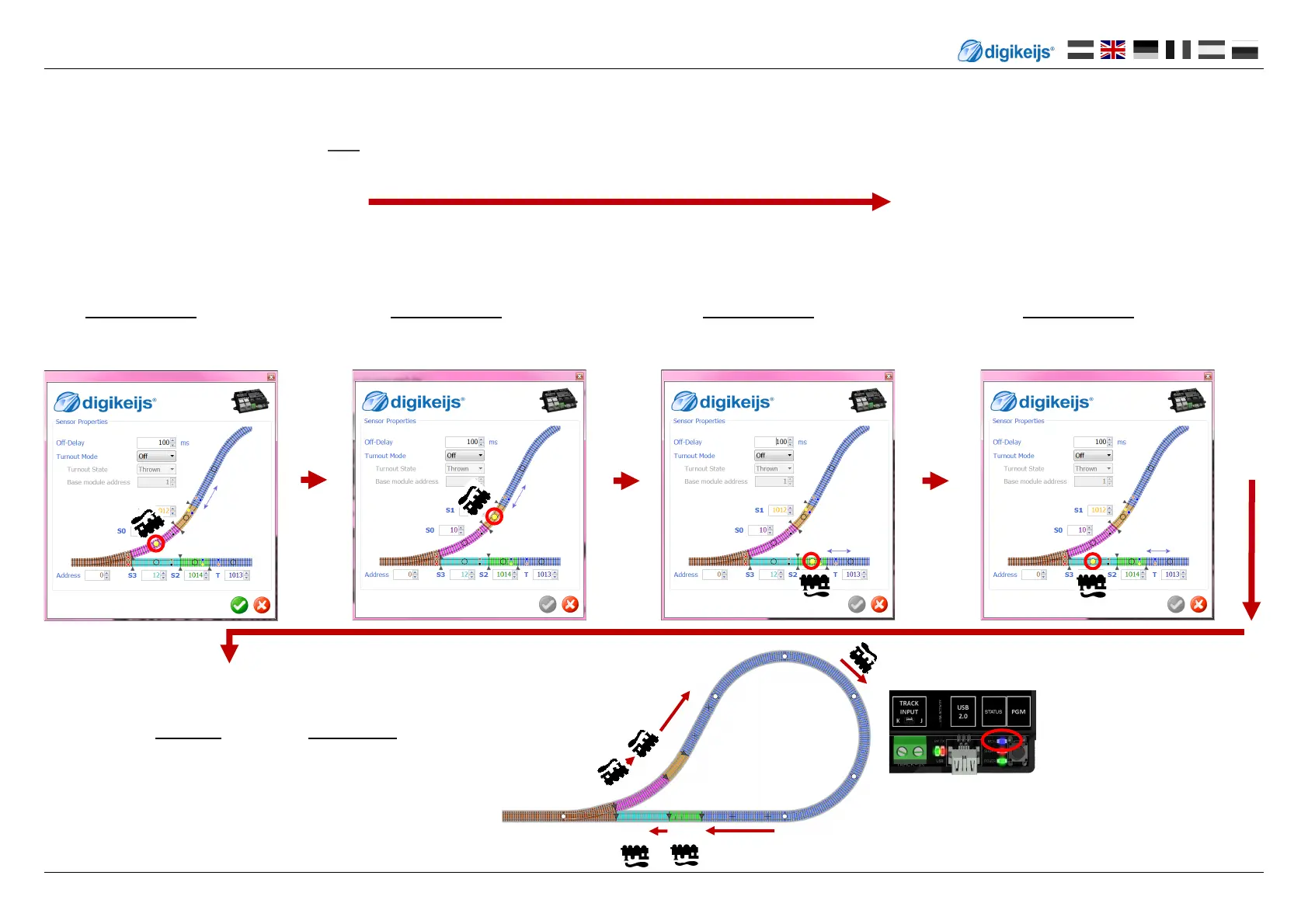

Test sequence of the feedback units
S0,S1,S2,S3 using the App:
6.0 Commissioning instrucons DR5013 with sensor tracks S0,S1,S2,S3 (with connecon to PC)
To check the connecon of the DR5013, use this procedure. This can be used to test if the wiring is correct and there is no fault. To do this, the DR5013 must be connected to the PC via USB
and the conguraon tool must be started. Note: A connecon via USB to the DR5000 or any other digikeijs device connected via USB must be disconnected rst. If this note is observed, the
test can be carried out without any problems even with acve track voltage.
Place the locomove on the sensor track
S2.
The feedback S2 in the app now shows the
assignment (yellow dot).
—> If no busy message is displayed, the
wiring or the address assignment in the
app of S2 must be checked.
Place the locomove on the sensor track
S3.
The feedback S3 in the app now shows the
assignment (yellow dot).
—> If no busy message is displayed, the
wiring or the address assignment in the
app of S3 must be checked.
S0
S1
S3 S2
At the end of the test series, place the locomove on the sensor
track S0 and drive in direcon S1 over the double track separa-
on point into the reversing loop track (T).
If the blue LED does not light up or a short circuit is triggered at
the DR5013, the track connecons at the track input of the
DR5013 must be replaced.
Finally go through the complete reversing loop again to test the
connecon completely: S0 -> S1 -> T -> S2 -> S3
Blue LED Indicaon of polarity of the
reversing loop track
