Important Information

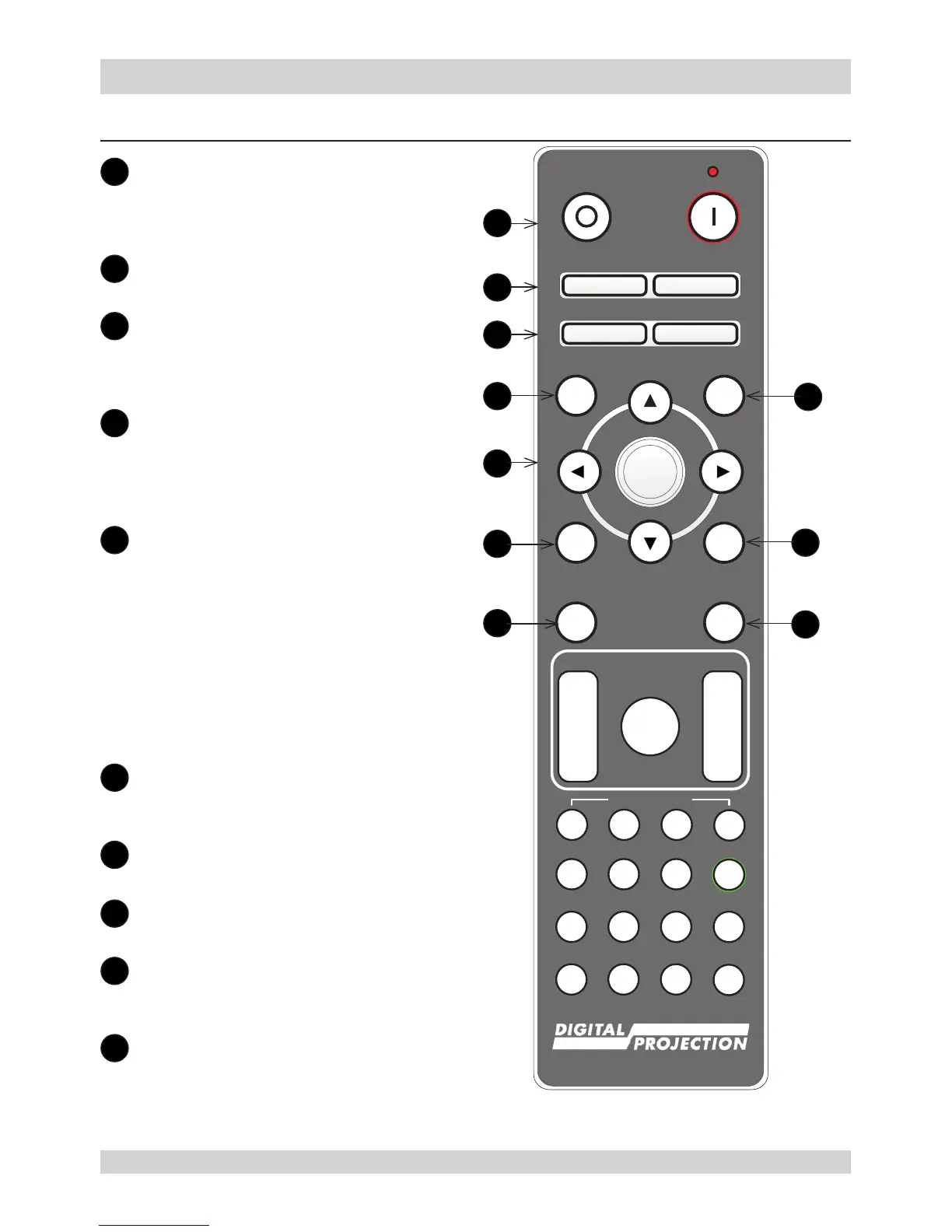

Remote Control Reference
1
Power ON/OFF
Turns the projector on and off.
To turn the projector off, press the
OFF button twice within ve seconds.
2
Pic Mute OPEN / CLOSE
Shows and hides the projected image.
3
OSD ON / OFF
Enables and disables screen timeout
messages and showing the OSD
during projection.
4
MENU
Access the projector OSD (on-screen
display). If the OSD is open, press
this button to go back to the previous
menu.
5
Navigation (arrows and OK)
Navigate through the menus with the
arrows, conrm your choice with OK.
In lens adjustment modes, the arrows
are used to move, zoom or focus the
lens. See 11 below.
In lens adjustment modes, or when
the OSD is not showing, the OK
button switches between modes:
Shift Adjustment and Zoom /
Focus Adjustment.
6
EXIT
Close the current OSD page and
return to the level above.
7
FREEZE
Freeze the current frame.
8
DEFAULT
Restore default settings.
9
INFO
Access information about the
projector.
10
RE-SYNC
Re-synchronise with the current input
signal.
Pic Mute
MENU
EXIT INFO
HDMI1
OK
OFF ON
ALT
LENS
FOCUS ZOOM
IN
OUT
IN
OUT
SHIFT
21 3
HDMI2 DVI
HD-T
VGA COMP1 COMP2 TEST
R G B ALL
3D EYE PIP SWAP
4 5 6
7 8 9 0
ALT
ADDR
OSD
OFF
ON
DEFAULT
FREEZE
RE-SYNC
A B C D
USER PRESET
OPEN CLOSE
HDMI3
HDMI4
DisplayPort2
DisplayPort1
SDI
1
2
5
6
8
4
9
7
3
10
