Making Connections
There are several different connection options available when using the BP50. The following
diagrams show the connections for some of these options.
Before connecting the BP50, make sure that the power to your amplifier is turned off, and the
power to the BP50 is disconnected. There is not a power switch on the BP50. To turn the BP50
off, disconnect your instrument from the Input Jack (for battery power) or disconnect the
optional PS200R power supply from the Power Jack or the AC outlet.

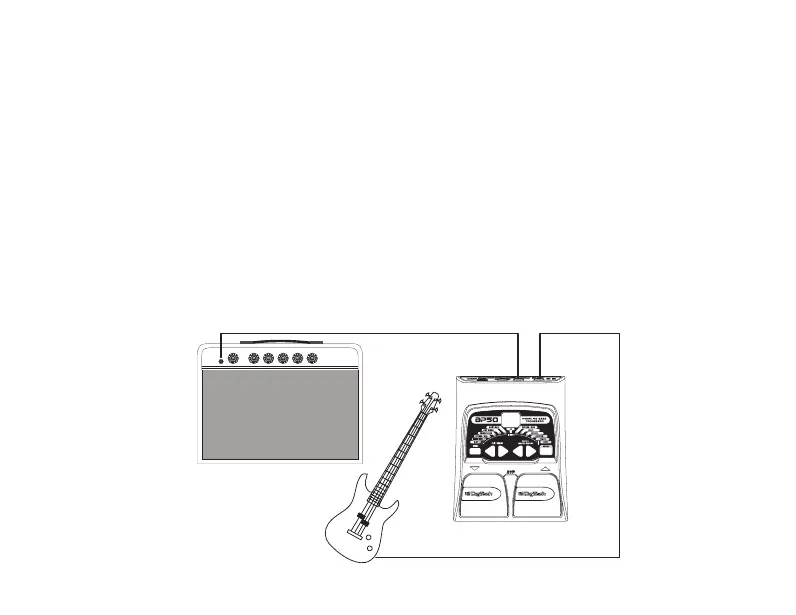

Mono Operation
Connect your bass to the Input of the BP50. Connect a single mono instrument cable from
the Stereo Output of the BP50 to the instrument input on your amplifier.
