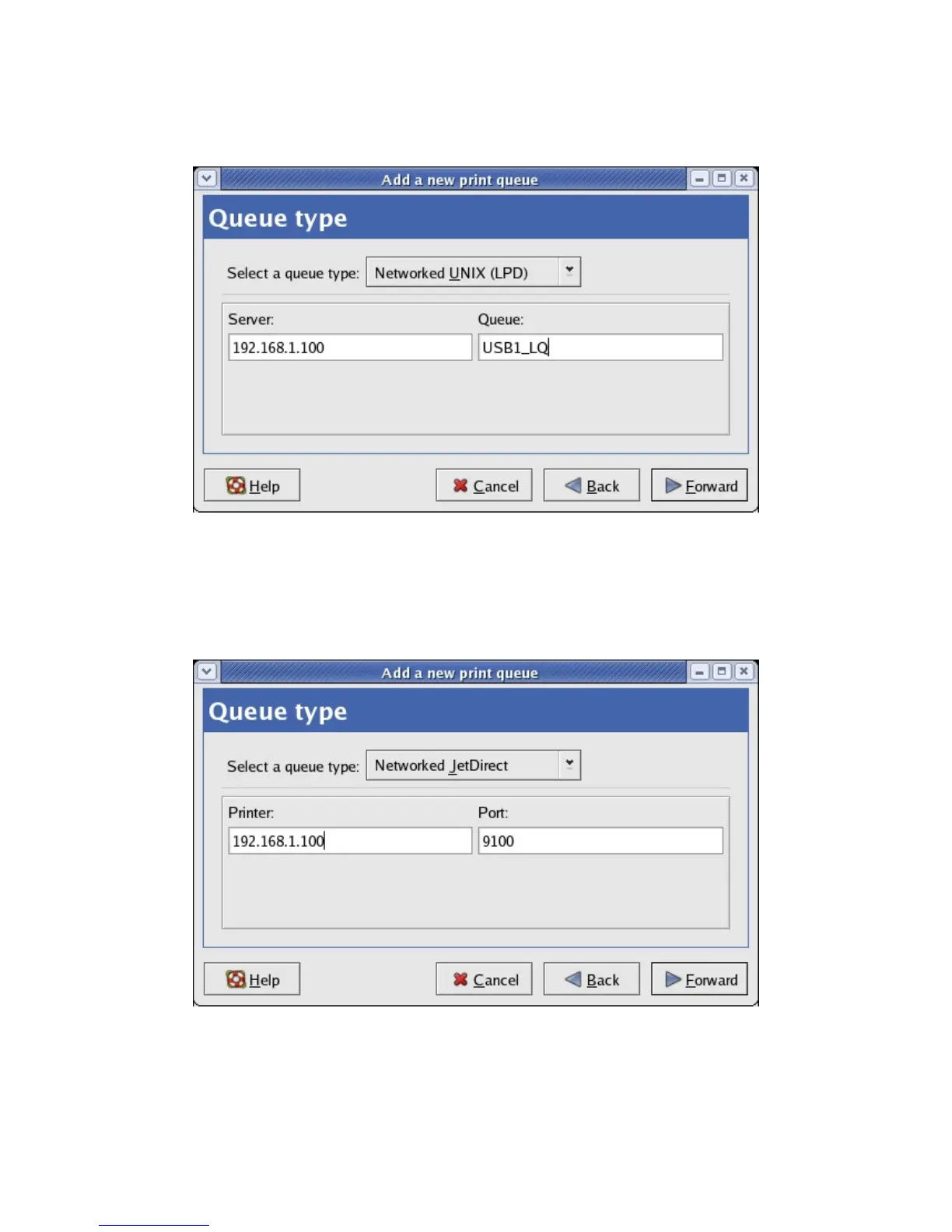

enter IP address in the Server box as 192.168.1.100 and Queue name in
Queue box as USB1_LQ.
B. Networked JetDirect: Fill in the Server’s IP address and protocol’s TCP
port and then click the Forward button. Example: If your Server’s IP
address is 192.168.1.100 and it connects HP PSC 1300 MFP via USB1 port.
You can enter IP address in the Server box as 192.168.1.100 and TCP Port
in Port box as 9100.
C. Networked Windows (SMB):
i. Click on the Specify button to specify SMB server Authentication.
41
