DN-16032 USER’S GUIDE PAGE 37/61 Rev. PV1.0
5.1 IMAGE SETUP
This includes：
- Resolution：Users can select between image resolution of 160x120, 320x240, and
640x480. The default resolution is 320x240.
- Quality： Users can select between “fine”, “normal”, and “basic” image quality. The
default image quality is “basic”.
- Anti-Flicker：Users can select between 60Hz for USA and Canada, 50Hz for Australia
and Europe, or Outdoor for when you are observing a naturally lit outside area; The
default setting is 50Hz.
- Audio：Audio output. Default setting is “off”.
- Rotate 180：This setting turns the image upside-down for when the camera is mounted
to a ceiling; Default setting is “off”.
- IR Auto Detection：IR LED auto activation in low light. Default setting is “on”
- Message : LiveView characters are hidden，
Default setting is “on”

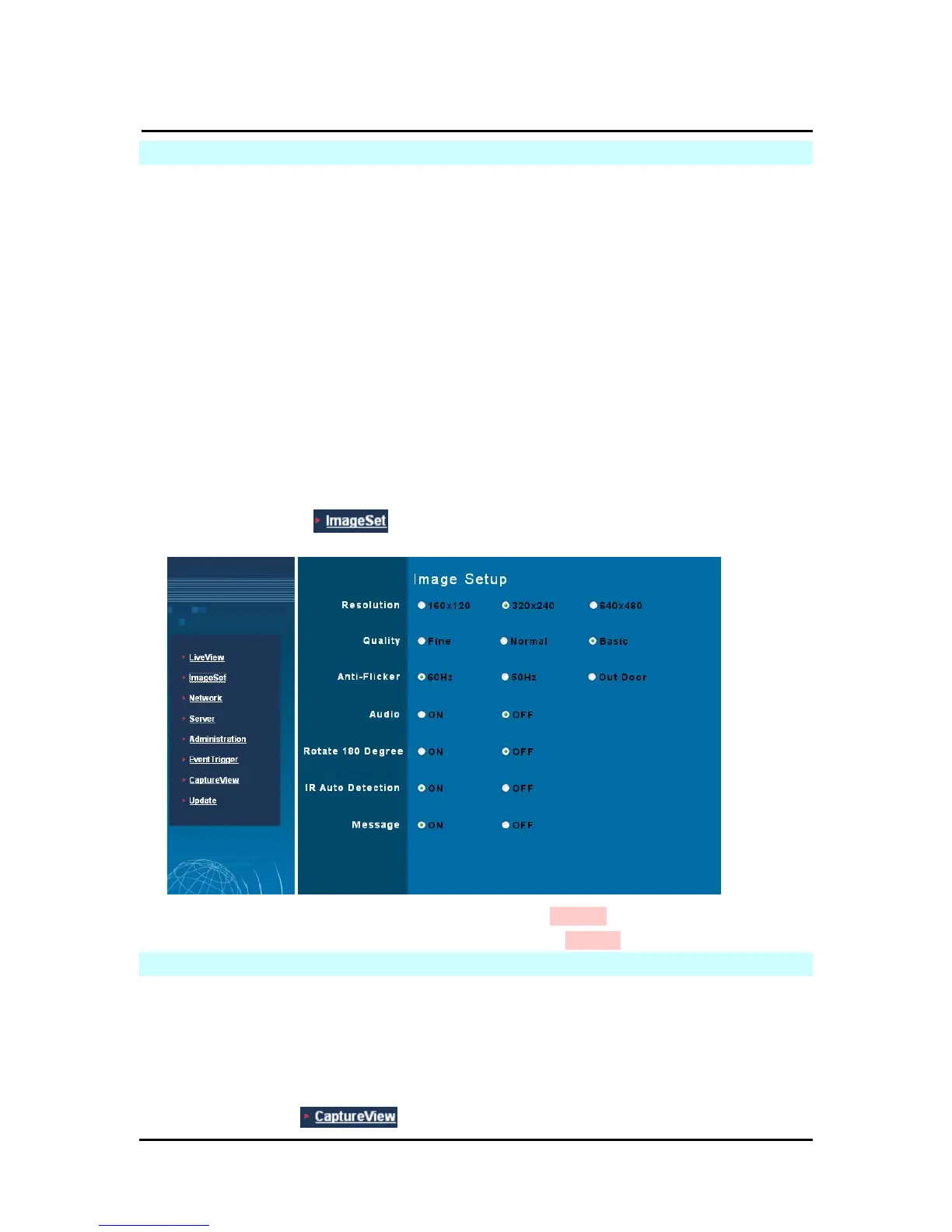

Image Setup Directions：
Step 1. Click on
to view the menu, the default settings are shown below;
Step 2. After entering the desired values, click on Submit.
Step 3. If you wish to cancel your changes, click on Cancel
5.2 CAPTURE VIEW
This view includes：
- Manual capture of still images using LiveView.
-
Automatic capture of still images via MD.
How to Use Capture View：
Step 1. Click on
to enter the menu. The menu is capable of saving up to
