DN-16032 USER’S GUIDE PAGE 7/61 Rev. PV1.0
 1. First, insert the TV_OUT cable to the place as shown in Figure 1.
 2. Next, plug in power adapter as shown in Figure 2. Press and hold Reset switch for
three seconds. Then, release it. The IP-CAM will access into TV_OUT mode.
 3.TV_OUT operation description:
a. Hold to change mode: For the default setting for TV_OUT is NTSC system, if you
want to use PAL system, please press and hold Reset switch about
three seconds to switch between NTSC and PAL systems.
b. Push to exit : Press Reset to access into TV screen and adjustable
50Hz,60Hz,Outdoor

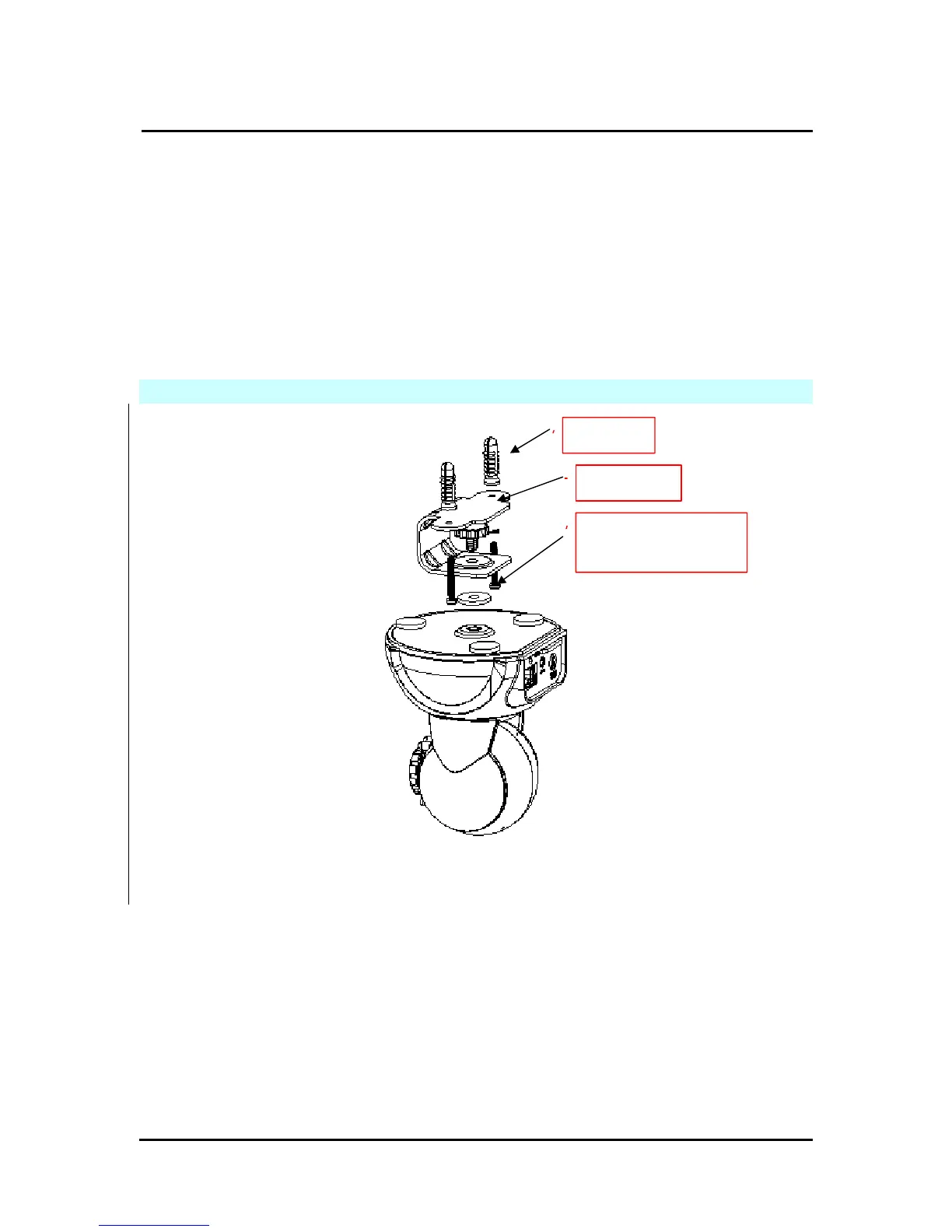

1.8 PRODUCT SET-UP
Anchor
Frame
Screw (P head
M3.5X25)

Digitus DN-16032 Specifications

General

Digital zoom	4 x
White balance	Auto
Maximum frame rate	15 fps
Video formats supported	M-JPEG
Maximum video resolution	640 x 480 pixels
Viewing angle, horizontal	54 °
Color	Yes
Networking features	PPPoE / ADSL
Supported protocols	Mail- / FTP- / DDNS- / DHCP- / NTP
Camera focusing range	30mm - 00
Compatible memory cards	SD
Supported network protocols	IEEE 802.3, IEEE 802.3u
Pan range	-175 - 175 °
Sensor type	CMOS
Product color	Black, Silver
Optical sensor size	1/4 \
