nut removed in step 5.
Disconnect one of the two (2) wire leads from the 9.
original control board (which are still connected to
parts within the rebox) and immediately connect it to
the new control board’s terminal, matching its position.
Continue with the remaining wire using the same
procedure.
CAUTION: Internal wiring and colors may not be the
same within the unit being serviced as those shown. To
avoid damage to the unit, damage to property or personal
injury, ensure wires are reconnected to match their original
locations.
Follow steps 1 through 3 in reverse order to 10.
reassemble the rebox.
!
NOTE: When placing bottom panel back onto unit,
position the metal lip from under the control panel
between the rubber spacers (attached to the bottom
panel) and the sheet metal of the bottom panel.
Flame Speed Control Replacement
CAUTION: If unit was operating prior to servicing allow
at least 10 minutes for lights, heating elements and top
panel to cool off to avoid accidental burning of skin.
WARNING: Disconnect power before attempting any
maintenance to reduce the risk of electric shock or damage
to persons.
Remove the rebox from the mantel.1.
Lay unit on its back.2.
Remove the 12 Philips screws that fasten the bottom 3.
cover to the rest of the rebox. There are: two (2)
screws on each side; two (2) screws on the back panel
(you may have to tip the bottom of the rebox up if it is
laying on its back), four (4) screws in the front directly
under the control panel; and two (2) screws on the
bottom of the rebox (Figure 8). The bottom panel is
now free to be removed.
Locate the Flame Speed Control and Potentiometer 4.
mounted on the left hand side (Figure 12).
Pull off the Flame Speed Control knob and unscrew 5.
the retaining nut (Figure 12). The Potentiometer
can now be removed from the panel by pushing the
Potentiometer through the front panel and remove from
inside the rebox.
The Flame Speed Control board is fastened to the 6.
underside of the Ember Bed support by four (4)
mounting studs, one in each corner (Figure 12).
Squeeze each mounting stud’s clasp to release the
circuit board from the rebox.
!
NOTE: If mounting studs are damaged, replacement
mounting studs will need to be inserted from underneath
Log Set Assembly. Follow steps 1 - 6 of Partially
Reective Glass Replacement procedure to do this. It
is recommended to attempt to release the control board
without cutting mounting studs.
Properly orient the replacement Flame Speed Control 7.
board and push it onto the four (4) mounting studs
(running the connecting Potentiometer wires under the
cover to the rest of the rebox. There are: two (2)
screws on each side; two (2) screws on the back panel
(you may have to tip the bottom of the rebox up if it is
laying on its back), four (4) screws in the front directly
under the control panel; and two (2) screws on the
bottom of the rebox (Figure 8). The bottom panel is
now free to be removed.
Locate the Light Dimmer Control Board and 4.
Potentiometer mounted on the left side (Figure 11).
Pull off the Light Dimmer Control knob and unscrew 5.
the retaining nut (Figure 11). The Potentiometer
can now be removed from the panel by pushing the
potentiometer through the front panel and removed
from inside the rebox.
The Light Dimmer Control board is fastened to the 6.
underside of the Ember Bed support by four (4)
mounting studs, one in each corner (Figure 11).
Squeeze each mounting stud’s clasp to release the
circuit board from the rebox.
!
NOTE: If mounting studs are damaged, replacement
mounting studs will need to be inserted from underneath
Log Set Assembly. Follow steps 1 - 6 of Partially Reective
Glass Replacement procedure on page 9 to do this. It
is recommended to attempt to release the control board
without cutting mounting studs.
Properly orient the replacement Light Dimmer Control 7.
board and push it onto the four (4) mounting studs
(running the connecting Potentiometer wires under the
board) until the clasps of the mounting studs snap the
control board into place.
Properly orient the Potentiometer attached to the 8.
replacement control board, push it through the front
control panel and anchor it in place using the retaining

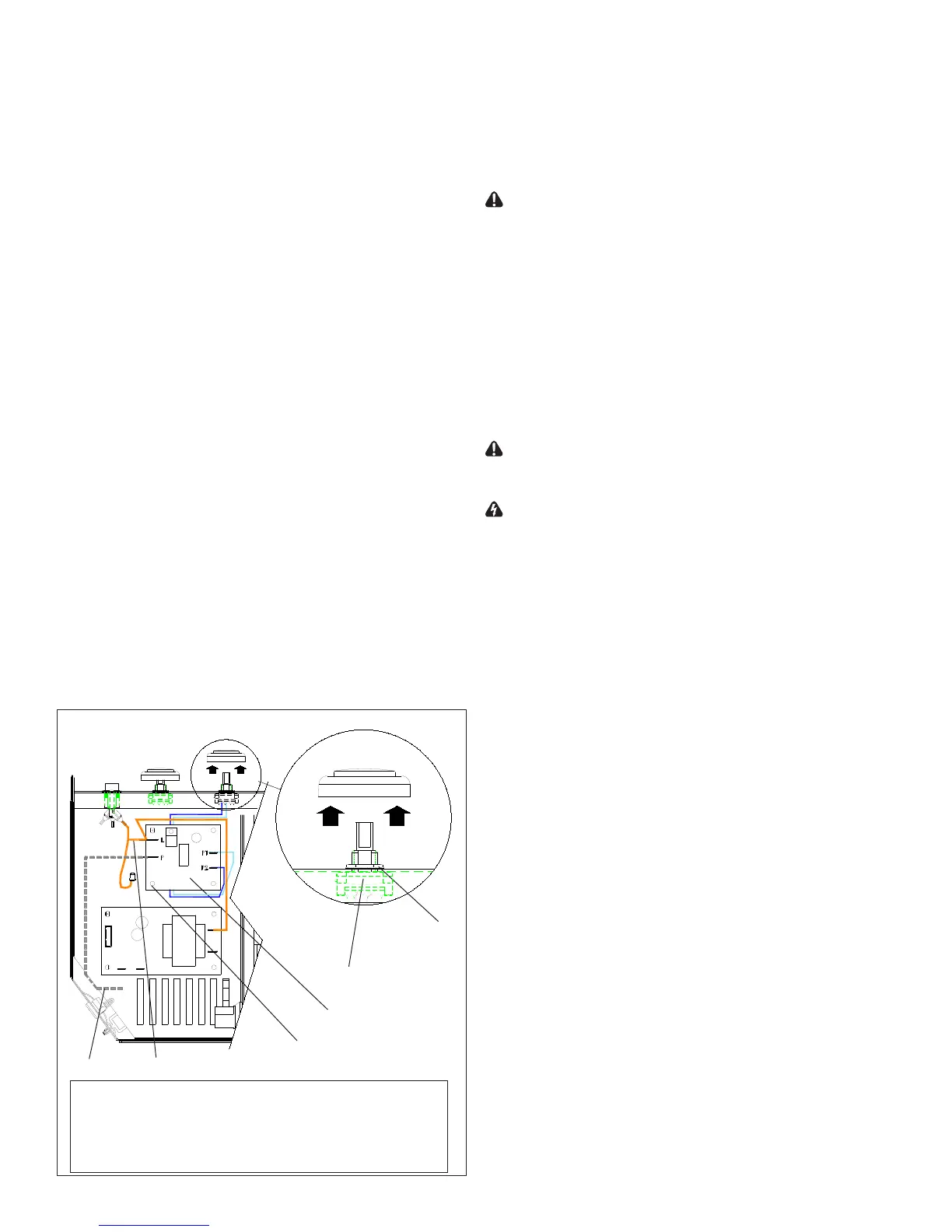

Figure 11
Light Dimmer
Control Board
Retaining
Nut
Potentiometer
Mounting Studs (4)
Wire 2Wire 1
Wire 1: White wire from bottom, left terminal of board to
cable sheath leading to upper rebox area.
Wire 2: Dark orange piggy-back wire from top, left terminal
of board to: top, right terminal of Flame Speed Control
board and; bottom terminal of 3-Position Switch.
To Next Page
