Dimplex DF2608 Service Manual

5

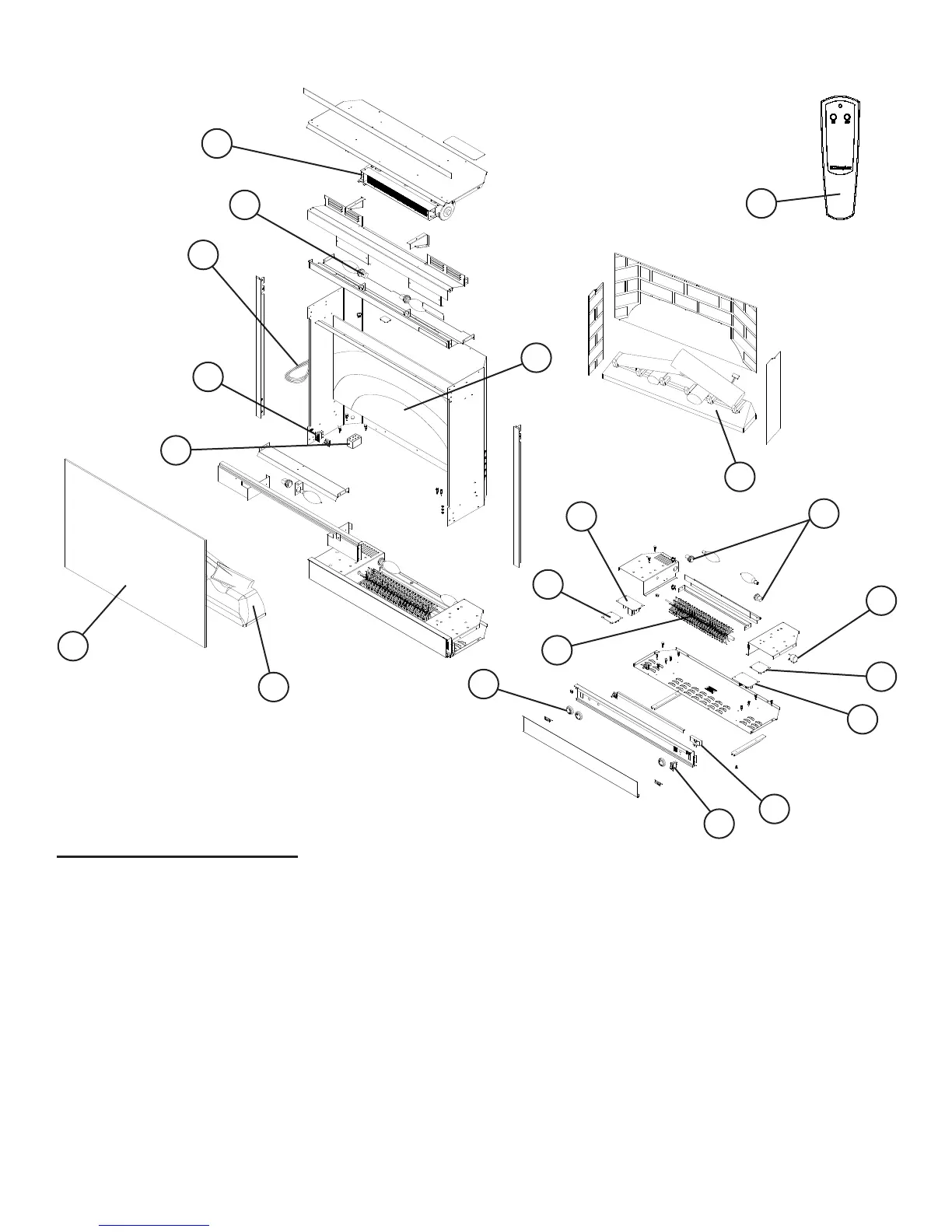

Exploded Parts Diagram - DF2608/NBDF2608
Replacement Parts List
Part Number 6904400359
Replacement Part:
Log Set1. . . . . . . . . . . . . . . . . . . . . . . . . 0439560100RP
Log Driver Controller2. ..............3000390100RP
Flicker Motor 3. . . . . . . . . . . . . . . . . . . . 3000240200KIT
Heater Assembly (with cutout) 4. ......2000330100RP
Thermostat 5. . . . . . . . . . . . . . . . . . . . . . 2300150100RP*
Heater Switch 6. . . . . . . . . . . . . . . . . . . . 2800210500RP
3-Position Switch 7. . . . . . . . . . . . . . . . . 2800210100RP
Flame Speed Control 8. . . . . . . . . . . . . . 3000240500RP
Light Dimmer Control 9. . . . . . . . . . . . . . 3000250100RP
Power Cord 10. . . . . . . . . . . . . . . . . . . . . 4100040200RP
Single Light Holder11. . . . . . . . . . . . . . . . 2500150300RP
Double Light Harness 12. . . . . . . . . . . . . 2500400300RP
Partially Reective Glass 13. ..........5901210200RP
Partially Reective Glass (NBDF2608) 5901450100RP
Front Glass 14. . . . . . . . . . . . . . . . . . . . . 5901220100RP
Control Knob (3 on unit)15. . . . . . . . . . . . 8800000200RP
Remote Control 16. . . . . . . . . . . . . . . . . . 3000370500RP
Remote Control Receiver 17. ..........3000380200RP
Terminal Block 18. . . . . . . . . . . . . . . . . . . 4000070100RP
Flicker Rod 19. . . . . . . . . . . . . . . . . . . . . . 5901250100RP
16
8
6
1
2
3
4
5
9
10
7
13
14
12
19
11
17
15
1
18

Dimplex DF2608 Specifications

General

Type	Built-in fireplace
Flueless	Yes
Fuel type	Electric
Orientation	Vertical
Heating power	1440 W
Product color	Black
Fireplace type	Closed

Weight and Dimensions

Depth	224 mm
Width	695 mm
Height	597 mm
