LIA 0608BWCF M - LIA 1316BWCF M English

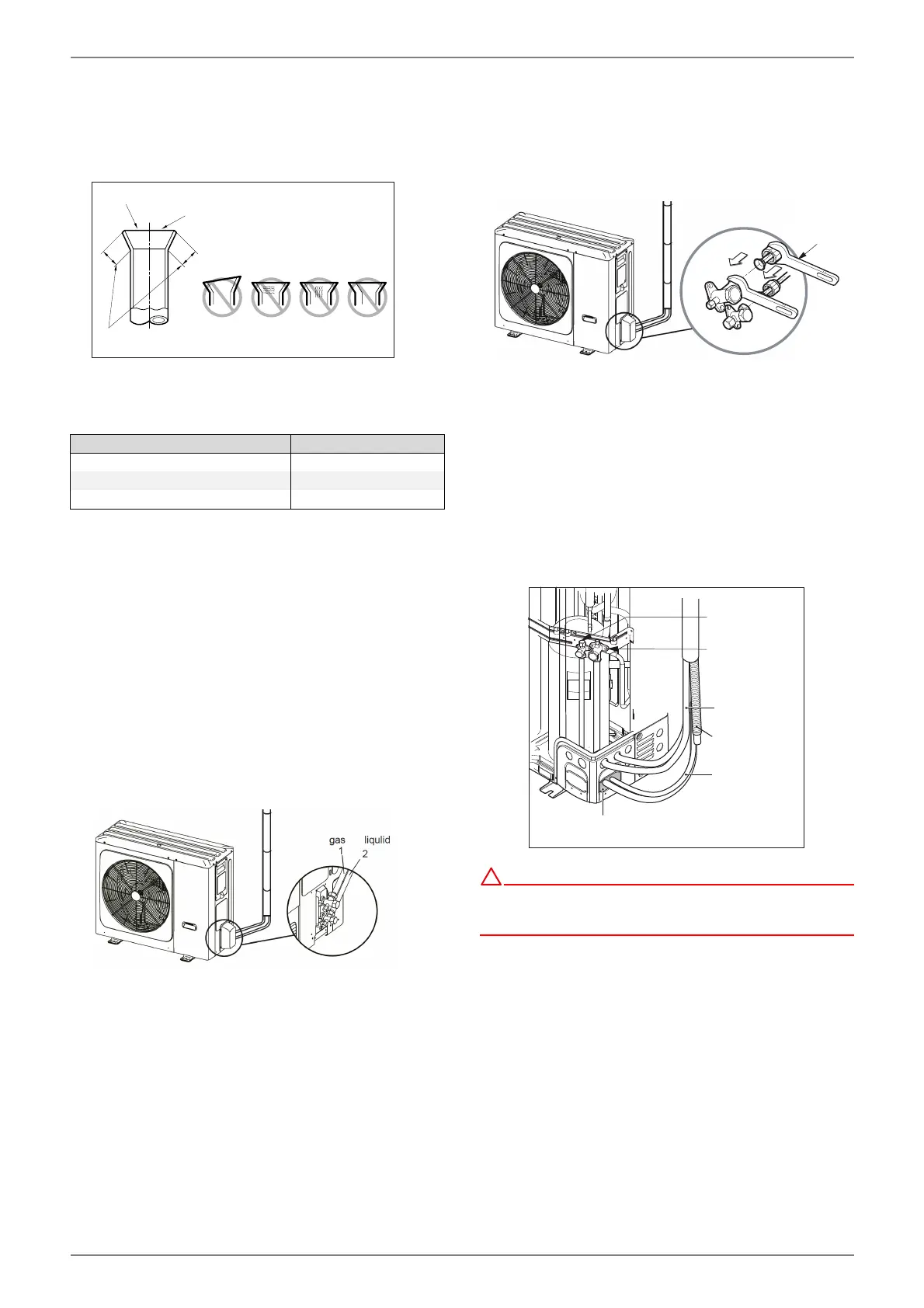

Step 5: Checks
 Compare the flanging with the figure.
 If the flanging is visibly damaged, cut the relevant section
off and repeat the flanging.
 Alternatively, use the soldering adapters included in the
scope of supply of the refrigerant pipe (Sangi soldering
adapters).
7.1.3 Pipe connections on the indoor unit
The pipe connection on the indoor unit takes place in two steps.
Step 1: Preparation
 Align the centre of the pipes so that they interlock.
Step 2: Fastening
 Solder the pipes in place using nitrogen.
7.1.4 Pipe connections on the outdoor unit
The pipe connection on the outdoor unit takes place in steps.
Step 1: Determining the direction in which the pipes
are to run
 The pipes are to be aligned to the rear
Step 2: Fastening
 Align the centre of the pipes and tighten the screw nuts by
hand.
 Tighten the screw nuts with a spanner until they click.
 Torques.
Step 3: Preventing foreign bodies from entering the
unit
 Seal all pipe openings well with putty or a different type of
insulation (available separately).
 If insects or small animals enter the outdoor unit, they can
cause short circuits in the control cabinet.
 Lay the pipes. To do this, cover the coupling device of the
indoor unit with insulation and fix in place with two adhe-
sive tapes.
 Adequate thermal insulation is extremely important.
CAUTION!
!
!
Never open the valves of the outdoor component.
Carry out the work from Cap. 7.2 on page 20
and Cap. 7.3 on page 21 first.
External diameter of pipe[mm/inch] Torque [Nm]
6.35 / 1/4 14 - 18
9.52 / 3/8 33 - 42
15.88 / 5/8 63 - 77
6ODQWLQJ
The inside shines with no scratches
Smooth all round
The same length
all round
Damaged
surface
Cracked
Uneven
thickness
= Incorrect flanging =
Continuously
Continuously
3LSHZRUNRI
WKHDLUVLGH
Pipework of
the liquid side
Putty or insulation (available separately)
Drain hose
(if required)
Connection cable
Connection pipe
