Dimplex Revillusion RBF30-FG - Front Glass Installation

11
Installation
Front Glass Installation
x 2
A
x 2
B
x 1
x 1
C
C
Hardware
x 2 x 2 x 2 x 2
A
B
C D
x 2
D

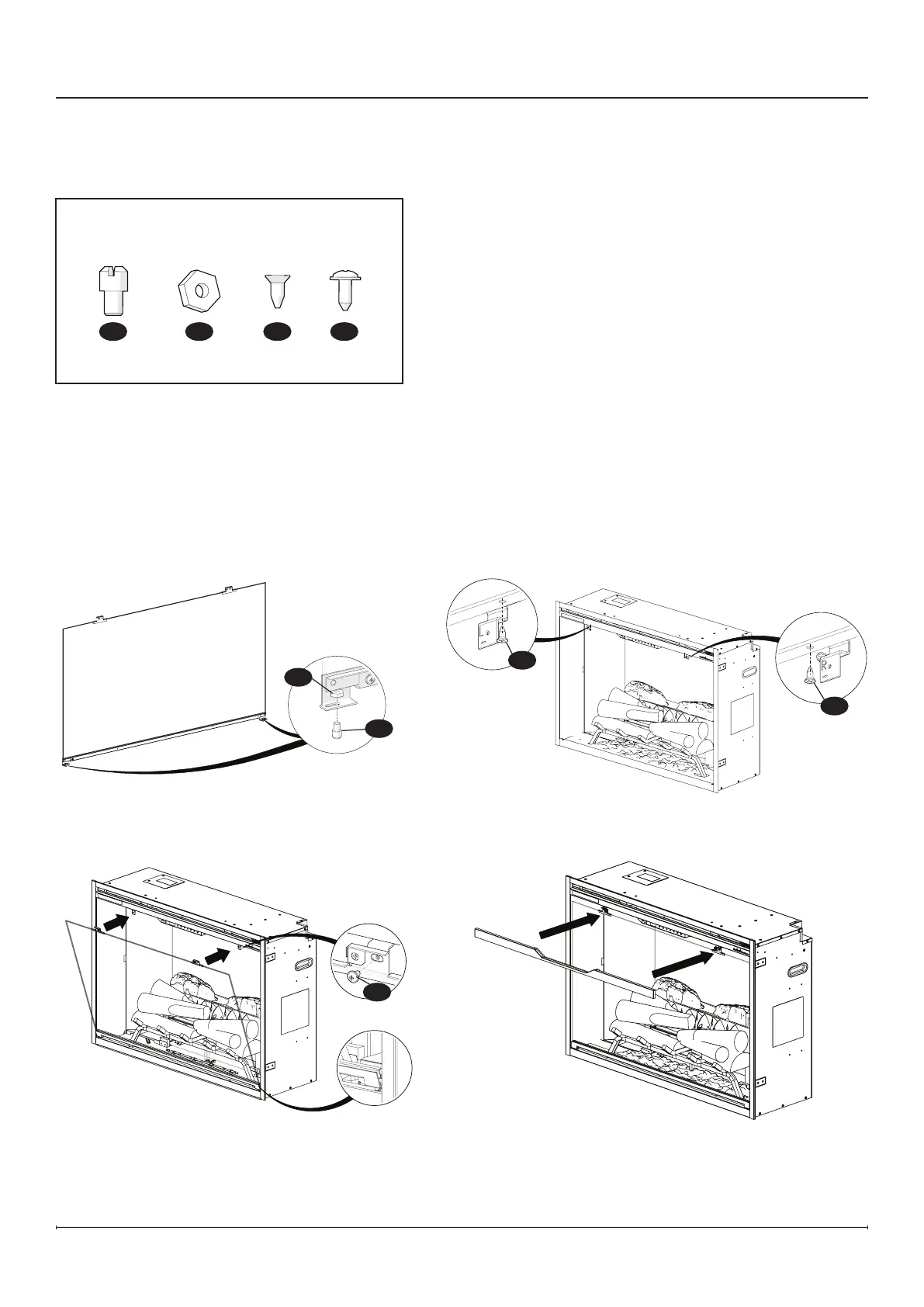

1. Secure the glass pins to the bottom brackets of the
glass. (Figure6, hardware A and B)
2. Secure the left (L) and right (R) brackets to the top of
the replace. (Figure 7, hardware C)
3. Align the glass pins on the glass to the holes in the
opening of the rebox. Tilt the glass upward, and
secure it to the brackets. (Figure 8, hardware D)
4. Place the magnetic glass trim. (Figure 9)
Figure 6
Figure 7
Figure 8 Figure 9
