Dimplex Revillusion RBF30-FG - Installation Instructions

9
Installation

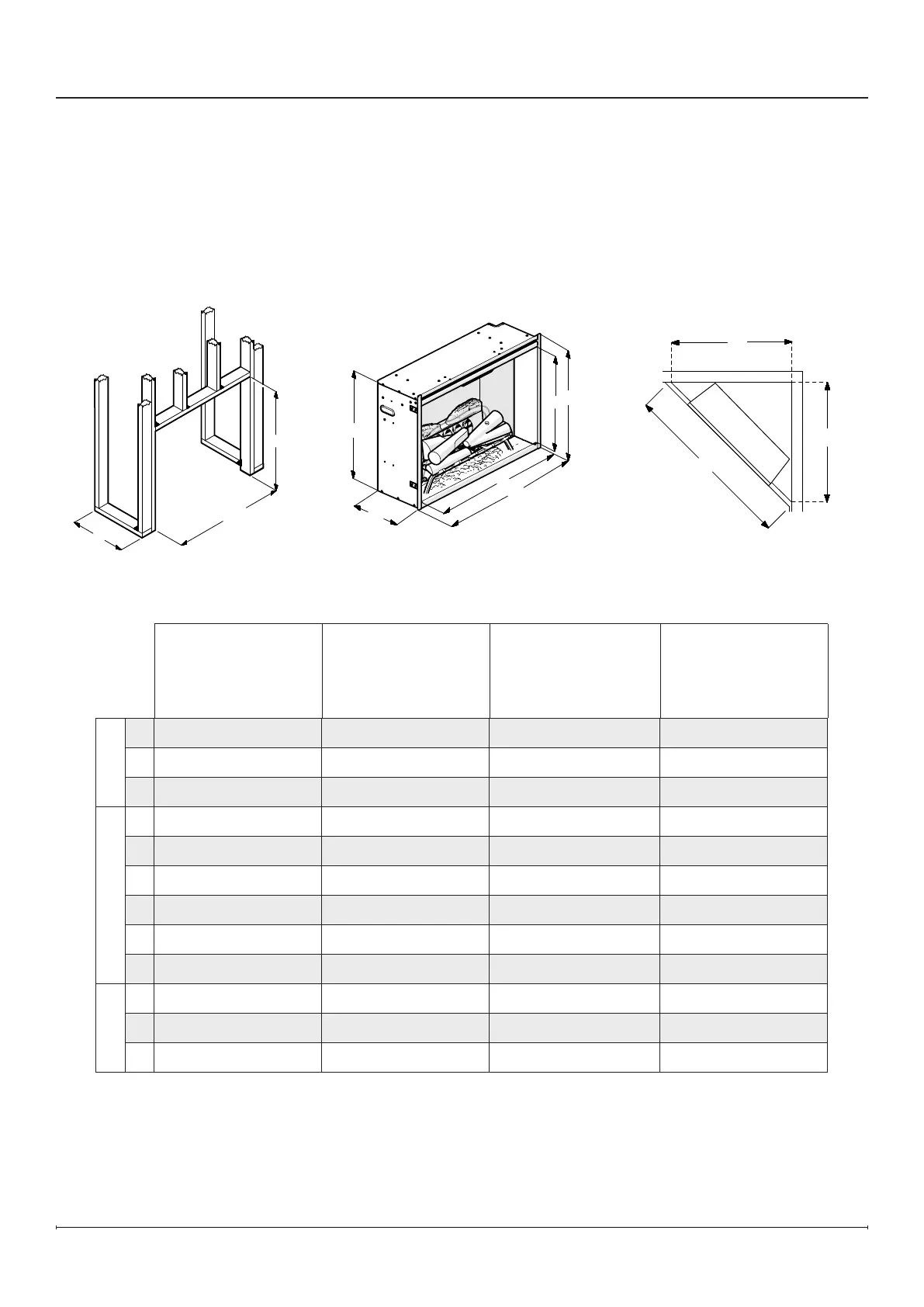

Figure1
Installation Instructions
1. Rough-in the framing opening, following the recommended framing dimensions below.
!
NOTE: The materials used for the nished surround must be cut to precise dimensions (dimensions B & C) as the
¼" (0.6cm) self-trimming ange is only to create a nished appearance.
RBF30-FG
RBF30WC-FG
500002388
500002389
RBF36-FG
RBF36WC-FG
500002400
500002401
RBF36P-FG
RBF36PWC-FG
500002398
500002399
RBF42-FG
RBF42WC-FG
500002410
500002411
Figure 1
A
12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm)
B
30 5/8" (778 mm) 36 5/8" (930 mm) 36 5/8" (930 mm) 42 5/8" (1083 mm)
C
26 3/16" (665 mm) 26 3/16" (665 mm) 30 5/8" (778 mm) 30 5/8" (778 mm)
Figure 2
D
25 3/4" (654 mm) 25 3/4" (654 mm) 30 1/4" (768 mm) 30 1/4" (768 mm)
E
12" (306 mm) 12" (306 mm) 12" (306 mm) 12" (306 mm)
F
29 3/8" (746 mm) 35 3/8" (898 mm) 35 3/8" (898 mm) 41 1/2" (1053 mm)
G
31 1/8" (792 mm) 37 1/8" (944 mm) 37 1/8" (944 mm) 43 1/4" (1098 mm)
H
22 3/4" (578 mm) 22 3/4" (578 mm) 27 1/4" (691 mm) 27 1/4" (691 mm)
I
26 5/8" (6764 mm) 26 5/8" (674 mm) 31" (788 mm) 31" (788 mm)
Figure 3
J
54 1/4" (1378 mm) 60" (1524 mm) 60" (1524 mm) 66 1/2" (1689 mm)
K
38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)
L
38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)
Framing Dimensions
G
F
I
H
E
D
J
K
L
C
B
A
G
F
I
H
E
D
J
K
L
C
B
A
G
F
I
H
E
D
J
K
L
C
B
A
Firebox Dimensions Dimensions for Corner Installation
Figure2
Figure3
