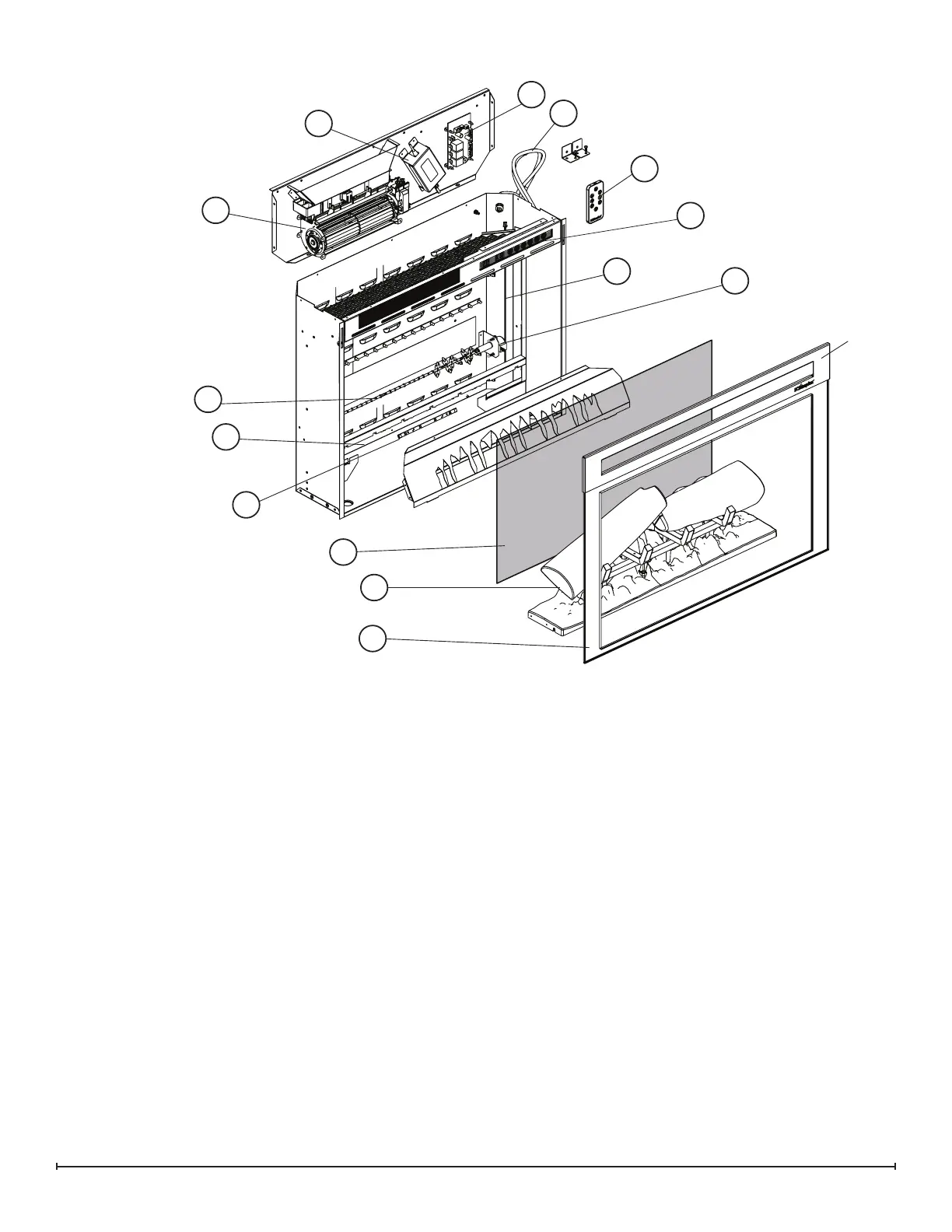

Exploded Parts Diagram
Replacement Parts List
XHD23 MOD B+
XHD26 MOD C+
XHD28 MOD B+
XHD33 ALL MODS
1. Heater Assembly ......................2203610700RP
2. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250700RP
3. Main Control Board Logs ................3001840100RP
Media ...............................3001840200RP
4. Power Cord ..........................4100190700RP
5. Touchpad ............................6700600100RP
6. Thermistor ...........................3001560800RP
7. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . .3000240200KIT
8. Flicker Rod XHD23. . . . . . . . . . . . . . . . . . . . . 5903090200RP
XHD26 & XHD28. . . . . . . . . . . . . 5903090100RP
XHD33. . . . . . . . . . . . . . . . . . . . . 5903090300RP
9. Flame LED Strip XHD23 ...............3002200100RP
XHD26 & XHD28 .......3002200200RP
XHD33 ...............3002200300RP
10. Flame Base LEDs XHD23L & XHD26L ....3001880100RP
XHD28L . . . . . . . . . . . . . 3001880200RP
XHD33L . . . . . . . . . . . . . 3001880300RP
11. Media LED Strip XHD23G. . . . . . . . . . . . . . . 3001570100RP
XHD26G. . . . . . . . . . . . . . . 3001570700RP
XHD28G. . . . . . . . . . . . . . . 3001570300RP
XHD33G (2) ............3001960100RP
12. Flame Screen XHD23 ..................5902580400RP
XHD26 ..................5902580500RP
XHD28 ..................5902580600RP
XHD33 ..................5902580700RP
13. Logset XHD23L .......................0442330100RP
XHD26L .......................0442220100RP
XHD28L .......................0442300100RP
XHD33L .......................0442460100RP
14. Media Tray XHD23G ...................0442320100RP
XHD26G ...................0442280100RP
XHD28G ...................0442310100RP
XHD33G ...................0442470100RP
15. Medium Ice Chunks (Media Models) .......1400150100RP
16. Large Ice Chunks (Media Models) . . . . . . . . . 1400130400RP
17. Front Glass XHD23 ....................5903150100RP
XHD26 ....................5903070100RP
XHD28 ....................5903160100RP
XHD33 ....................5903210100RP
18. Remote Control .......................6700590200RP
19. Mounting Hardware (XHD26) . . . . . . . . . . . . . 9602100100RP
20. Felt Feet Pads ........................8600140101RP
12
17
1
2
3
4
10
7
13
8
9
5
6
18
