Dimplex XHD23 - DF-PRO Replacement Parts List

5
DF-PRO Replacement Parts List
1. Heater Assembly ......................2203730300RP
2. Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . 2100250700RP
3. Main Control Board Logs ................3001840100RP
DWC ...............3001840200RP
4. Power Cord ..........................4100190600RP
5. Touchpad ............................6700600100RP
6. Thermistor ...........................3001560800RP
7. Flicker Motor. . . . . . . . . . . . . . . . . . . . . . . . . .3000240200KIT
8. Flicker Rod . . . . . . . . . . . . . . . . . . . . . . . . . . . 5903090100RP
9. Flame LED Strip. . . . . . . . . . . . . . . . . . . . . . . 3002200200RP
10. Flame Base LEDs DF26L-PRO ..........3001880100RP
DF28L-PRO . . . . . . . . . . 3001880200RP
11. Media LED Strip DF26DWC-PRO. . . . . . . . . 3001570700RP
DF28DWC-PRO. . . . . . . . . 3001570300RP
12. Flame Screen DF26-PRO ...............5902580500RP
DF28-PRO ...............5902580600RP
13. Logset DF26L-PRO ....................0442220100RP
DF28L-PRO ....................0442300100RP
14. Media Tray DF26DWC-PRO .............0442280100RP
DF28DWC-PRO .............0442310100RP
15. Medium Ice Chunks (DWC Models) ........1400150100RP
16. Large Ice Chunks (DWC Models). . . . . . . . . . 1400130400RP
17. Driftwood (DWC Models) ................0441820100RP
18. River Rock (DWC Models) . . . . . . . . . . . . . . . 1400080301RP
19. Front Glass DF26-PRO .................5903070100RP
DF28-PRO .................5903160100RP
20. Remote Control .......................6700590200RP
21. Mounting Hardware (DF-26-PRO) .........9602100100RP
22. Felt Feet Pads ........................8600140101RP
9
1
2
3
4
19
20
21
5
6
7
8
12
10
14
18
16
15
17

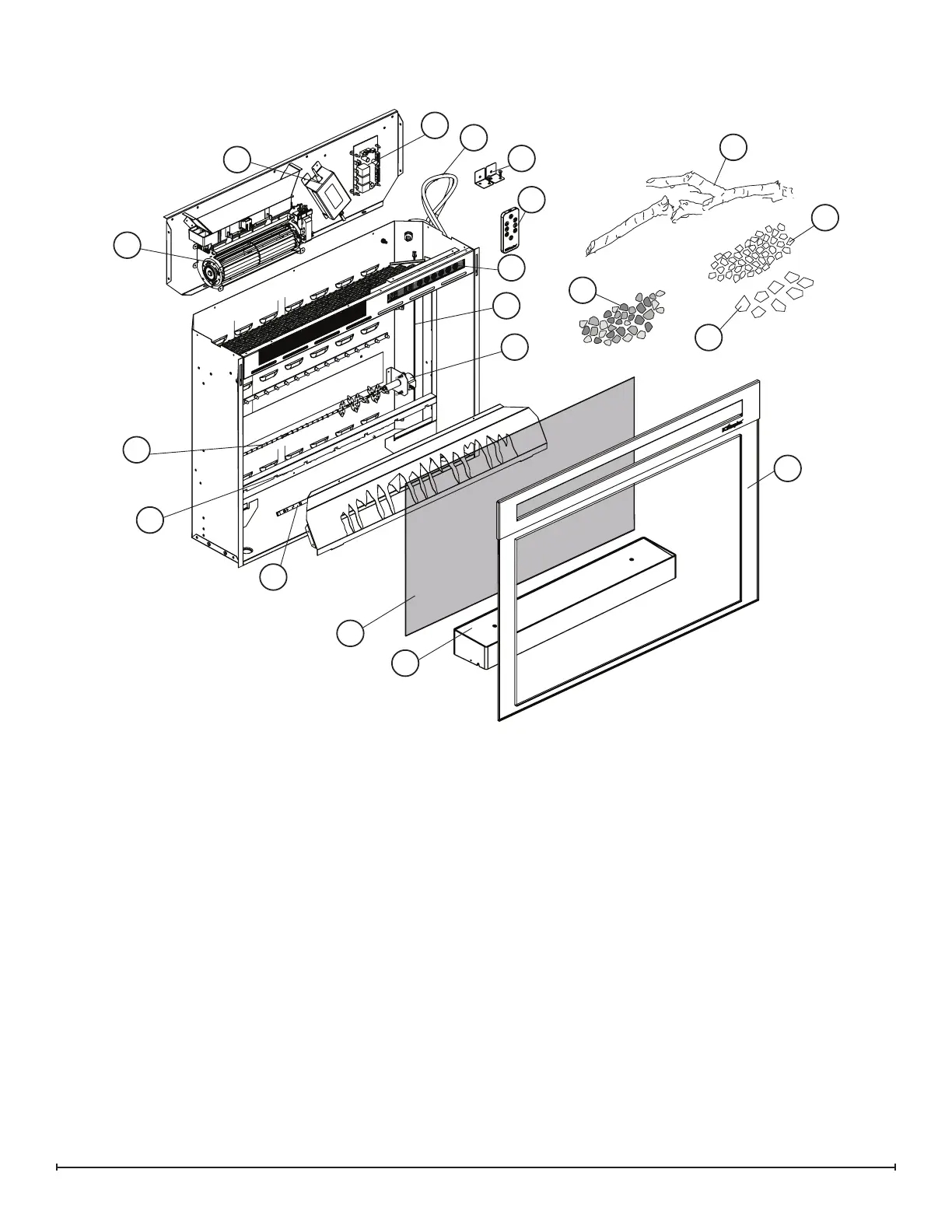

Exploded Parts Diagram
