Installation

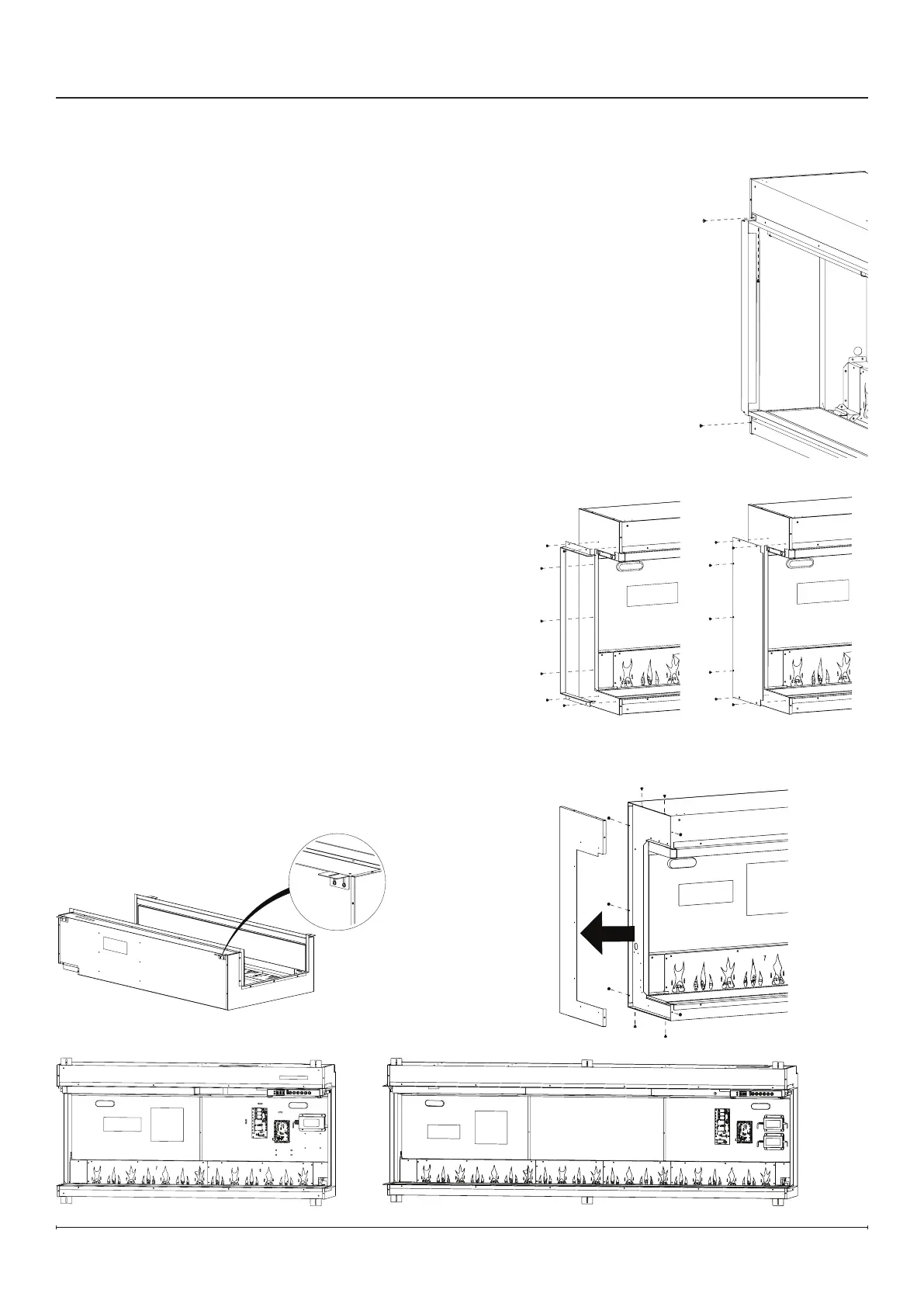

Preparing the Firebox for Installation
!
NOTE: For multi-unit installation, refer to instructions provided with the accessory
kit (XLFXDLINK, sold separately).
1. Remove packing support brackets by removing the 2 screws on the top and on the
1 screw on the bottom of each bracket. (Figure1) These brackets and screws can
be discarded.
2. Install the desired side trim option on each side of the rebox. Install the side panel
using 7 black screws.
• For open sides, select the open side trim. (Figure2)
• For closed sides, install the closed side trim. (Figure3) Do not install the side glass
panels in this conguration.
• For multi-unit installations, remove side panels on adjoining sides by removing the
9 screws. (Figure4) Do not install any trim or side glass on adjoining sides.
Figure2 Figure3
Figure4
Figure5
Figure 6
Figure 7
Figure1
3. Install the optional power cord accessory if desired,
following the instructions in the Electrical Installation section
(p.15). (XLFXDPLUG, sold separately)
4. If a permanently heat-disabled installation is desired, follow
the instructions to disable the heater in the Permanent Heat
Disable section (p.16).
5. Carefully lay the rebox on its back and install the mounting
brackets to the top and bottom of the rebox with the black
screws provided. (Figure5)
!
NOTE: There are 4 mounting brackets for
XLF5017-XD and XLF6017-XD units (Figure6), and 6
mounting brackets for XLF7417-XD, XLF8817-XD and
XLF10017-XD units. (Figure7)
!
NOTE: The mounting brackets are equipped with slots to
allow small adjustments to t the framing. Ensure all the
brackets are aligned.
