Electrical Installation
WARNING: The installation of the electric replace must comply with the applicable Local and/or National
Electrical Codes and utility requirements.
CAUTION: A dedicated, properly fused 15 Amp circuit is recommended, rated for the appropriate voltage (120V,
240V). A dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular
basis when the heater is operating. Additional appliances on the same circuit may exceed the current rating of
the circuit breaker.
!
NOTE: If required, the service cable can be secured through the electrical cover using a ½" (1.3cm) approved
strain relief connector.

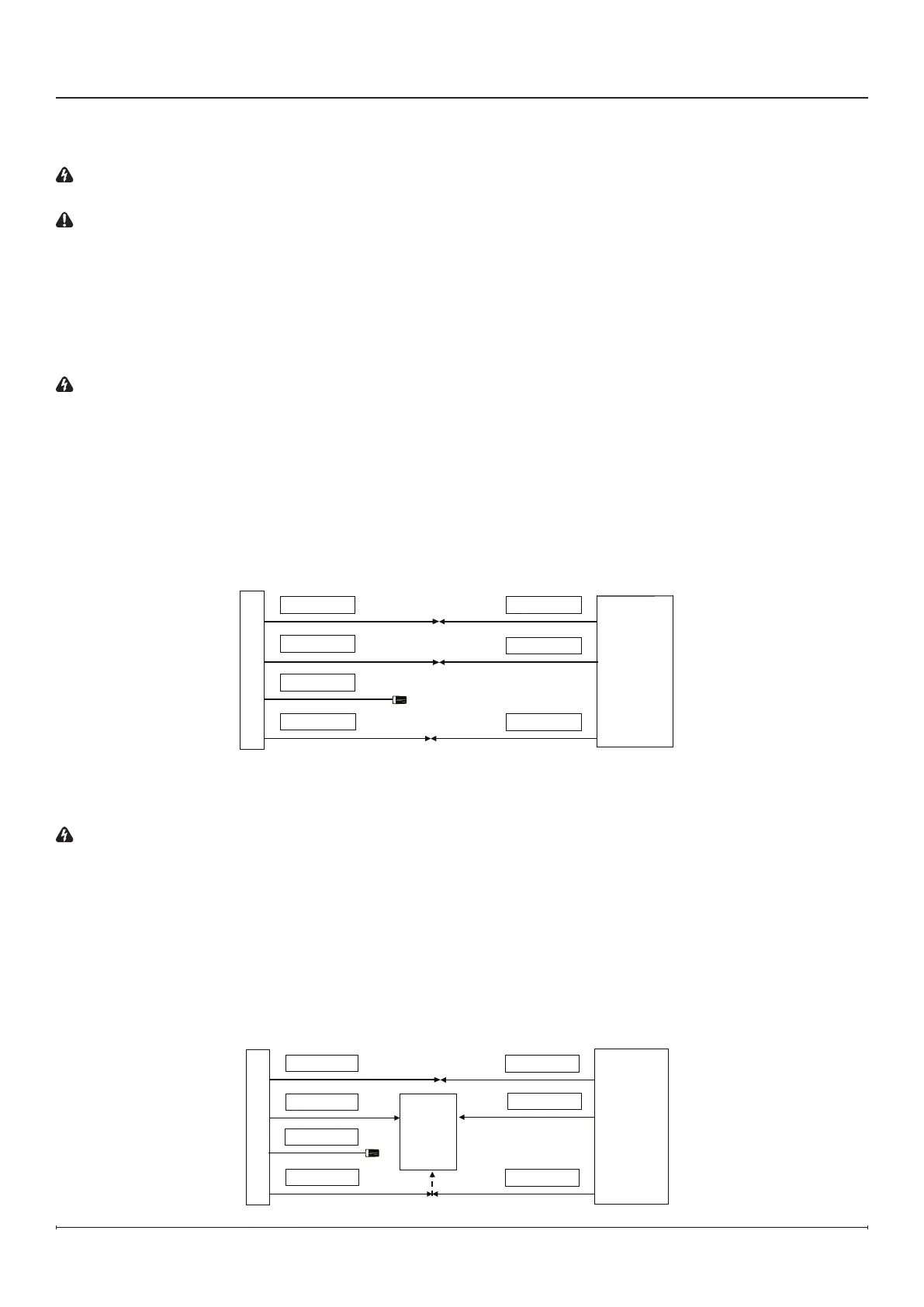

120 V Hardwire Installation (Figure16)
WARNING: Use the appropriate wire to meet local and national electrical codes for rated power consumption.
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live wire from the power supply with a wire connector.
3. Connect the white N wire from the unit to the neutral wire from the power supply with a wire connector.
4. Connect the green G wire from the unit to the ground wire from the power supply with a wire connector or attach the
grounding wire to the cover with the provided grounding screw, by placing the wire in between screw and lock washer
and tighten.
5. Ensure all wire connections are tight.
Figure 16
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
FIREPLACE JUNCTION BOX
240 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
RED
–
L2
RED
–
L2
WHITE – N
BLACK – L
BLACK – L1
GREEN
-
G
GREEN
-
G
GREEN
-
G
GREEN
-
G
Installation
120V Installation—Wall Switch (Figure17)
!
NOTE: Use a single pole, single throw (On/Off) wall switch that is rated for a minimum of 15 amps.
WARNING: Use the appropriate wire to meet local and national electrical codes for rated power consumption.
1. Cut the wire to an appropriate length.
2. Connect the black L1 wire from the unit to the live wire from the main power through the wall switch, ensuring all live
connections are connected with a wire connector.
3. Connect the white N wire from the unit to the neutral wire from the power supply with a wire connector.
4. Connect the green G wire from the unit to the ground wire from the power supply with a wire connector or attach the
grounding wire to the cover with the provided grounding screw, by placing the wire in between screw and lock washer
and tighten.
5. Ensure all wire connections are tight.
Figure 17
FIREPLACE JUNCTION BOX
120 V
POWER
SUPPLY
(BREAKER
PANEL)
WHITE - N
BLACK – L1
WHITE – N
BLACK – L
WALL
SWITCH
RED
–
L2
GREEN
-
G
GREEN
-
G
