9
Fireplace Installation
power supply.
CAUTION: Use the appropri-
ate wire to meet local and
national electrical codes for
rated power consumption.
• Cut the wire to an appropriate
length.
• Connect the L wire from the
unit to the live wire from the
power supply with a wire nut.
• Connect the N wire from the
unit to the neutral wire from
the power supply with a wire
nut.
• Connect the G wire from the
unit to the ground wire from
the power supply with a wire
nut or attach the ground-
ing wire to the cover with the
provided grounding screw, by
placing the wire in-between

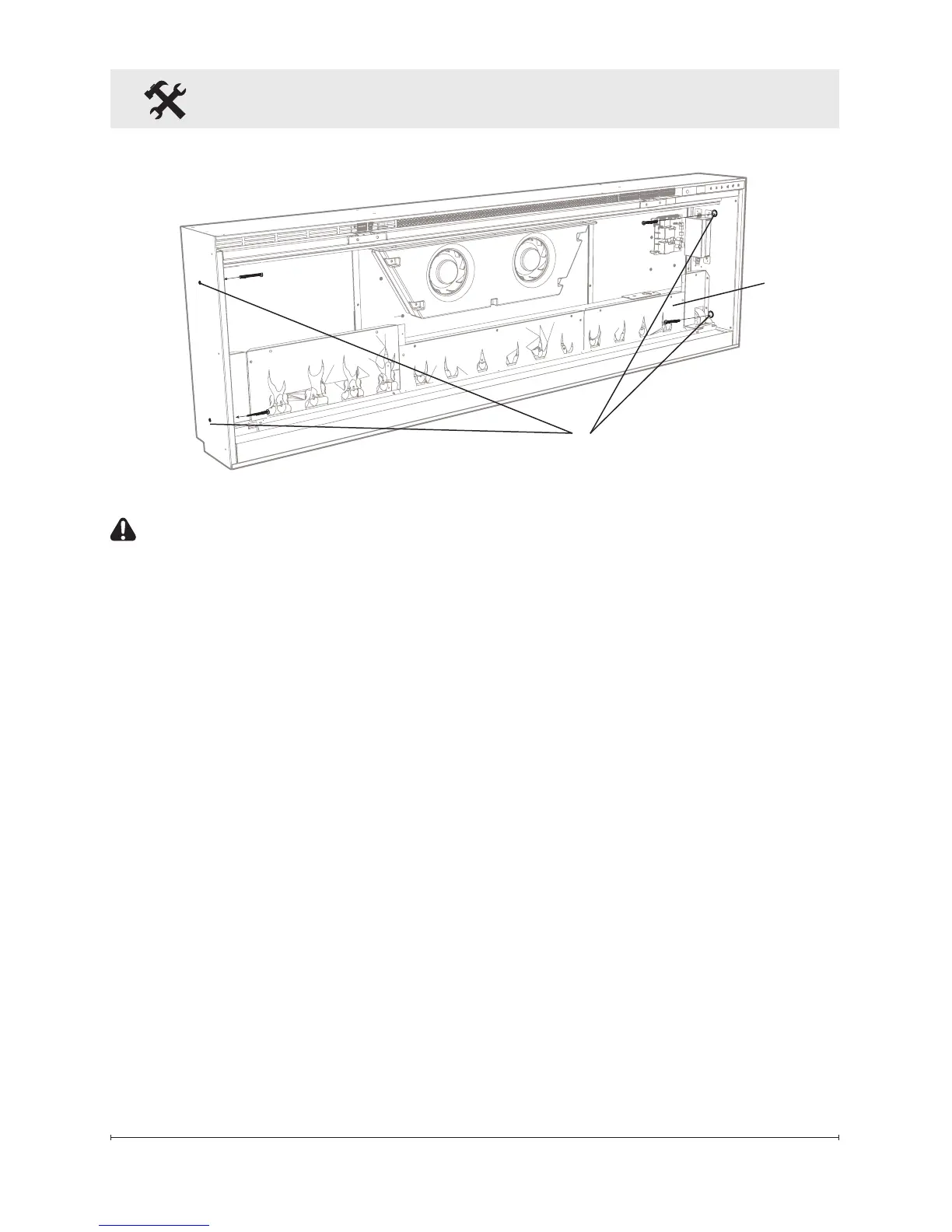

Figure 3
Mounting Holes
screw and lock washer and
tighten (Figure 2).
• Ensure that all wires are se-
cure and do not protrude past
the ame panel, so as not to
be visible after nal assembly.
• Continue to the nal assembly
instructions.
120V Installation - Wall Switch
!
NOTE: Use a single pole,
single throw (On/Off) wall switch
that is rated for a minimum of 15
amps.
!
NOTE: The unit is designed
to be hardwired to a power
source and should not have
a cord installed to allow the
unit to be plugged into a wall
receptacle.
Use two conductor, non-metallic
sheath cable with ground wire
Flame
Panel
To Next Page
