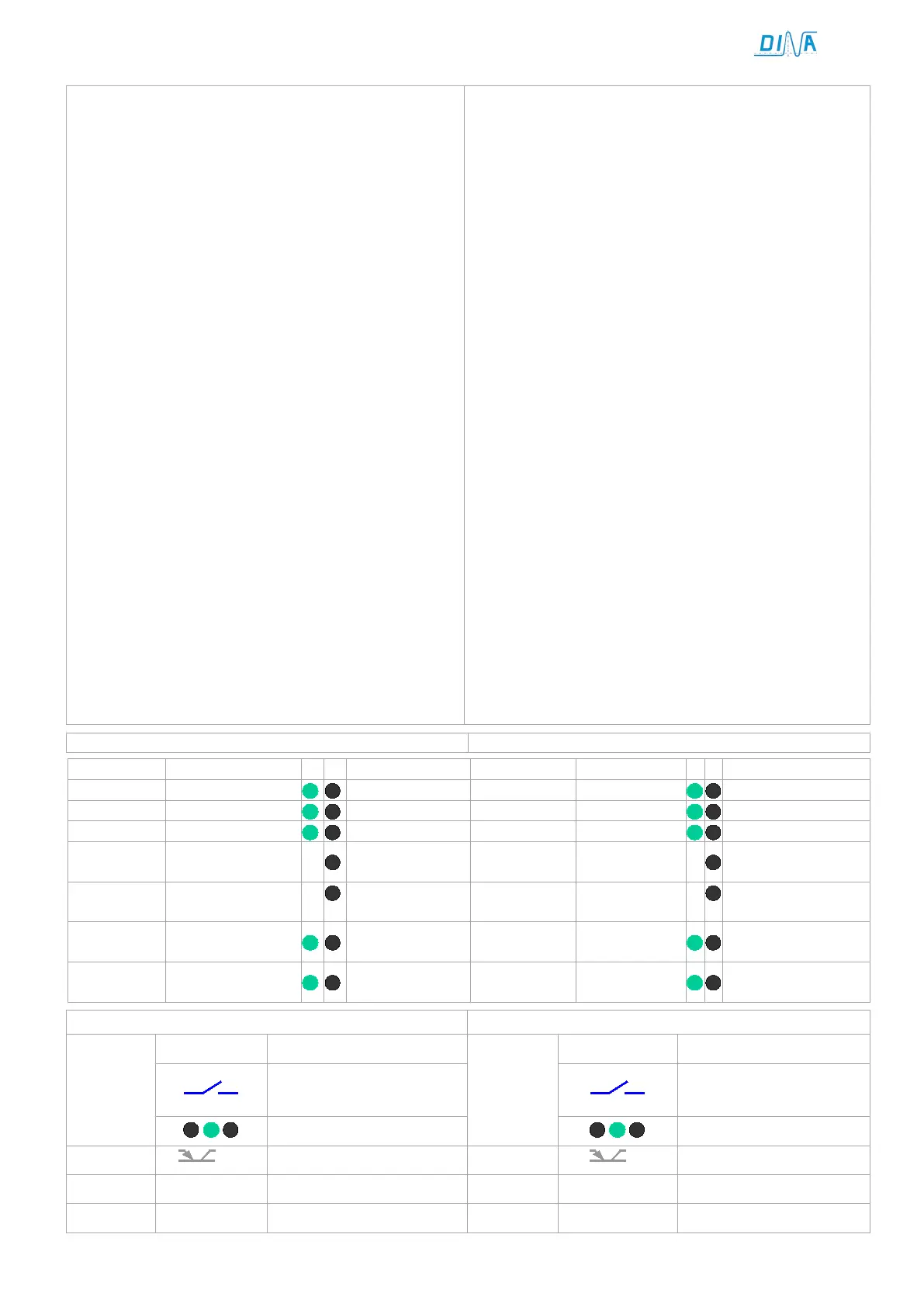

DNDS Modular Original Betriebsanleitung Original Instruction Manual
Sicherheitstechnik
Stand 19.02.2018
Date 2018-02-19
Seite 10 von 31
page 10 of 31
Funktion der Klemmen
IN1, IN2 für 2 PNP Sensoren als Messsystem.
Anschluss IN2 an 24V, IN1 offen: unterdrückt
Modulfunktion nur für besondere Fälle vorgesehen.
D-Klemmen an 1E V6, V7, V9 / 1R V1 / 1EG V9 / 1RG V1
Auswahl der Drehzahl im Automatik betrieb
nur aktive bei mindestens eine F-Klemme an 24V
F-Klemmen:
Reduzierung der Auswahl an D-Klemmen 100-25%
Umschalter zwischen automatikbetrieb (Fx an 24V)
und Einrichtbetrieb (F offen)
R1-Klemme:
Zur Auswahl des Halbautomatikbetriebs
R1-Klemme ist nur aktiv bei offenen F-Klemmen.
SH-Klemme: Zur Auswahl der des Einrichtbetriebs
SH ist nur aktiv bei offenen R1- und F-Klemmen.
D-Klemmen an 1E, 1EG V7A, V7C / 1R, 1RG V2, V3C
Auswahl der Drehzahl im Automatikbetrieb
Umschalter zwischen automatikbetrieb (Dx an 24V)
und Einrichtbetrieb (D offen)
M-/ MT-Klemmen:
Unterdrückung der Modulfunktion nur in besonderen
Fällen an 24V anschließen.
R1-Klemme: Zur Auswahl des Halbautomatikbetriebs
R1 ist nur aktiv bei offenen D-, M- bzw. MT-klemmen.
SH-Klemme: Zur Auswahl der des Einrichtbetriebs
SH ist nur aktiv bei offenen D-, M- bzw. MT-Klemmen.
Alle Klemmen sind 10ms einschalt- und 1s
ausschaltverzögert
Function of the terminals
IN1, IN2 for 2 PNP sensors as measuring system.
Connection IN2 to 24V, IN1 open: muting the module
function only to use if necessary.
D-Terminals at 1E V6, V7, V9 / 1R V1 / 1EG V9 / 1RG V1
setting of the speed during the automatic function
mode active only if at least one F-terminal is at 24V.
F-Terminals:
reduction of the selection at D-Terminals 100-25%
Switch over between automatic mode (Fx at 24V)
and tool-setting function mode (F = off)
R1-Terminal:
To select the semi-automatic mode
R1-Terminal is only active if the F-Terminals are off.
SH-Terminal: To select the tool setting mode
SH is only active if R1 and F-Terminals are off.
D-Terminals at 1E, 1EG V7A, V7C / 1R, 1RG V2, V3C
Selection of the speed during the automatic mode
Switch over between automatic mode (Dx at 24V)
and tool-setting function mode (D = off)
M-/ MT-Terminals:
muting of the module function to connect to 24V if
necessary only
R1-Terminal: To select the semi-automatic mode
R1 is only active if the D-, M- respectively MT are off.
SH-Terminal: To select the tool setting mode
SH is only active, if D-, M- respectively MT are off.
All terminals are10ms switch on and 1s switch off
delayed.
Funktion der LED Anzeige
Function of LED display
LED
LED
Mitte
Betriebsspannung
Aus
middle
Power supply
Off
links
Stillstand
Bewegung
left
Standstill
Movement
rechts
V < Vmax
V > Vmax
right
V < Vmax
V > Vmax
rechts Im Stillstand
Nach V > Vmax right
During
standstill
After V > Vmax
links/rechts Im Stillstand
Kein
Messsystem
left/ right
During
standstill
No measuring
system
links oder
rechts
Eingangsmodul
Spur A oder B
fehlt
left or right Input module
No trace A or B
links oder
rechts
Ausgangsmodul
Interner Fehler left or right Output module
Internal error
Verhalten bei Störungen
Performance on failure
Ausgänge
Ursache und Abhilfe
Outputs
Reason and repair
Einstellung der
Eingangsmodule
Adjustment of input
modules
Inkrementell / Resolver?
Incremental or resolver?
aus
Kein Messsystem
off
No measuring system
Falscher Kabeladapter
wrong cable adapter
Quittierung
Fehlerbeheben
Betriebsspannung 2s aus
Quit
remove failure
Power supply 2s off
