11 Installation and removal
SAFEONE DN3PD2 Manual 37
11 Installation and removal
11.1 Installing a module
11.1.1 Overview

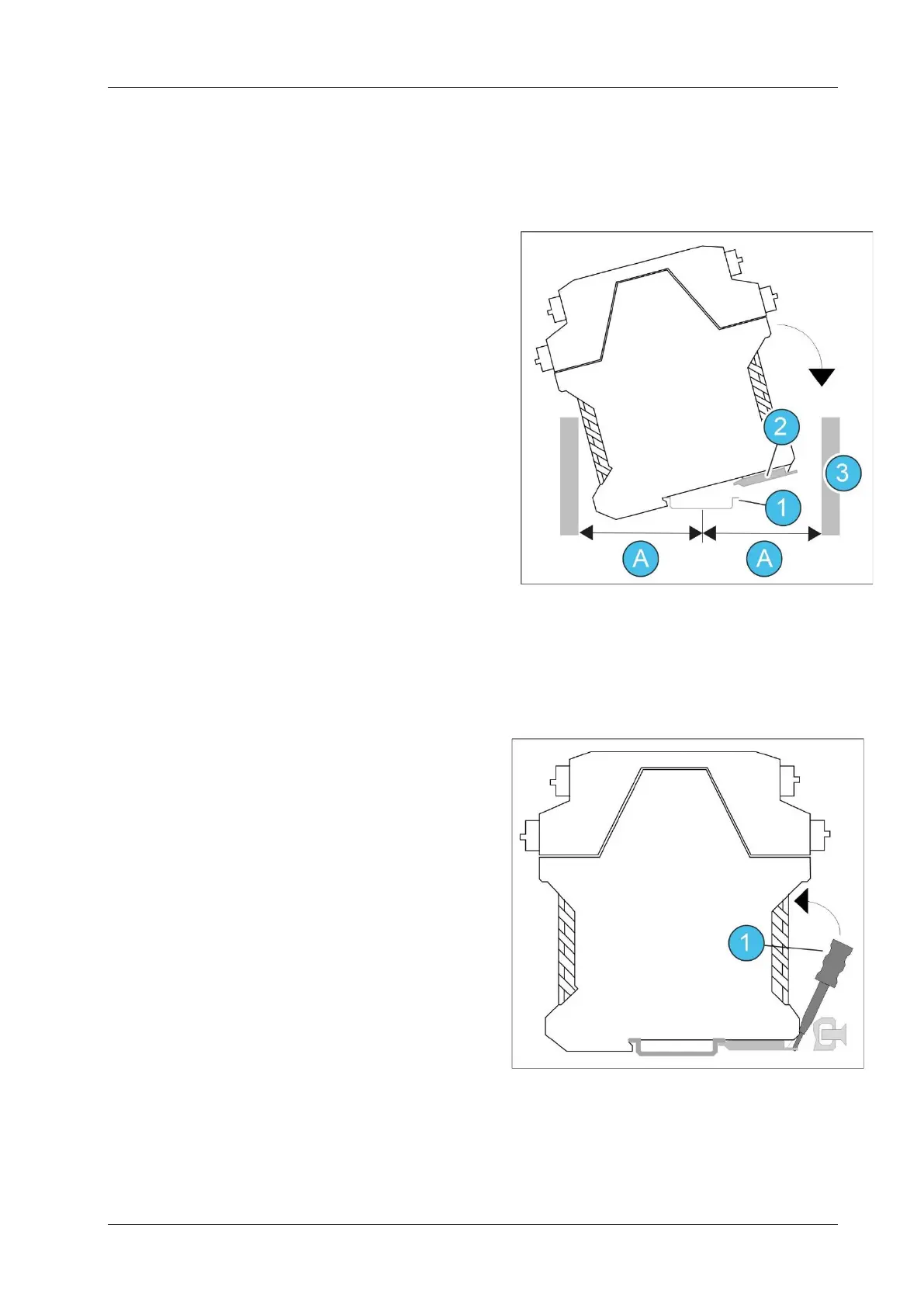

(A)
70-75 mm (2,756-2,953 in)
(1)
Top hat rail
(2)
Locking slider
(3)
Cable duct
Procedure
► Hook the module onto the top hat rail (1) and
press it downward.
◄ The locking slider (2) engages under the top
hat rail.
11.2 Removing a module
Procedure
► Use a screwdriver (1) to move the locking
slider away from the module.
► Move the module upward and remove it
from the rail.
