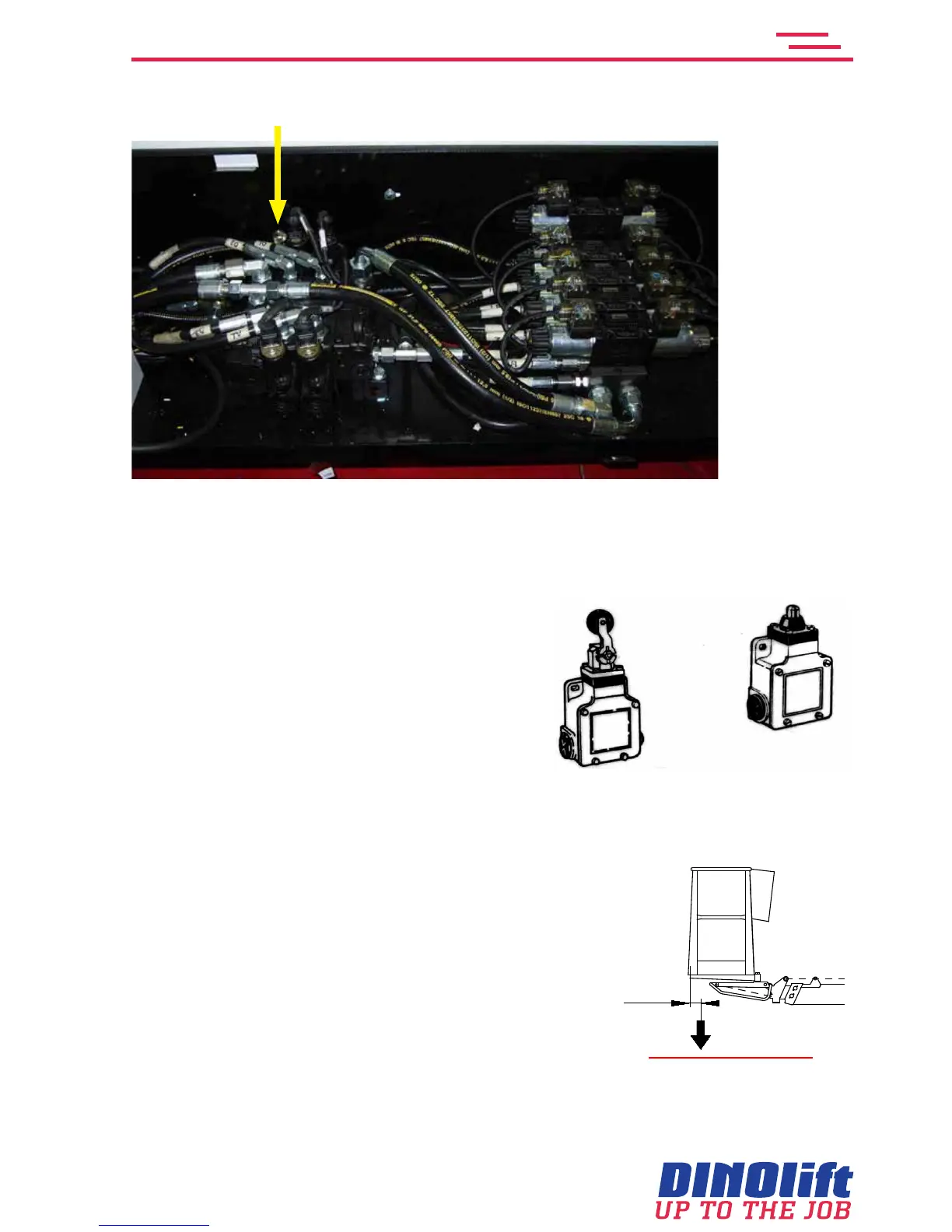

1. connect the pressure gauge to brake pressure measuring point
1. duringtravellingthepressureshouldbe2,5MPa(250bar)
4.3.13. Inspection of the condition and fastening of safety devices
Check the attachment and the external condition
of the limit switches.
• chassis(1pc)(transportpositionoftheplatform)
• safetydevice(2pcs)
• supportoutriggers(4pcs)
• boom(4pcs)
• attachmentframe(2pcs)(drivingwiththeboom
inhorizontalposition)
4.3.14. Inspection of correct operation of safety devices
Check the operation of the safety devices operated from the chassis control panel:
1. Lift the platform up from the boom support
• support outriggers must not work
2. With the boom lifted test the following
• emergency stop
• emergency descent:
retraction of telescope
lowering of articulated arms
lowering of the boom
3. Lower the boom to boom support and lift the outriggers
• the boom must not operate
4. lowertheoutriggers(levelthelifttooperatingposition)
5. put a test load onto the work platform according to the picture:
205RXT II: w = 215 kg
240RXT II: w = 80 kg
180XT II = 215 kg
100 mm
