1.3 Product Appearance

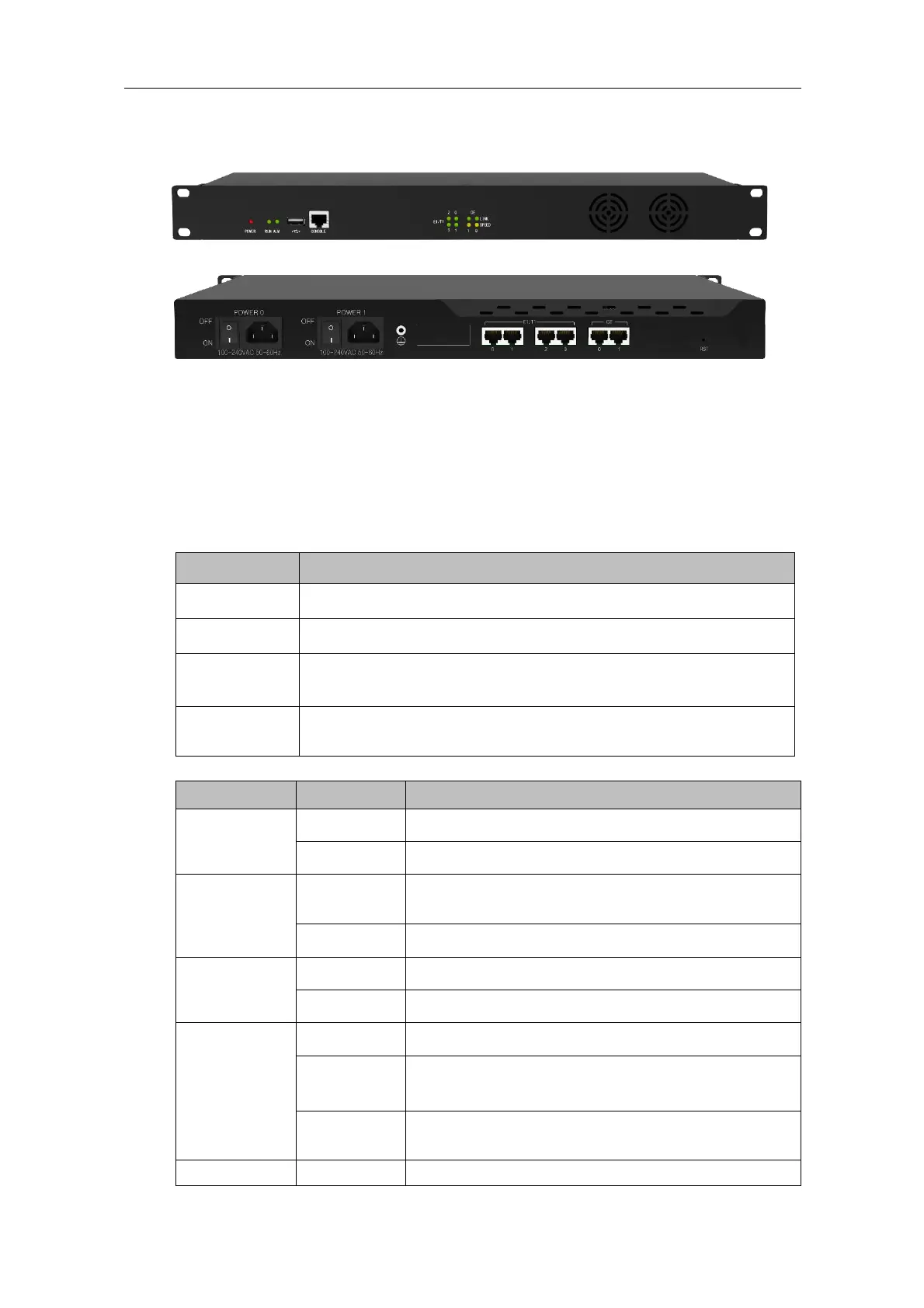

Front View
Back View
1.3.1 Description of Ports and Indicators
MTG1000 has one MCU board and five DTU boards, which can be inserted or pulled out.
Each board has four E1/T1 ports (from 0 to 3 in sequence), and there are indicators to show
the status of each E1/T1 port.
MCU Board
Interface
Description
PWR
Connected to the power adapter, 110~240VAC, 50~60HZ, 1.2A
Port0-Port1
E1/T1 ports
GE0
Ethernet Interface for Services, standard 10/100BASE-TX Ethernet interface.
Default IP address is 192.168.1.111, default subnet mask is 255.255.255.0
GE1
Ethernet Interface for Management, standard 10/100BASE-TX Ethernet interfaces,
Default IP address is 192.168.11.1, default subnet mask is 255.255.255.0
DTU Board:
Indicator/Port
Status
Description
PWR
Green
Power supply is working as normal.
Off
There is no power supply or power supply is abnormal.
RUN
Flash slowly
The DTU board has been inserted and identified by the
system.
Flash quickly
The system does not identify the DTU board.
ALM
Red
The gateway malfunctions.
Off
The gateway functions well.
E1/T1
Off
The corresponding E1/T1 port is not in use.
Green
The corresponding E1/T1 port is connected normally, and
can be used to receive or send data.
Flash
The corresponding E1/T1 port is connected falsely and
there are bit errors.
Link
Green
The gateway is normally connected to network.
