Dinstar MTG200 - Indicators & Interfaces

Power Indicator
Running Indicator
Alarm Indicator

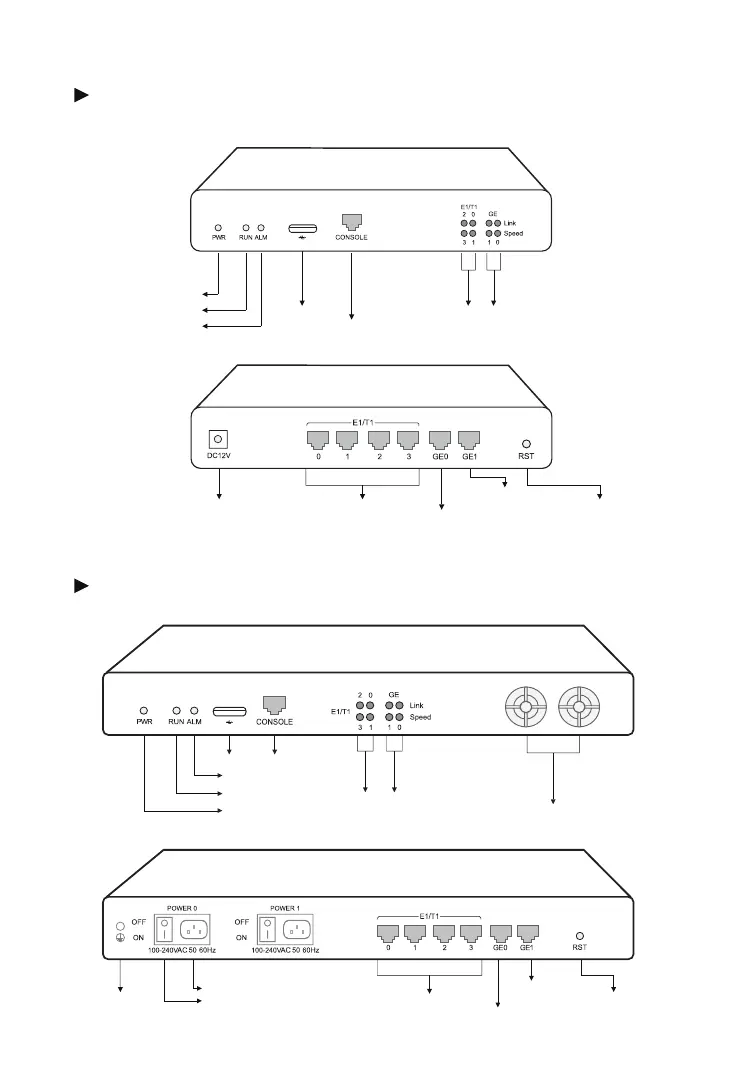

Indicators & Interfaces
MTG200
MTG1000
3
Power Jack
E1/T1 Ports
Network Port for
Management
Network Port for
Services
Cooling Fan
Network Link Indicator
Network Speed Indicator
E1/T1 In-use
Indicator
Power Indicator
Alarm Indicator
Running Indicator
/ /
Power Switch
Power Jack
Network Link Indicator
Network Speed Indicator
E1/T1 In-use
Indicator
Console Port
USB Interface
Reset Button
USB Interface Console Port
Grounding Lug
Reset Button
Network Port for
Services
Network Port for
Management
E1/T1 Ports
