25
© 2008 Directed Electronics. All rights reserved.
H3/7

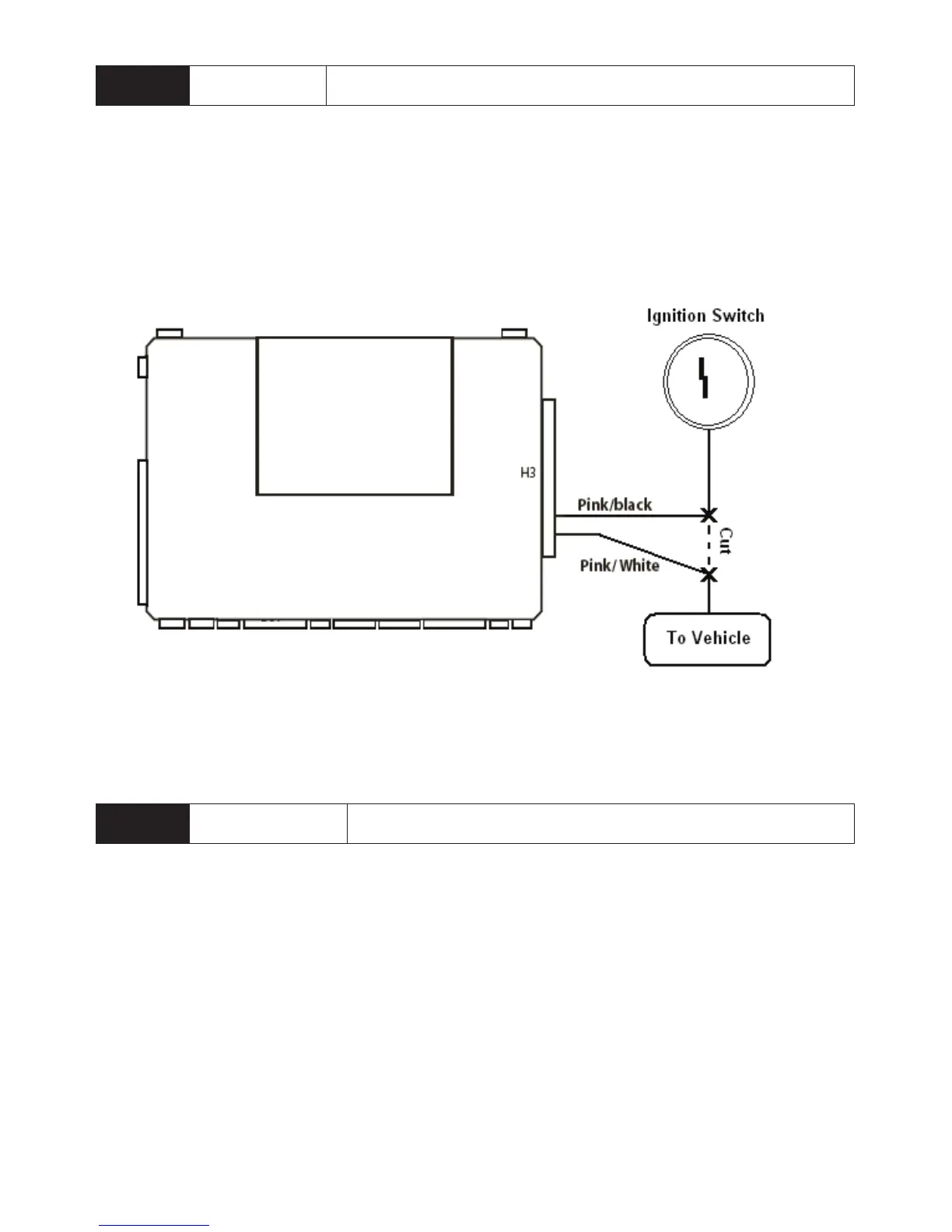

PINK/BLACK FLEX RELAY INPUT 87A key side (if required) of FLEX RELAY
This wire is used when an ignition switch isolation on the vehicle is necessary.
This is common on Toyota and Nissans which required the use of Tech Tip
document #1077. (See menu # 3 Feature 8 for programming options) See the
diagram below for more wiring detail.)
H3/8
RED/BLACK (+) FUSED (30A) ACCESSORY/STARTER INPUT
This wire is the polarity feed to the accessory and starter relays.
