Wire connection guides
➤ Primary harness (H1)
H1/1

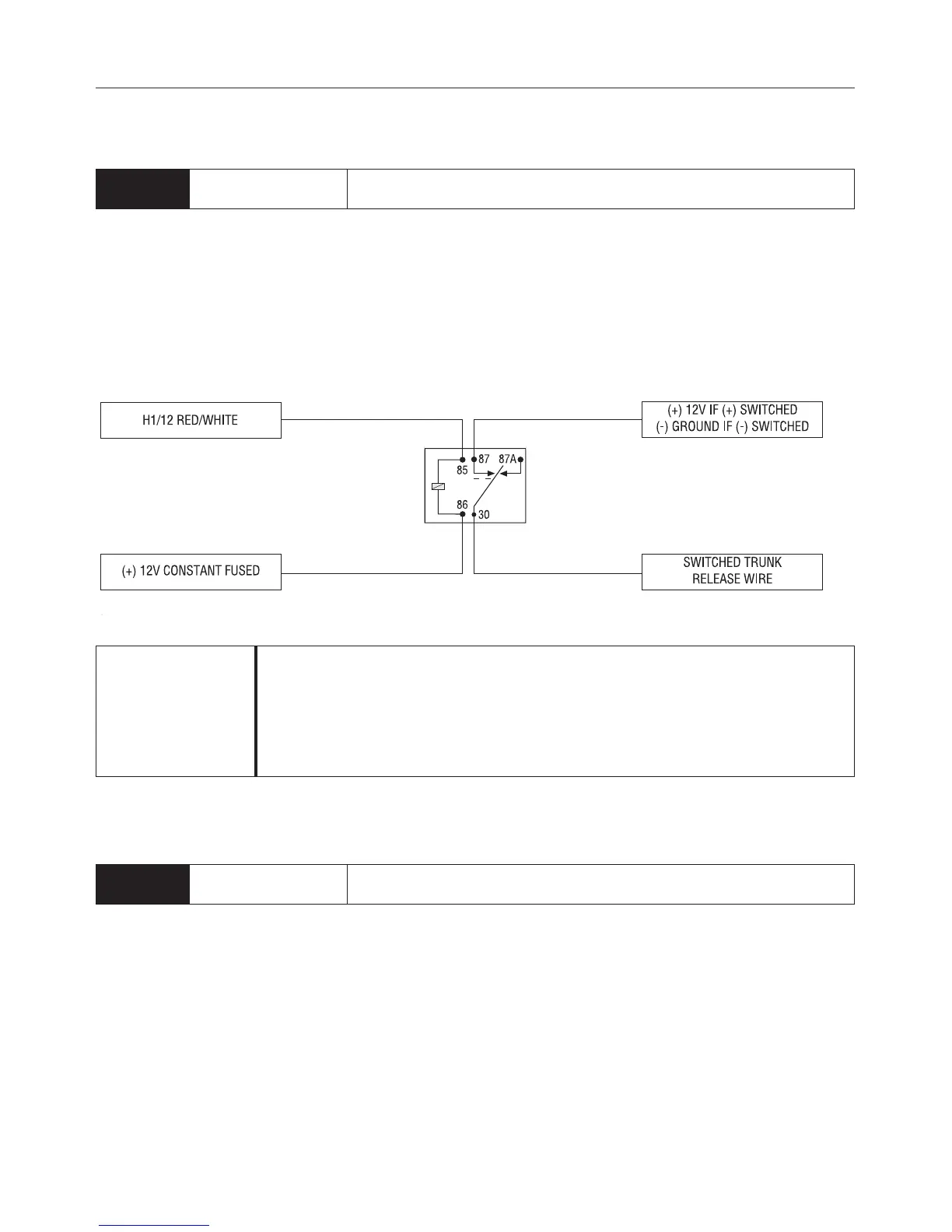

RED/WHITE (-) 200mA TRUNK RELEASE OUTPUT
When the system receives the code controlling trunk release output for longer
than 1.5 seconds, the red/white wire will supply an output as long as the
transmission continues. This is typically used to operate a trunk/hatch release or
other relay-driven function.
Warning! Never use this wire to drive anything but
a relay or a low-current input, supplied output is only
200mA. Connecting directly to a solenoid, motor, or
other high-current device will cause the module to fail.
H1/2
RED (+)12v CONSTANT INPUT
Before connecting this wire, remove the supplied fuse. Connect to the battery
positive terminal or the constant 12V supply to the ignition switch.
Note:
Always use a fuse within 12 inches of the point you obtain (+)12V. Do not
use the 15A fuse in the harness for this purpose. This fuse protects the module.
