Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
For Security-Only and Convenience-Only programming, see next sections.
1

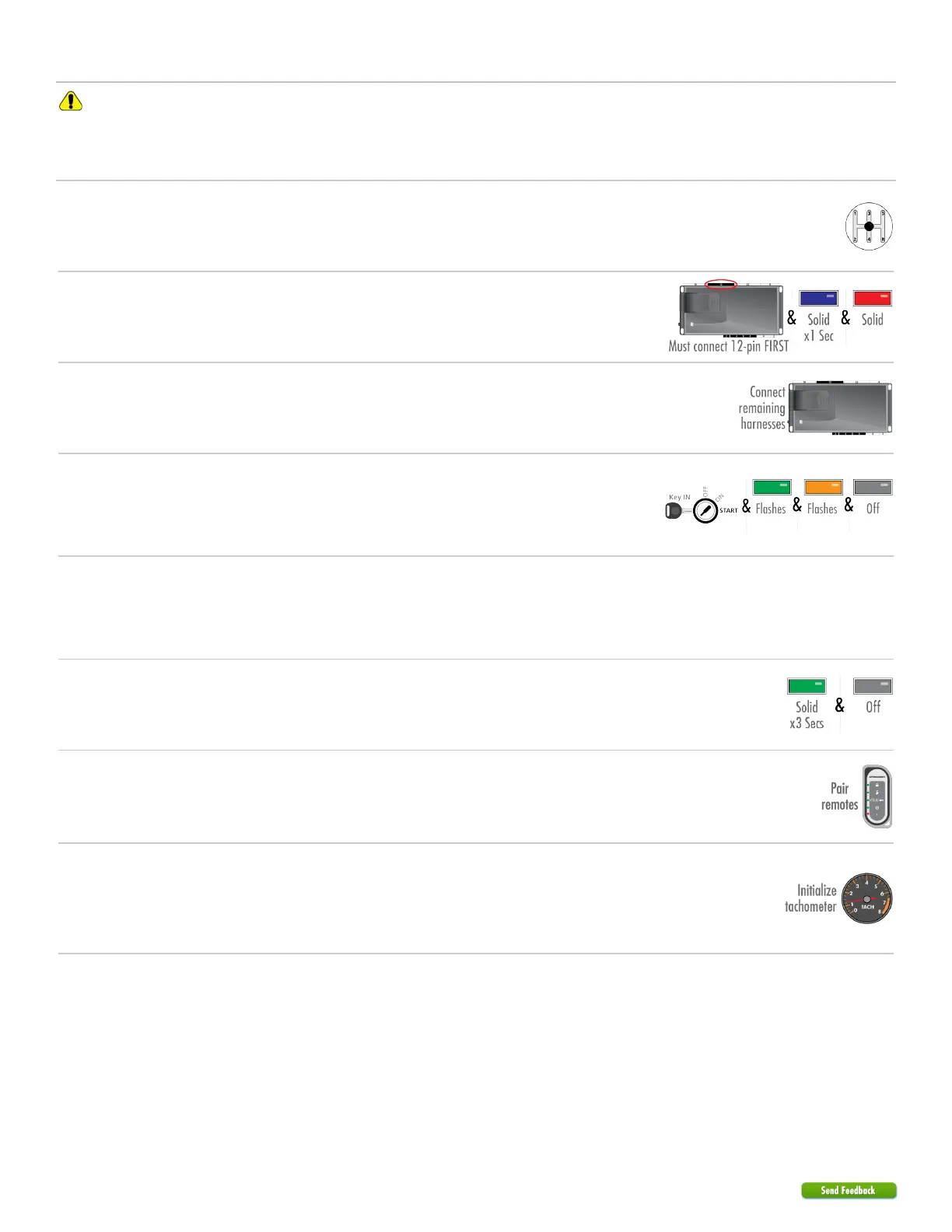

Ensure vehicle is in a safe location, and cannot move forward during programming. For
vehicles equipped with a manual transmission, make sure the gearshift lever is in the neutral
position.
2
Connect the 12-pin main power harness to the DS4+ module FIRST. The LED will turn ON
solid Blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
3
Connect the remaining harnesses to the DS4+ module.
4
Start the vehicle.
The LED will flash green.
1.
Wait for the LED to start flashing orange slowly.2.
Turn the ignition off.3.
5
Remove the module from the vehicle and reconnect it to your computer.
The website will automatically recognize that you are moving onto the second phase
of the programming sequence.
1.
Click Submit Key2GO Request.2.
6
When the configuration is completed, reconnect the module.
The LED will turn on solid green for 3 seconds, then turn off.
7
Pair remotes (if applicable).
For information on how to pair a specific remote, please refer to its corresponding owner
documentation, which can be found inside the product packaging of the complete system or
on www.directechs.com.*
8
DATA/Hardwired Tach Learning:
When using Data Tach, it is recommended to follow the Tach Learning procedure.
However, when using a Hardwired Tach, the procedure is mandatory.
For more information, refer to the Tach Learning procedure section.
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
