Directed 933.TL16

12
933.TL16 1.03.198.9 2019 Toyota RAV4
©2023 Directed. All rights

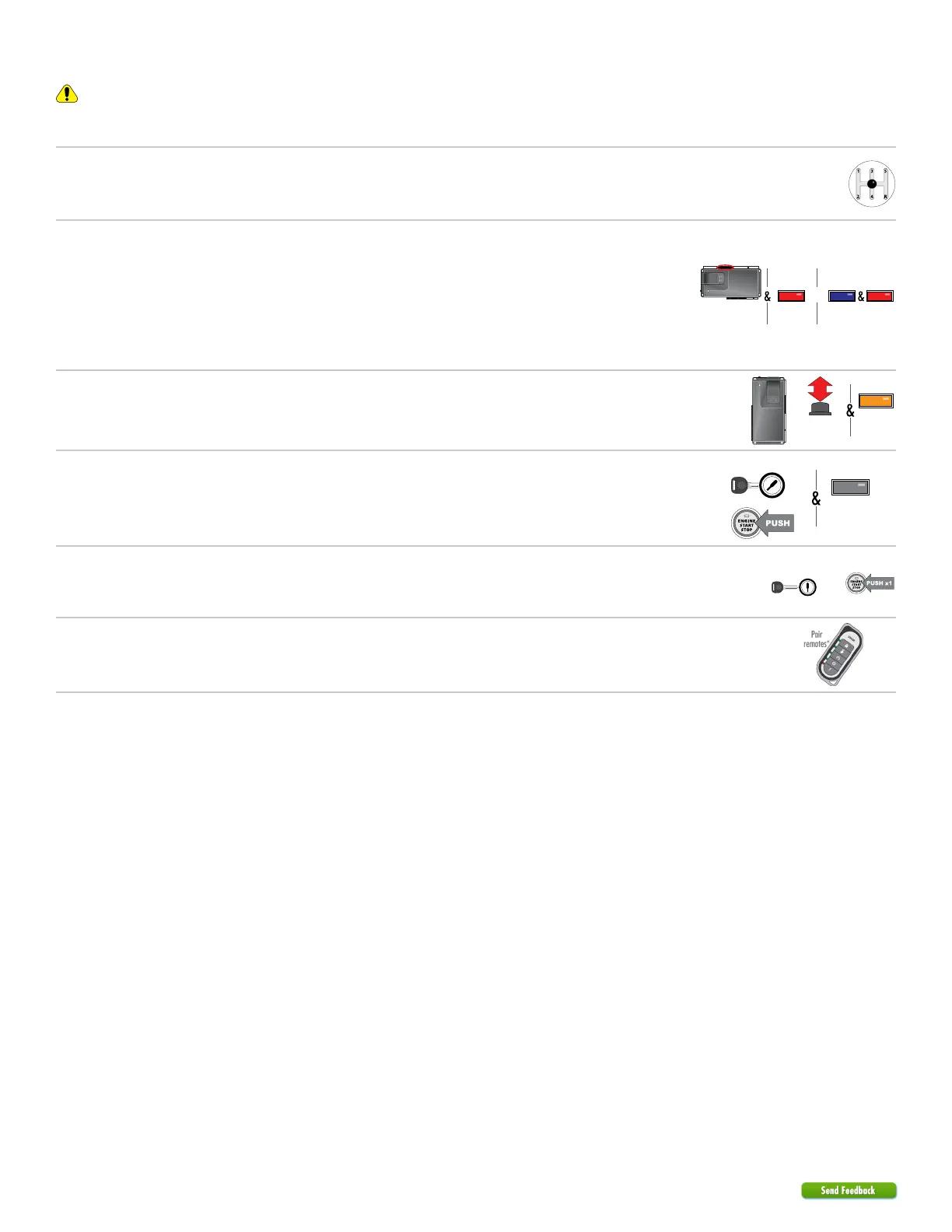

Module programming for convenience features only (skip transponder programming)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
To connect the module:
1
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
equipped with a manual transmission, make sure the gearshift lever is in the neutral position.
2
DS3+: Connect the 12-pin main power harness to the DS3+ module FIRST.
Wait until the LED turns ON solid red before proceeding to the next step.
DS4+: Connect the 12-pin main power harness to the DS4+ module FIRST.
The LED will turn ON solid blue for 1 second to confirm Bluetooth communication.
Wait until the LED turns ON solid red before proceeding to the next step.
4 2442
22 810 12
Must connect
12-pin FIRST
SolidSolid
DS3+ DS4+
Solid
1 Sec
OR
3
1. Connect the remaining harnesses to the module.
2. Press the programming button 5 times.
The LED will turn on solid orange.
4
Start the vehicle and wait until the LED turns off.
START
Key IN
ON
OFF
Off
5
Turn the ignition off.
START
Key OUT
ON
OFF
6
Pair remotes (if applicable).
* Your aftermarket remote may differ from the model shown in the illustrations.
You have successfully completed the module programming sequence.
Connect
remaining
harnesses
4 2442
22 810 12
Solid
Press &
Release x5
