User Manual –Wireless Video Bridge Gen 2
Version 1.0.0 12/16/2016 Page 25

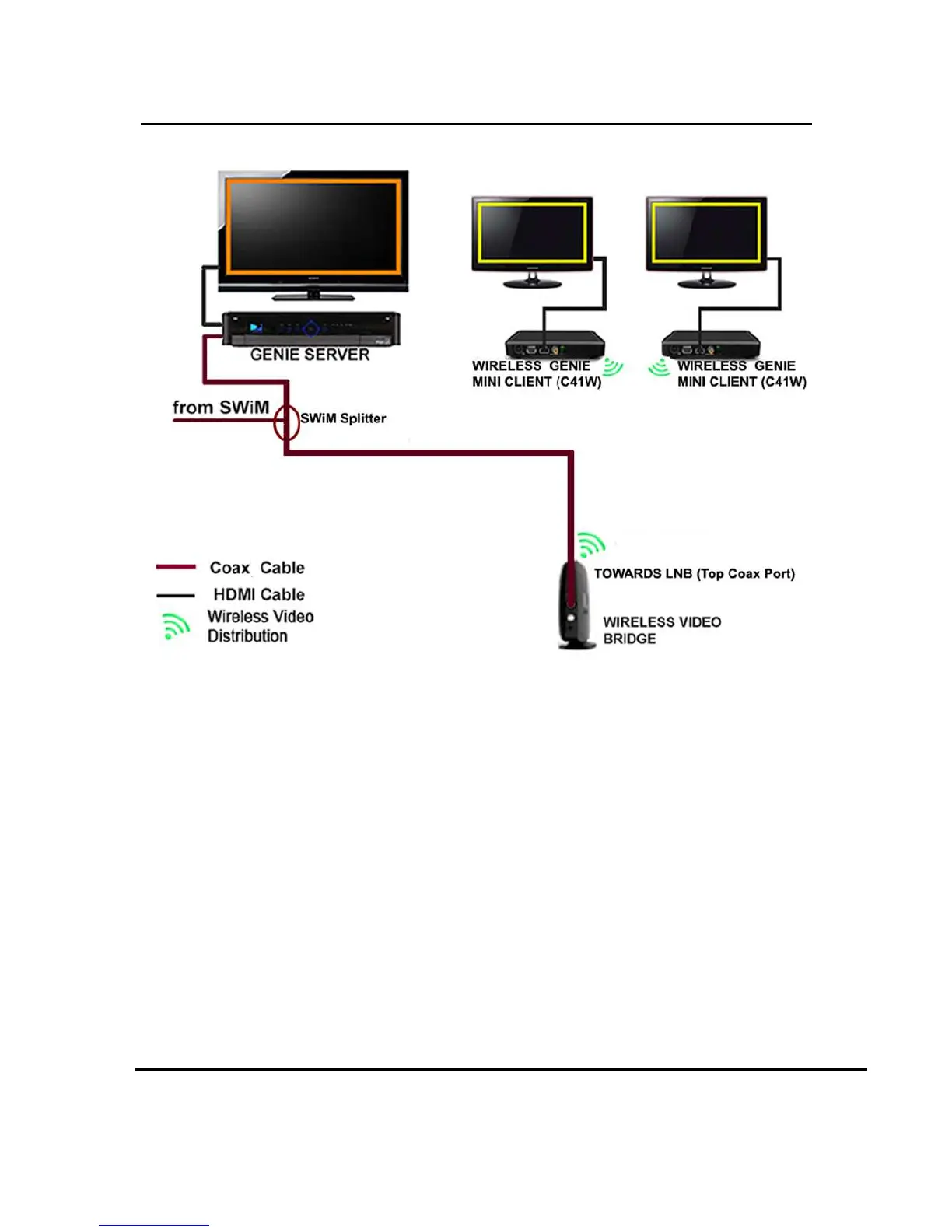

FIGURE 12: WVB AND C41W INSTALLATION DIAGRAM
The diagram on the following page depicts an alternate approved installation for a Genie, WVB2
and C61W setup:
