User Manual –Wireless Video Bridge Gen 2
Version 1.0.0 12/16/2016 Page 8

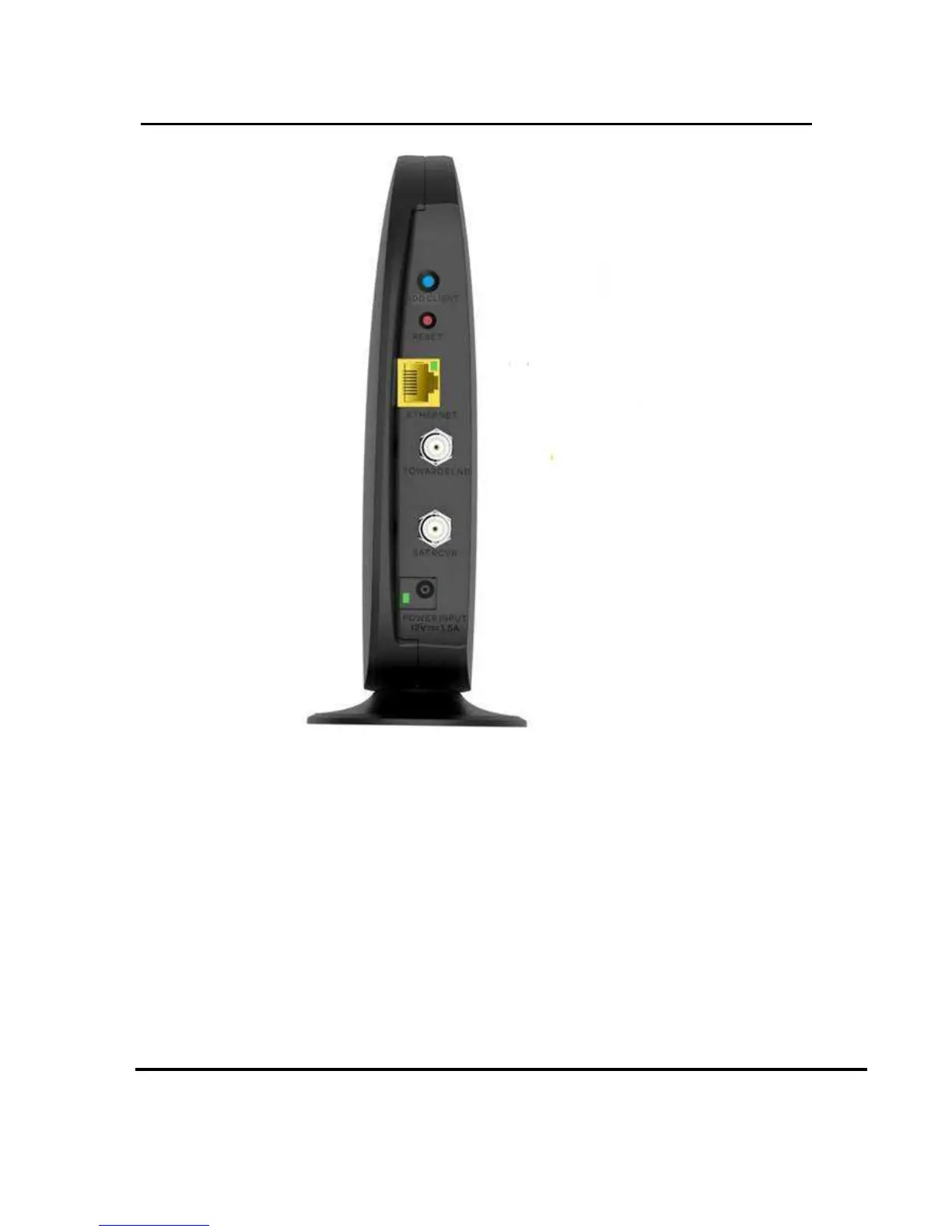

FIGURE 2: WVB - REAR PANEL
3. The rear panel contains
• Red reset button
• Add Client button
• Ethernet port
• Two Satellite in F connector
• DC power Inlet connector matching EPS10 external Power supply
• A green power indicator LED.
