Allure Series sensor series (no more than 2 of which are equipped with a CO
2
sensor) and
up to 4 EC-Multi-Sensor series can be connected in total.
5. Up to 8 light and 8 blind/shade outputs total, provided by a maximum of 2 × ECx-Light and 2
× ECx-Blind room devices.
Subnetwork Module Connection
The following sections will provide further information needed to connect and configure the
subnetwork devices such as cable type, cable length, wiring, data bus termination, device
addressing, and more.

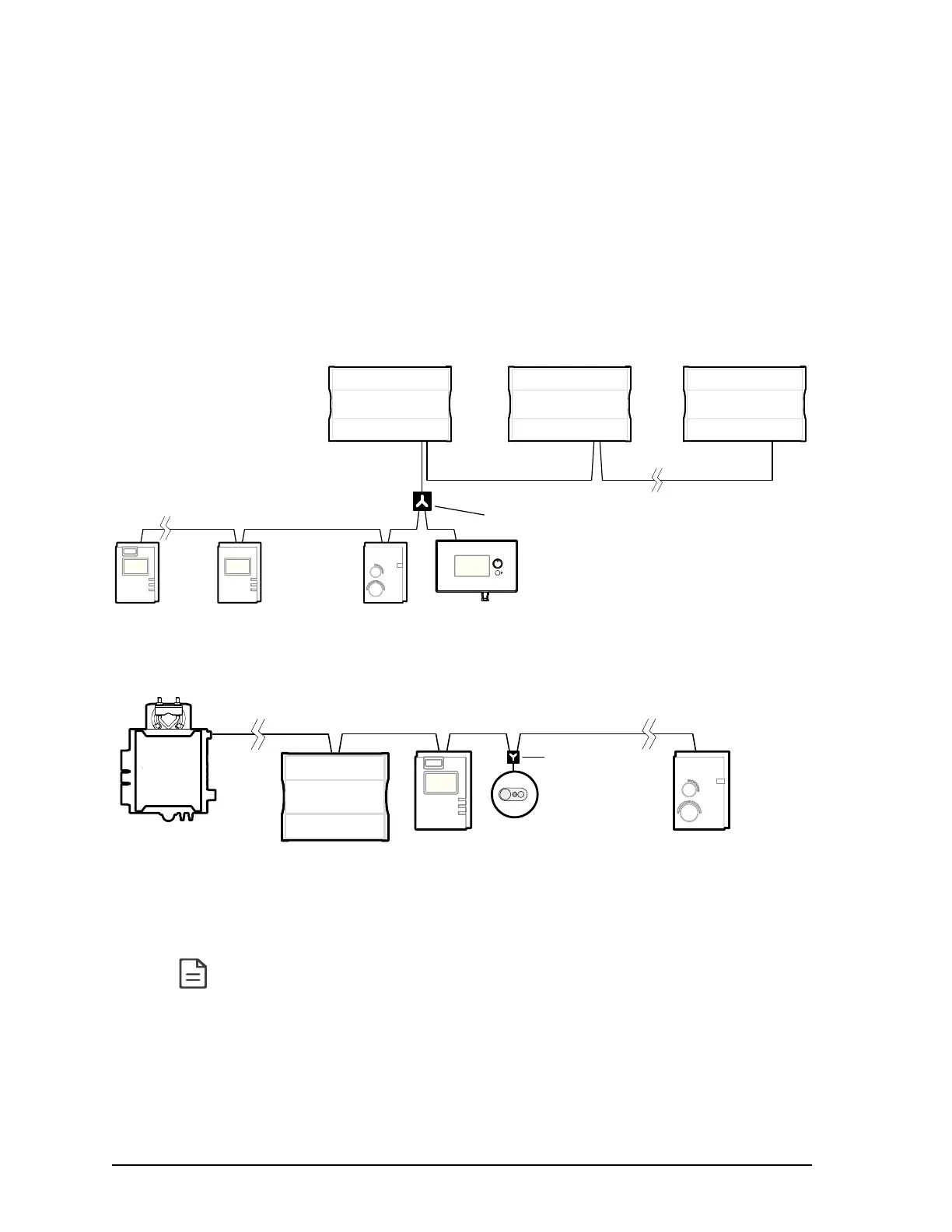

Figure 42: Subnetwork Module Connection to ECB-600 / ECL-600 Series Controllers Example
Figure 43: Subnetwork Module Connection to ECB/ECL Series
1
Controllers Example
1. This includes the following models only: ECB/ECL-VAV Series, ECB-PTU / ECL-PTU Series,
ECB/ECL-103, ECB/ECL-203 Series, ECB/ECL-300 Series, ECB/ECL-400 Series
For use with an ECB-600 / ECL-600 Series Controller Only
2- Wire Subnetwork BusCat 5e Cable Subnetwork Bus
Typical ECx−4XX Series
Extension I/O Modules
Typical ECB−600 /
ECL−600 Controller
Typical ECx−4XX Series
Extension I/O Modules
ECx-Subnet
Adapter
ECx-Display
Typical ECB /
ECL Controller
Subnetwork Bus: Typical Connection for Room Devices
For use with any non-ECB-600 Series or non-ECL- 600 Series;
For example, the VAV series (shown)
Cat 5e Cable Subnetwork Bus
Light or Sunblind
Expansion Module
Typical Room Devices
ECx-Subnet
Adapter
When the Allure EC-Smart-Vue sensor is used with certain controller models, the
subnetwork data bus can extend the LAN to the Allure EC-Smart Vue sensor to pro-
vide convenient network access. See Connecting to the LAN through an Allure EC-
Smart-Vue Sensor on page 102.
