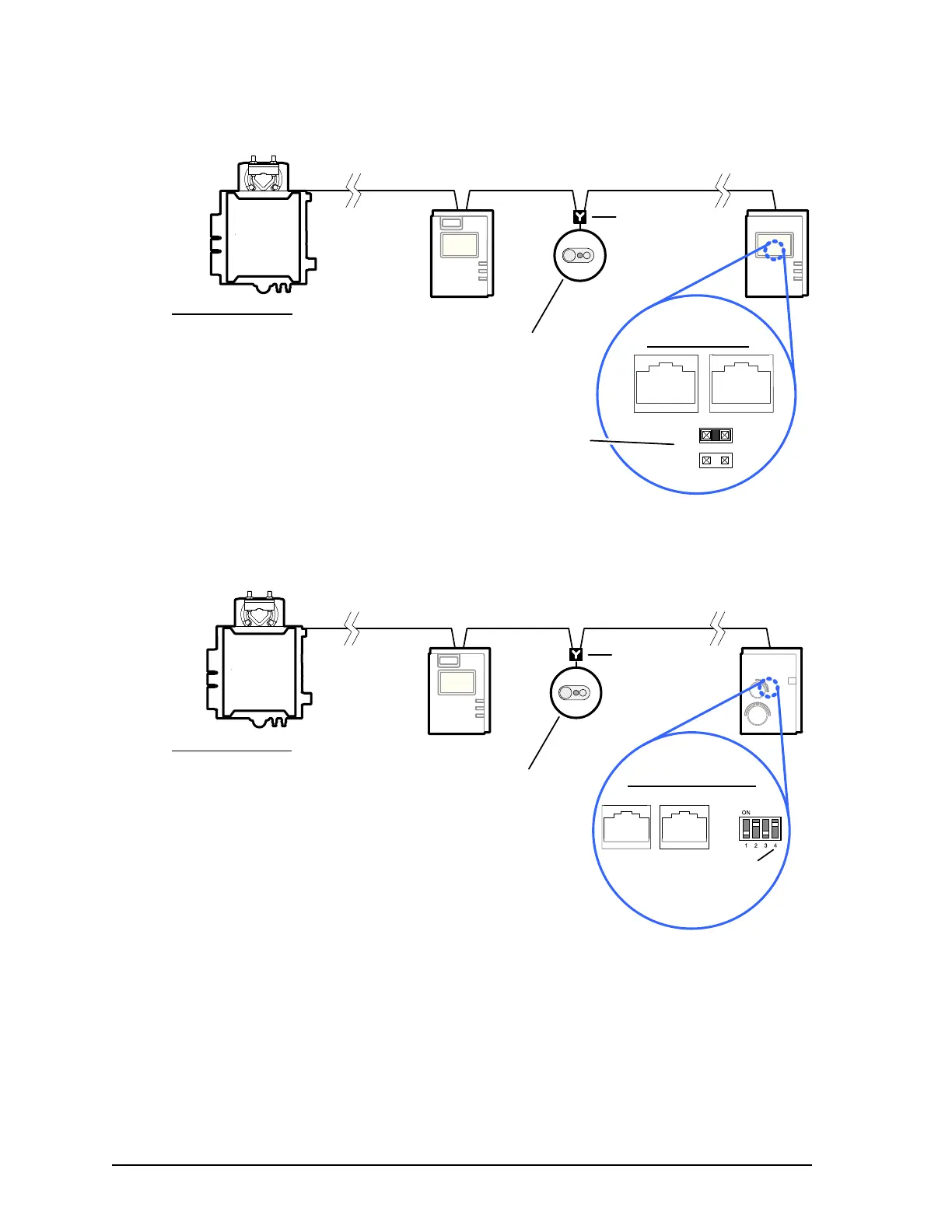

Figure 51: Setting the EOL Terminations on the Cat 5e Cable Subnetwork Data Bus for the ECB/ECL-

VAV Series and ECB/ECL-103 to -400 Controllers

Figure 52: Setting the EOL Terminations on the Cat 5e Cable Subnetwork Data Bus for the ECB/ECL-

VAV Series and ECB/ECL-103 to -400 Controllers (Allure EC-Smart-Comfort)

Typical Room Devices

Cat 5e Cable Subnetwork Bus

EOL set to ON

at the last

sensor at the

end of the Bus

EOL

OFF

Controller Series:

· ECL-VAVS /

ECL-VAV

· ECL-PTU

· ECL-103

· ECL-203

· ECL-300

· ECL-400

Back of Allure

EC-Smart-Vue

· ECB-VAVS /

ECB-VAV

· ECB-PTU

· ECB-103

· ECB-203

· ECB-300

· ECB-400

Remove the

EOL jumper

ECx Subnet

Adapter
