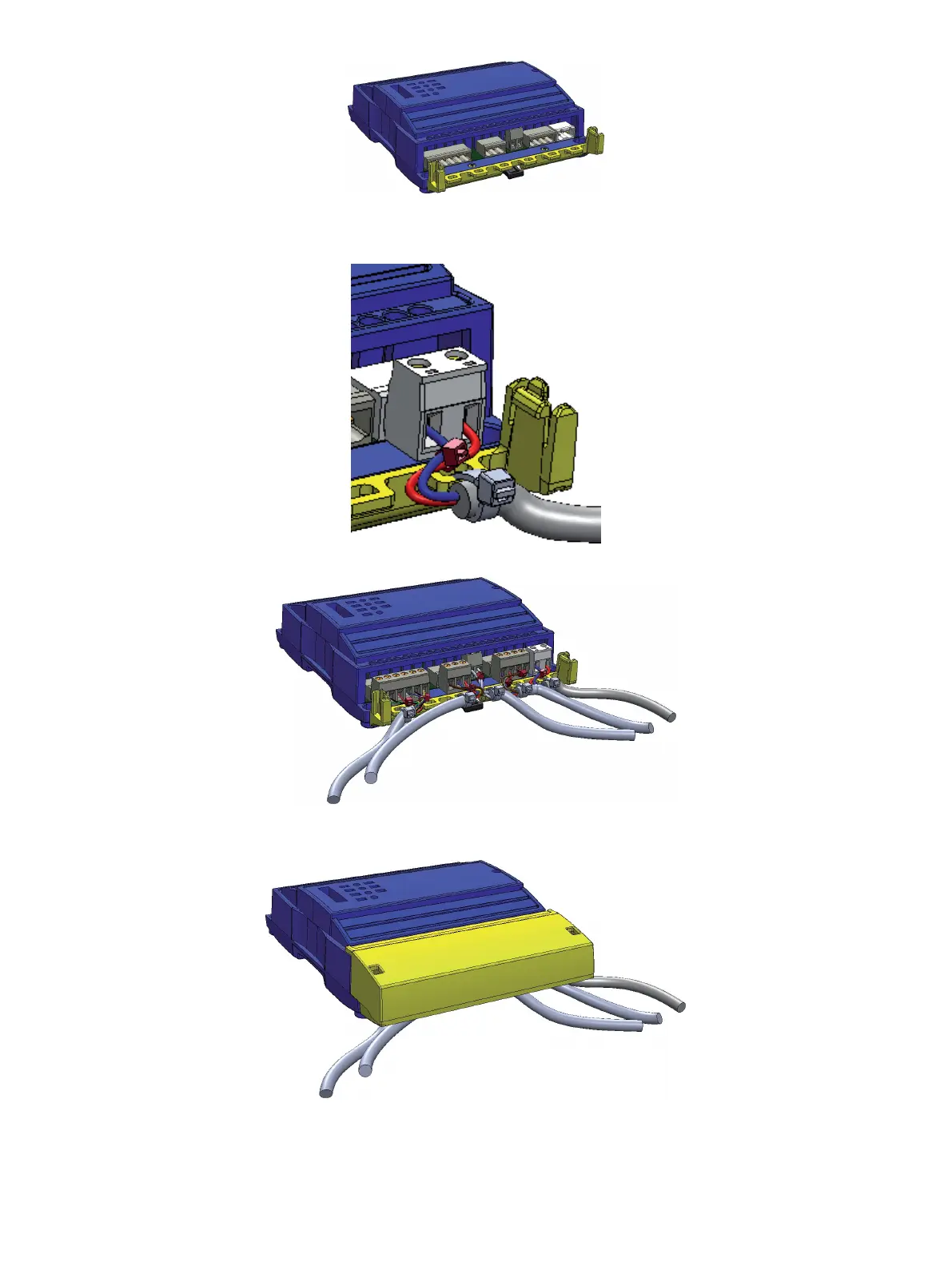

Figure26: Installed strain relief
Tie wraps can then be used to group wires together and attach them securely to the strain relief in an effort to relieve undue tension. Distech Controls
recommends using 0.184’’ (4.6 mm) wide tie wraps with a 50 lbs (220 N) tensile strength to attach wires to the strain relief.
Figure27: Attaching wires together and to the strain relief - detail
Figure28: Attaching wires together and to the strain relief - completed
If necessary, the terminal block cover can then be clipped onto the strain relief as shown below.
Figure29: Installing the terminal block cover
