Distech Controls ECL-PTU Series Installation Guide

5 / 21

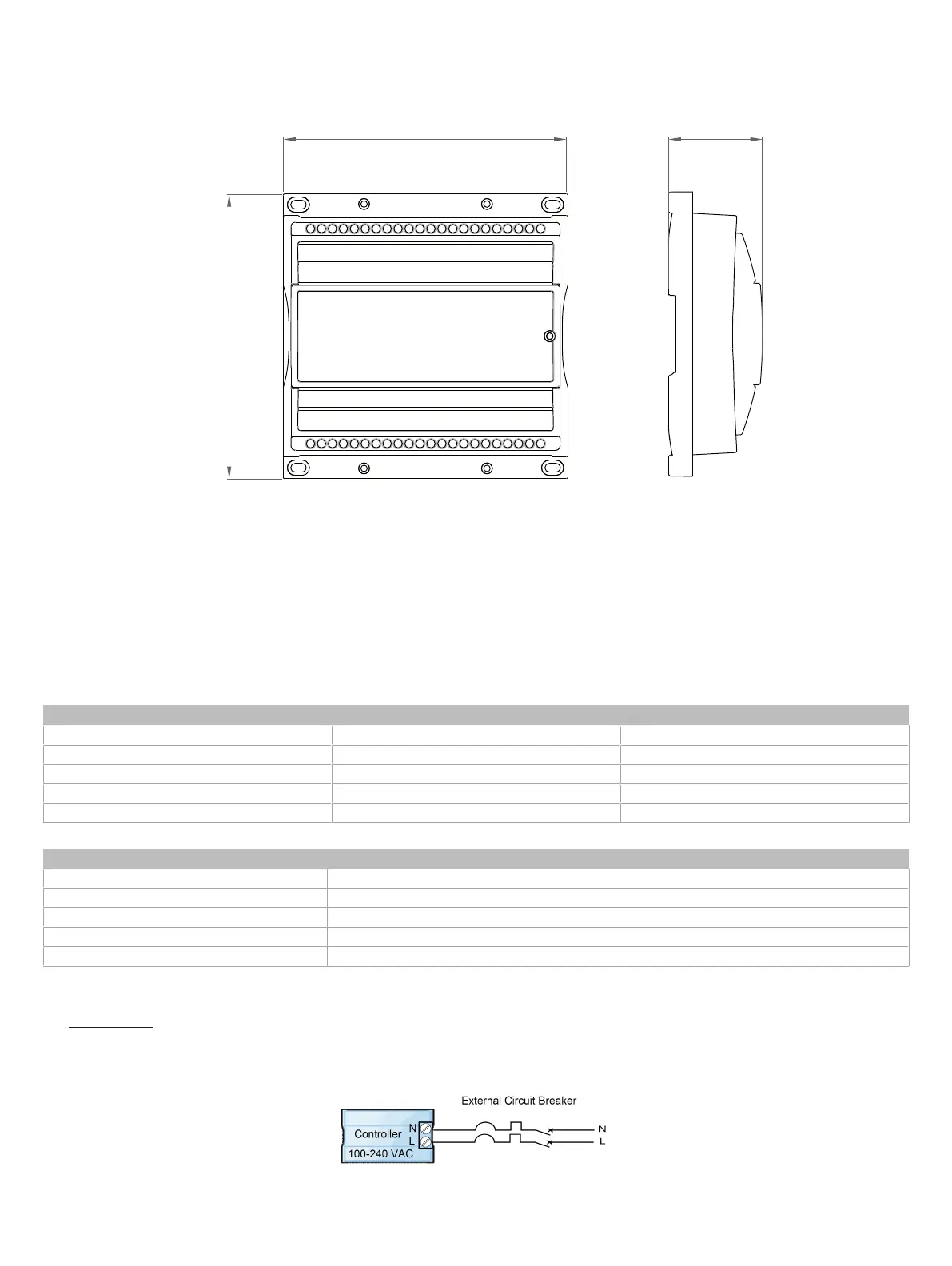

Device Dimensions
132 (5.2)
132 (5.2)
44 (1.7)
mm (inches)
Figure5: Front view and side view of the enclosure
Power Wiring
Voltage
:
100-240 VAC; -15%/+10%; 50/60 Hz
Overvoltage Category II - 2.5 kV
Model Typical Consumption Max. Consumption
ECL-PTU-107 < 0.9 W + all external loads 4.0 A
ECL-PTU-207 < 0.9 W + all external loads 4.0 A
ECL-PTU-208 < 2.7 W + all external loads 3.5 A
ECL-PTU-307 < 0.9 W + all external loads 4.0 A
ECL-PTU-308 < 2.7 W + all external loads 3.5 A
Table1: ECL-PTU Controllers consumption
ECL-PTU-107 4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
ECL-PTU-207 4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
ECL-PTU-208 4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
ECL-PTU-307 4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
ECL-PTU-308 4.0 A external circuit breaker type C or 4.0 A fast acting high breaking external fuse (250 VAC min)
Table2: ECL-PTU Controllers protection
The power supply must be connected to the mains using the provided detachable connector.
The Network Guide provides extensive information and requirements for powering a controller that uses a LONWORKS network for communications. It can
be downloaded from the Distech Controls’ Documentation and Resources Portal.
Use an external circuit breaker/fuse on the mains to protect the module against power line spikes. The circuit breaker must be located close to the mod-
ule.
Figure6: Power wiring
