Distech Controls ECL-PTU Series Installation Guide

4 / 21
DIN Rail-Mounted Installation
1. Ensure the DIN rail is properly mounted on the wall.
2. Simply clip controller onto the DIN rail.

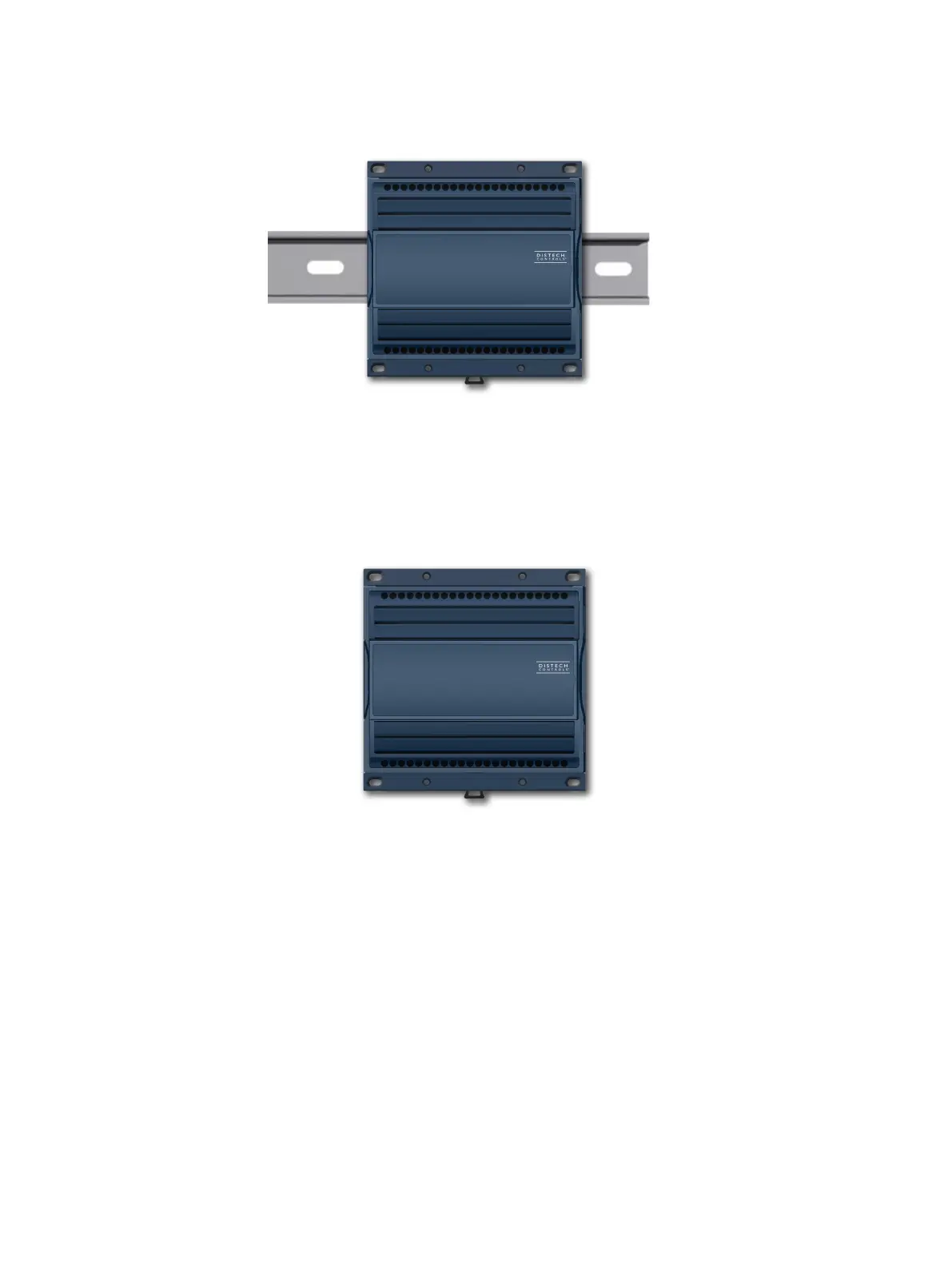

Figure3: DIN-rail mounted controller
Wall-Mounted Installation
1. Use the mounting holes to mark the location of any holes that need to be drilled.
2. Drill the holes.
3. Clean the surface and mount the controller using the appropriate screw types.
Figure4: Wall-mounted controller
