Distech Controls ECL-PTU Series Installation Guide

9 / 21
Controller Digital (Triac) Outputs
(100-240 VAC)
Digital (Triac) Outputs
(24VAC)
ECL-PTU-308 - DO5 - DO6 – DO9 – DO10
Table5: Triac outputs names and specifications
£ Triac output connectors accept wires between 1 mm² (17 AWG) and 1.5 mm² (16 AWG). Make sure the cable performances suit
the connected loads.
£ To measure the state of a triac output, an external load must be connected.
£ It is not necessary to use a fuse when the onboard 24 Vac output is being used with the triac outputs since it already has built-in
short circuit protection (ECL-PTU-208 and ECL-PTU-308 only).

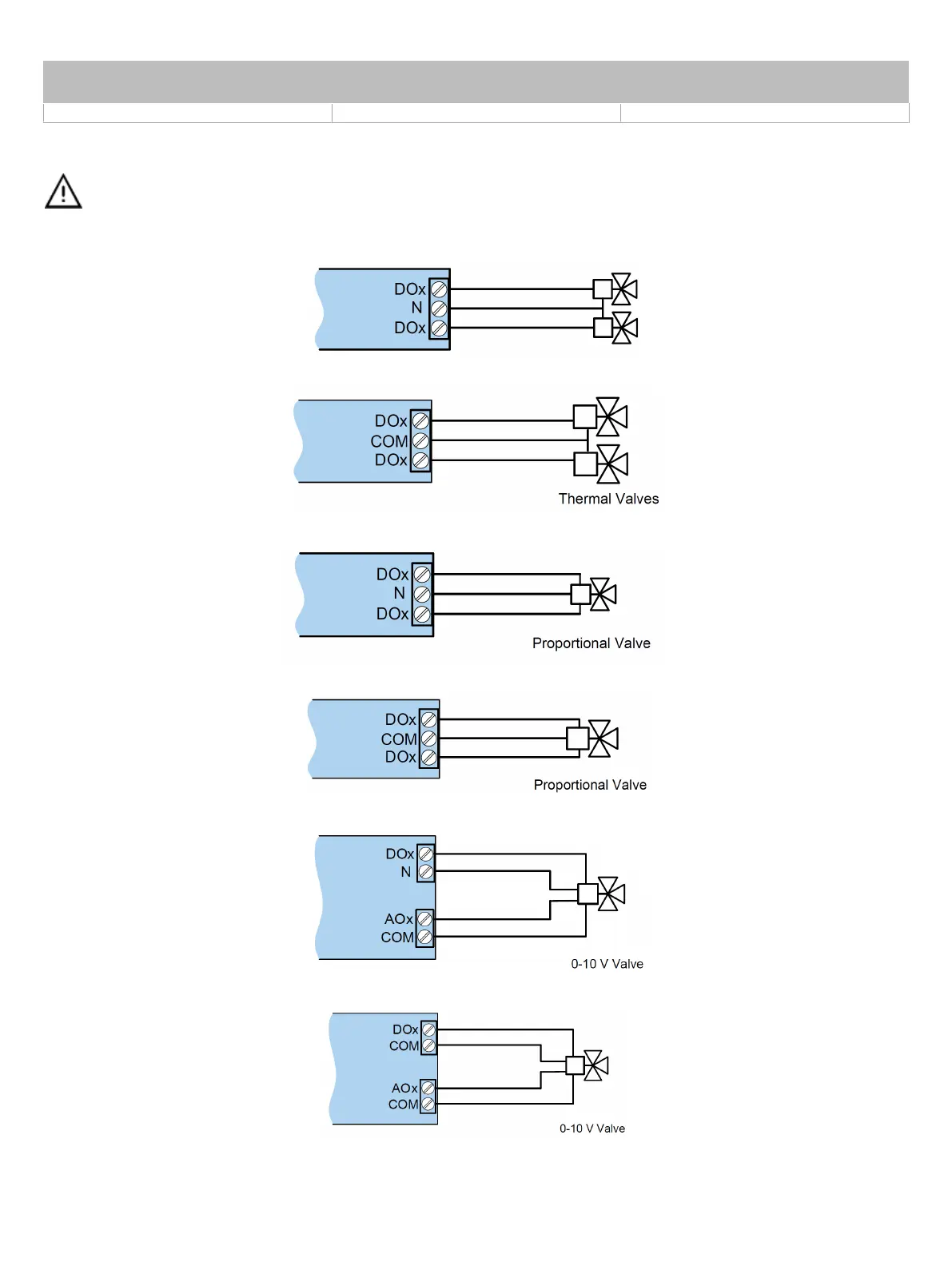

Figure15: Thermal valve wiring (ECL-PTU-107/207/307)
Figure16: Thermal valve wiring (ECL-PTU-208/308)
Figure17: Proportional valve wiring (ECL-PTU-107/207/307)
Figure18: Proportional valve wiring (ECL-PTU-208/308)
Figure19: 0-10 V controller-powered valve wiring (ECL-PTU-107/207/307)
Figure20: 0-10 V controller-powered valve wiring (ECL-PTU-208/308)
