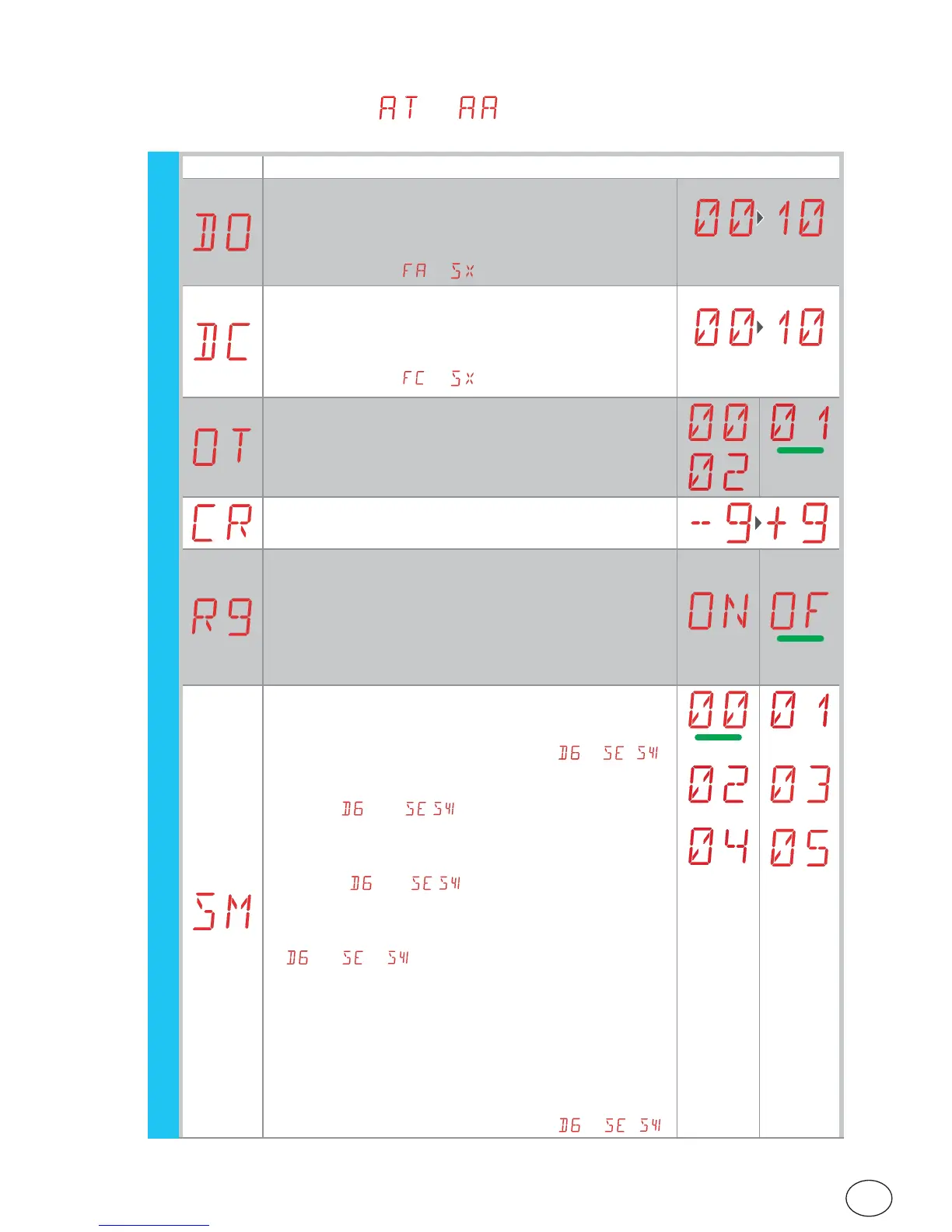

Display Description
DO - Setting of disengagement on stop during open-
ing. [mm]
00 - Minimum
10 - Maximum
N.B.: Not active if
→
02
DC - Setting of disengagement on stop during clos-
ing. [mm]
00 - Minimum
10 - Maximum
N.B.: Not active if →
02
OT - Selection of type of obstacle.
00 - Overcurrent or door stopped
01 - Overcurrent
02 - Door stopped
CR - Correction to calculated speed. [mm/s]
DO NOT USE
R9 - Enabling automatic closing after command 1-9
via radio (STOP).
ON - Enabled
OF - Disabled
When enabled (ON), after a command 1-9 via radio, the
automation carries out automatic closing (if enabled),
after the set time.
SM - Selection of operating mode of device connected
to terminals 1-6.
00 - During the operation, the opening of the safety contact
stops movement (with disengagement if → / ).
01 - During the operation, the opening of the
safety contact stops movement (with disengage-
ment if → / ). When the contact clos-
es again, the interrupted operation continues.
02 - During the operation, the opening of the
safety contact stops movement (with disengage-
ment if → / ). When the contact clos-
es again, an opening operation is performed.
03 - During the opening operation, the opening of the
safety contact stops movement (with disengagement
if → / ). When the contact closes again,
the interrupted opening operation is resumed. Dur-
ing the closing operation, the safety device is ignored.
04 - During the closing operation, the opening of
the safety contact reverses the movement. During
the opening operation, the safety device is ignored.
05 - During the closing operation, the opening of the
safety contact stops and reverses the movement. Dur-
ing the opening operation, opening of the safety contact
stops movement (with disengagement if → / ).
7.10.1 Additional AP level parameters that can be configured
(available with → enabled)
AP
