ELECTRICAL DIAGRAMS & SCHEMATICS
27

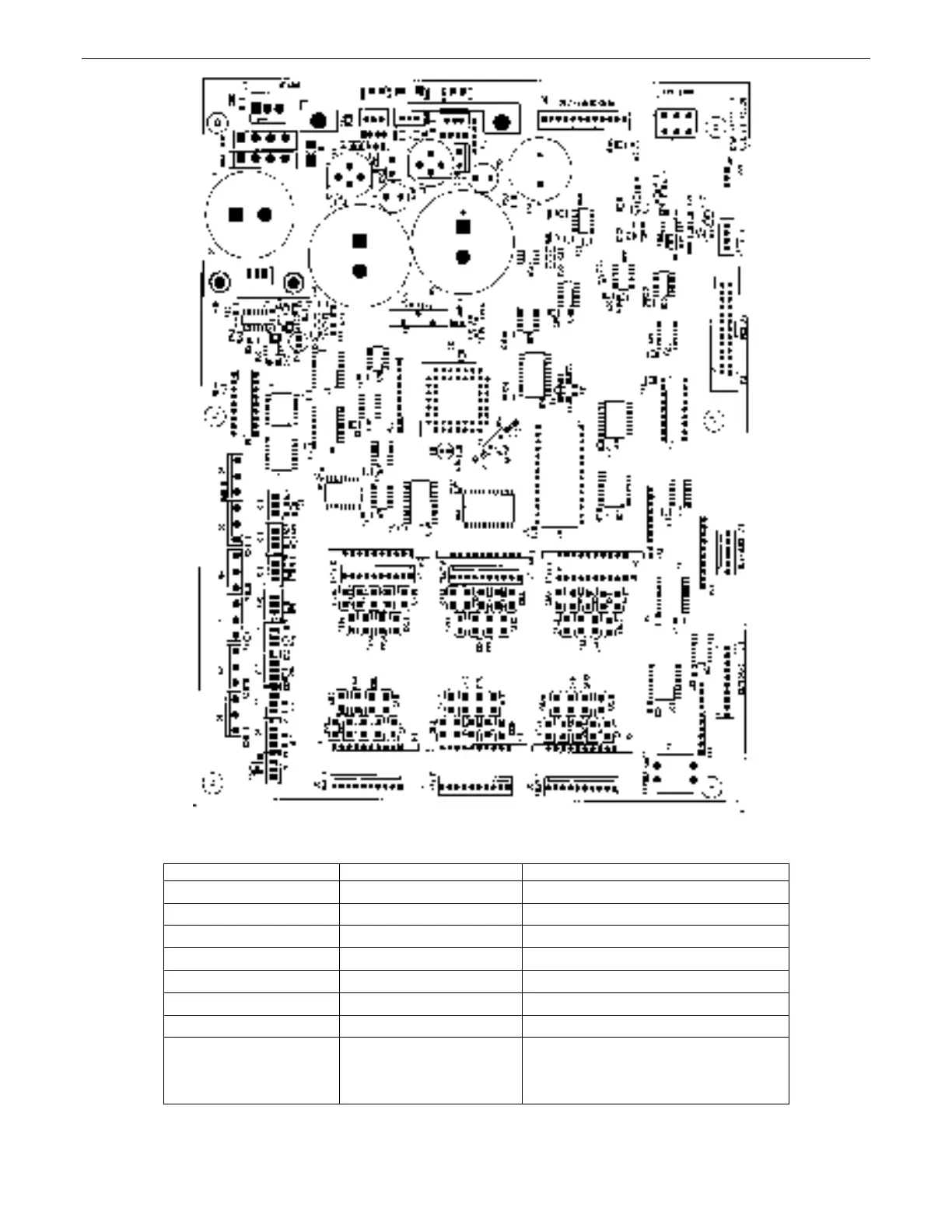

FIGURE 2 – MDB CONTROLLER CONNECTIONS
DN 55## / 54## / 35## SERIES
INDEX NUMBER CONNECTION DESCRIPTION
1 J18 Power from AC Distribution Box
2 J17 Bottle Drop Sensor
3 J16 Multi Drop Bus
4 J15 Door Interlock Switch
5 J13 Digital Display
6 J12 Temperature Sensor
7 J11 Keypad
8 TRAYS
Bottom Row
J3 – A, J4 – B, J5 –C
TOP ROW
J6 – D, J7 – E, J8 – 7
