Dixie Narco 55 Series - AC Distribution Box J2 Port Voltages

ELECTRICAL DIAGRAMS & SCHEMATICS
48
AC VOLTAGES
Between Pins
Domestic
Reading
Export
Reading
1 2 24 VAC 24 VAC
1 3 12 VAC 12 VAC
2 3 12 VAC 12 VAC
4 9 24 VAC 24 VAC
5 7 115 VAC 220 VAC
6 8 115 VAC 220 VAC

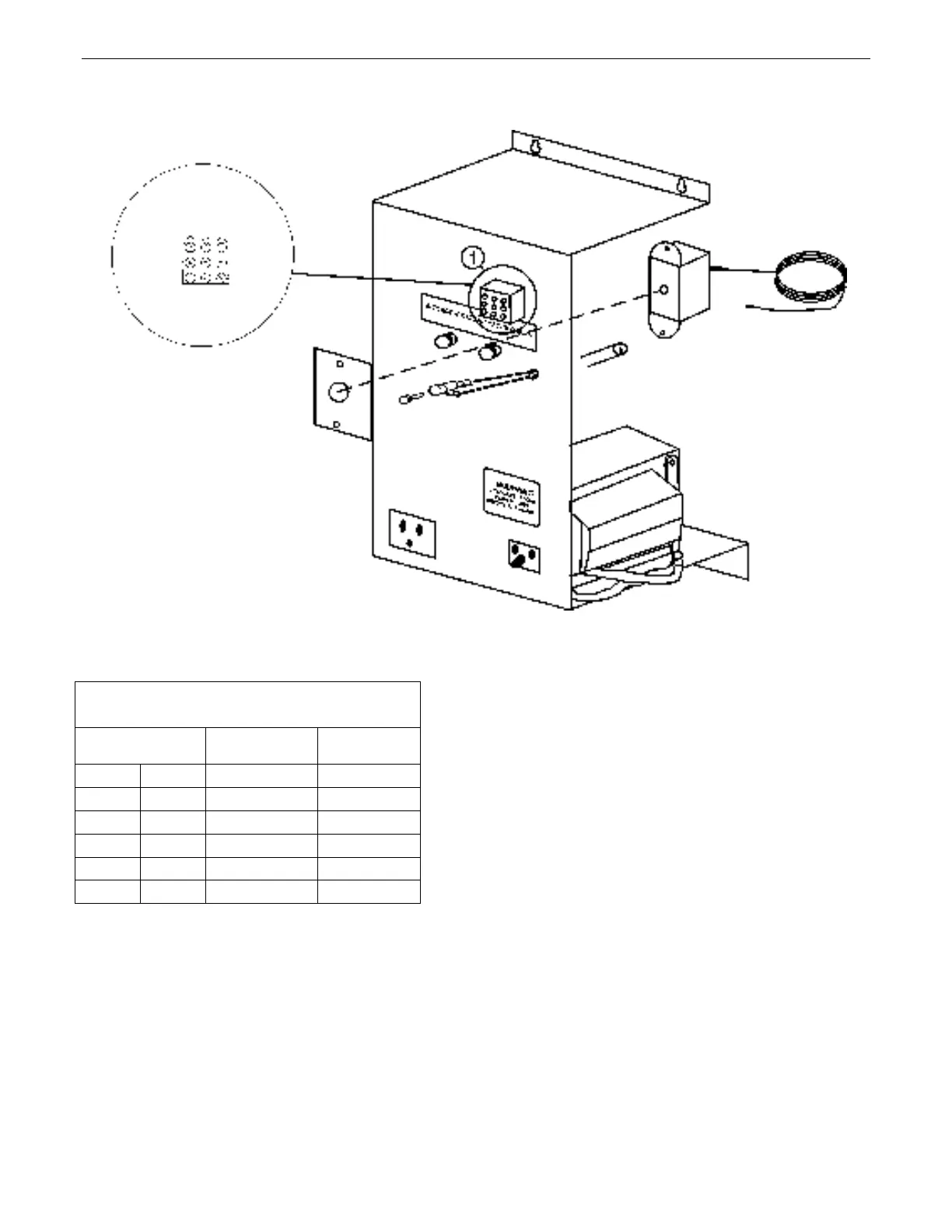

AC DISTRIBUTION BOX, J2 VOLTAGES – ITEM 1
