INSPIRE 2 SERIES User Manual

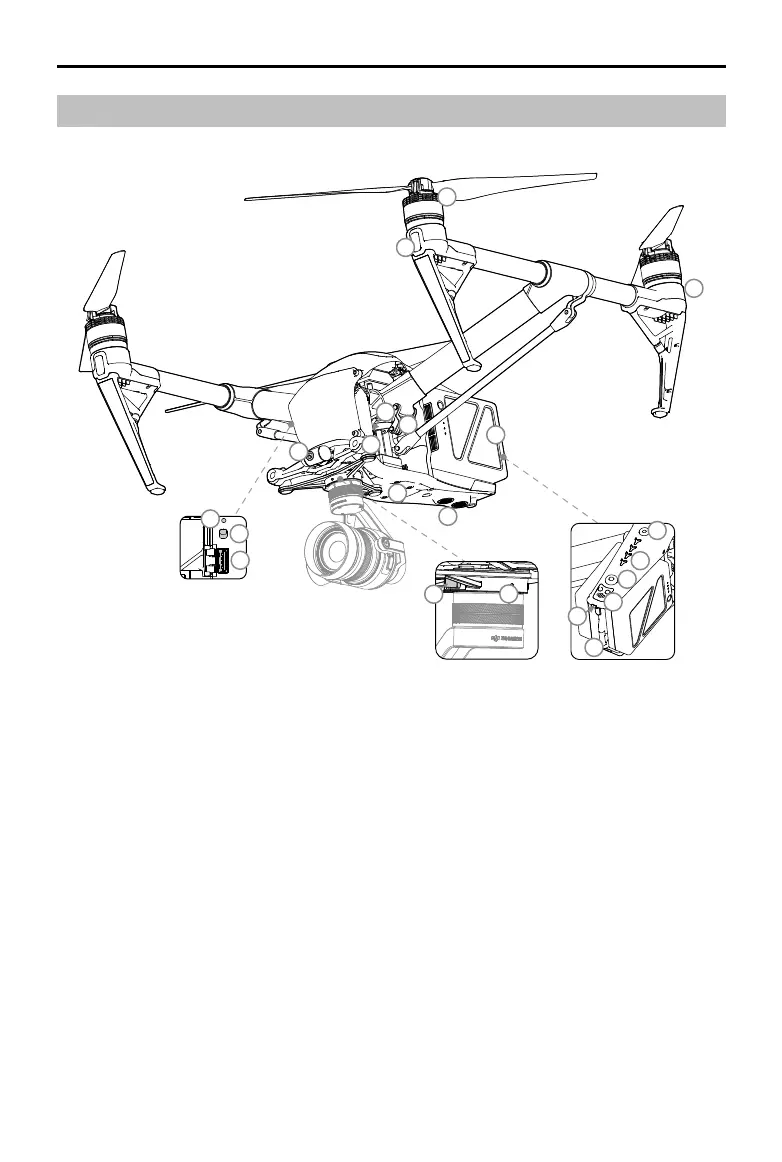

Aircraft Diagram
19
2 0
21
1
11
12
2
5
10
9
7
6
13
14
16
15
18
17
3
4
8
[1] FPV Camera
[2] Forward Vision System
[3] DJI Gimbal Connector V2.0 (DGC2.0)
[4] Gimbal and Camera Detach Button
[5] Downward Vision System
[6] Extended Device Mounting Position
[7] Transformation Mechanism
[8] Control and Processing Center
(with Micro SD Card Slot)
[9] Front LEDs
[10] Propulsion System (with Motors, Propellers, etc.)
[11] Rear LEDs
[12] Intelligent Flight Batteries
[13] Power Button
[14] Battery Level Indicators
[15] Battery Remove Button
[16] Upward Infrared Sensor
[17] Aircraft Status Indicator
[18] DJI CINESSD Slot
[19] Linking Button
[20] USB Mode Switch
[21] USB Port

dji Inspire 2 Series Specifications

General

Battery Capacity	4280 mAh
Battery Voltage	22.8 V
Operating Temperature	-20°C to 40°C
Camera Compatibility	Zenmuse X7, Zenmuse X5S, Zenmuse X4S
Transmission Distance	7 km (FCC), 4 km (CE)
Max Ascent Speed	5 m/s
Max Descent Speed	4 m/s
Operating Frequency	2.4 GHz and 5.8 GHz
Gimbal	3-axis
Satellite Systems	GPS/GLONASS
Charging Temperature Range	5°C to 40°C
Live View Quality	1080p
Max Tilt Angle	35°
Transmitter Power (EIRP)	26 dBm (FCC), 20 dBm (CE)
Video Transmission System	DJI Lightbridge
