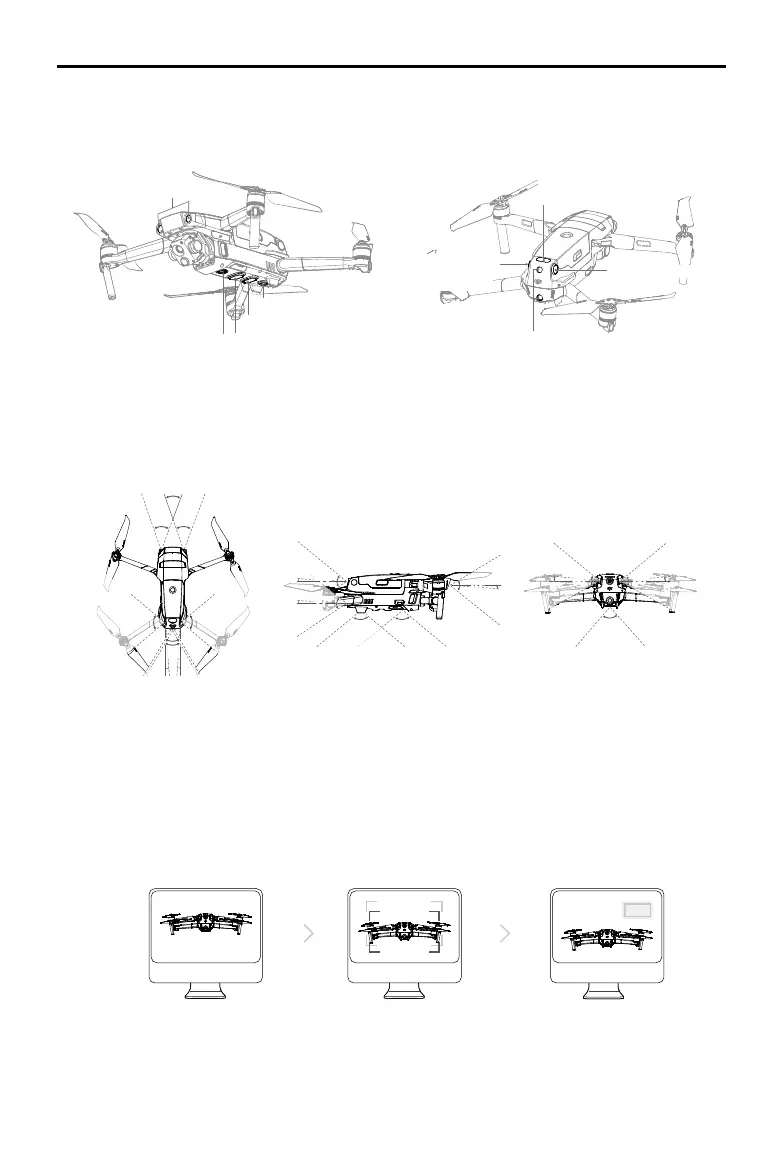

Detection Range
The detection range of the Vision Systems is depicted as followed. Note that the aircraft cannot sense
or avoid the obstacles that are not within detection range.
Calibrating Vision System Cameras
The Vision Systems installed on the aircraft are factory calibrated. If a collision occurs, the aircraft may
need to be calibrated via DJI Pilot or DJI Assistant 2 (Enterprise Series) for Mavic.
The most accurate way to calibrate the Vision System cameras is by using DJI Assistant 2 (Enterprise
Series) for Mavic. Follow the steps below to calibrate the Forward Vision System cameras and repeat
the steps to calibrate other Vision System cameras.
01
将飞行器面向屏幕
02
移动位置以对准方框
03
按照提示旋转飞行器
83°
65°
6°
65°
6°
40° 40°
40°
80°
4°
80°
4°
60°
100°100°
5°
70°
77°
3°
77°
3°
Forward Vision System
Downward Vision System
Downward Vision System
Downward Infrared Sensing System
Auxiliary Bottom Light
Upward Infrared
Sensing System
Backward Vision System
Lateral Vision
System
Lateral Vision System
signal is unavailable. In addition, the auxiliary bottom light located on the bottom of the aircraft
improves visibility for the Downward Vision System in weak light conditions.
Point the aircraft toward the screen Pan and tilt the aircraftAlign the boxes
